FAMILIARIZATION
2.3-8 Lifting Mechanism
1. Raise the platform (refer to Section 3.8-2) until
there is adequate clearance to swing down the
maintenance support (refer to Section 3.12).
• Maintenance Support
- Ensure maintenance support is properly
secured and shows no visible damage.
• Scissor Assembly
- Ensure scissor assembly shows no visible
damage and no signs of deformation in
weldments.
- Ensure all pins are properly secured.
- Ensure cables and wires are properly
routed and shows no signs of wear and/or
physical damage.
• Scissor Bumpers
- Ensure bumpers are secure and shows no
sign of visible damage.
• Rollers
- Ensure rollers are secure and there is no
visible damage.
- Ensure rollers’ path of travel are free from
dirt and obstructions.
• Lift Cylinder(s)
- Ensure each lift cylinder is properly secured,
there are no loose or missing parts and
there is no evidence of damage.
- Ensure all fittings and hoses are properly
tightened and there is no evidence of
hydraulic leakage.
2. Raise the platform until there is adequate
clearance to swing up the maintenance
support into storage bracket. Refer to
Section 3.12.
3. Fully lower the platform.
• Scissor Guards
- Ensure there are no loose or missing
parts and there is no visible damage.

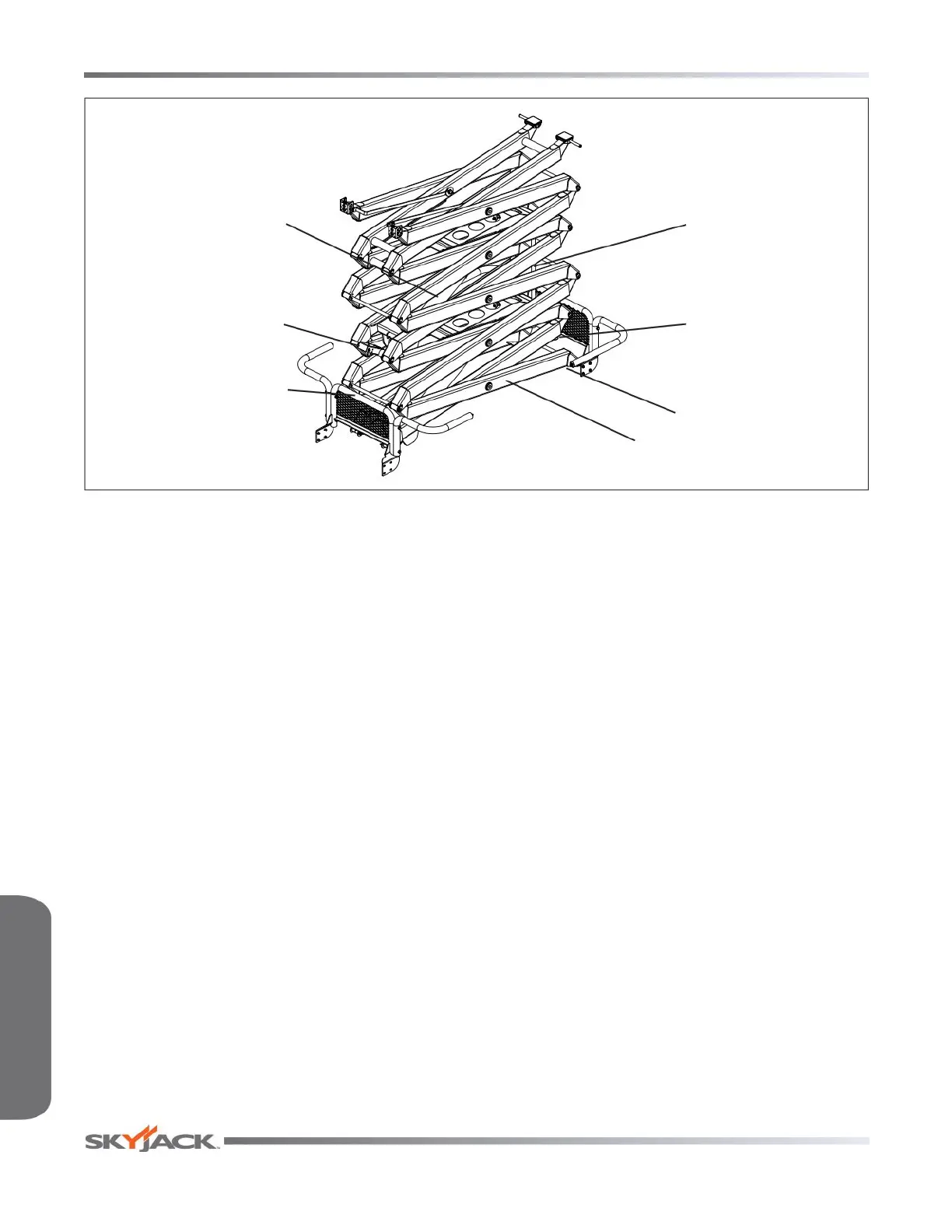

Scissor Assembly
Maintenance
Support
Lift Cylinder
Scissor Bumper
Roller
Limit Switch
Scissor Guard
