Rough Terrain Electric Scissors
December 2007 Page 29
Section 2 - Familiarization Function Tests
It is the responsibility of the operator to read, completely understand and follow all instructions and warnings
contained in this operating manual and on the aerial platform.
FAMILIARIZATION
• Test Load Sensing
WARNING
Be aware of overhead obstructions
or other possible hazards around the
aerial platform when lifting.
1. Pull out platform “ ”emergency stop
button.
Result: Beeper should sound for
approximately 1 second and light should
turn on.
2. Select lift/off/drive switch to “ ” lift
position.
3. Activate and hold “ ” enable trigger
switch.
4. Push controller handle and raise the
platform to an approximate height of 1
meter.
5. Attempt to lower the platform using the
following steps:
a. Push in platform “ ” emergency
stop button.
b. Activate and hold “ ” enable
trigger switch.
c. Pull controller handle and attempt
to lower the platform.
d. Pull out platform “ ”emergency
stop button.
Result: Platform should not
lower and beeper should sound
continuously.
6. Depress “ ” emergency stop button,
release controller handle, pull out “ ”
emergency stop button, activate and
hold “ ” enable trigger switch and pull
controller handle to fully lower.

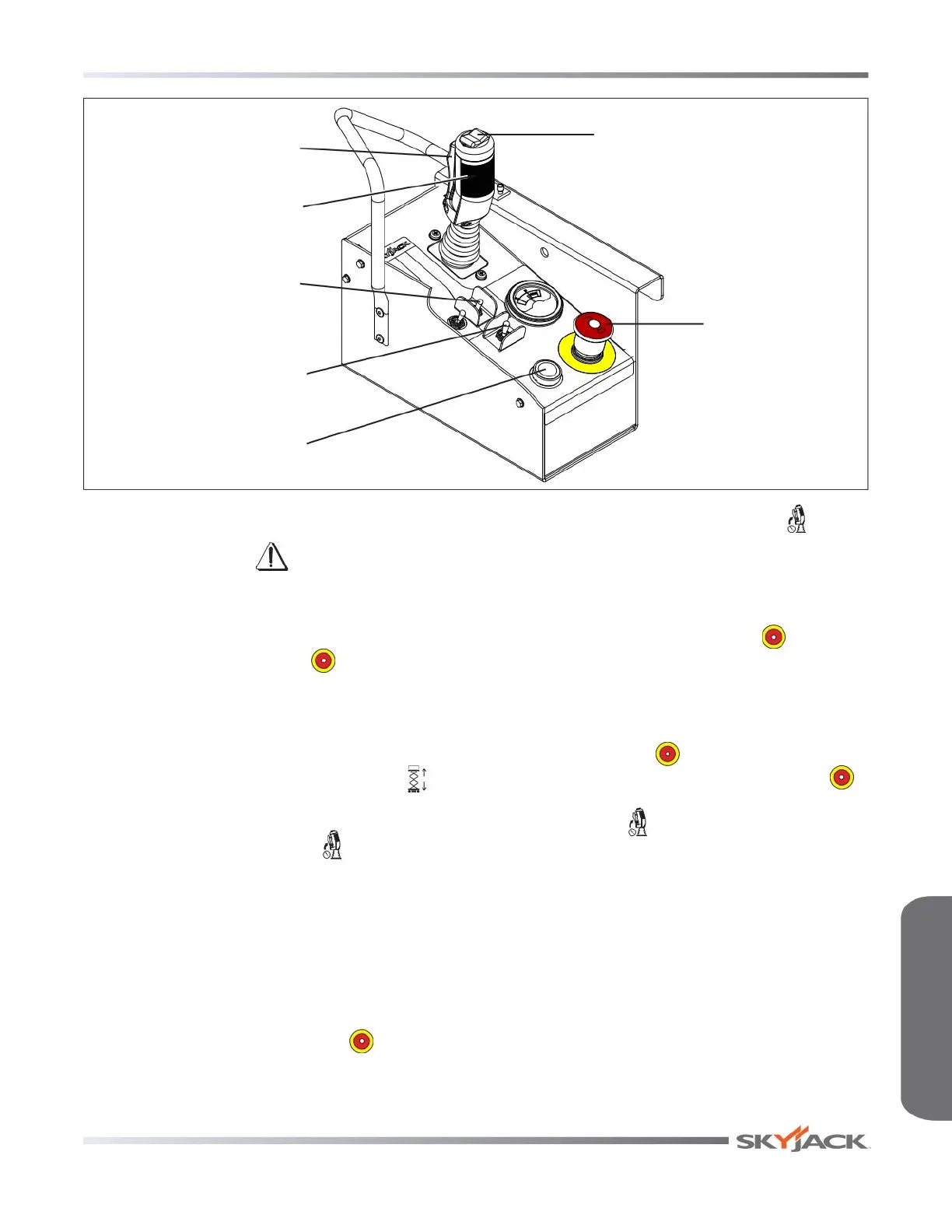

Horn Pushbutton
Lift/Drive Switch
Emergency Stop
Button
Lift/Drive/Steer
Controller
Rocker Switch
Lift/Drive/Steer Enable
Trigger Switch
Inclined Drive/Level
Drive Switch
To Next Page
