Section 2 - Familiarization Control Functions
It is the responsibility of the operator to read, completely understand and follow all instructions and warnings
contained in this operating manual and on the aerial platform.
FAMILIARIZATION
2.2-9 Platform Control Console
This removable control console is mounted at the right
front of the platform. It contains the following controls:
1
2
3
5
4
6
7

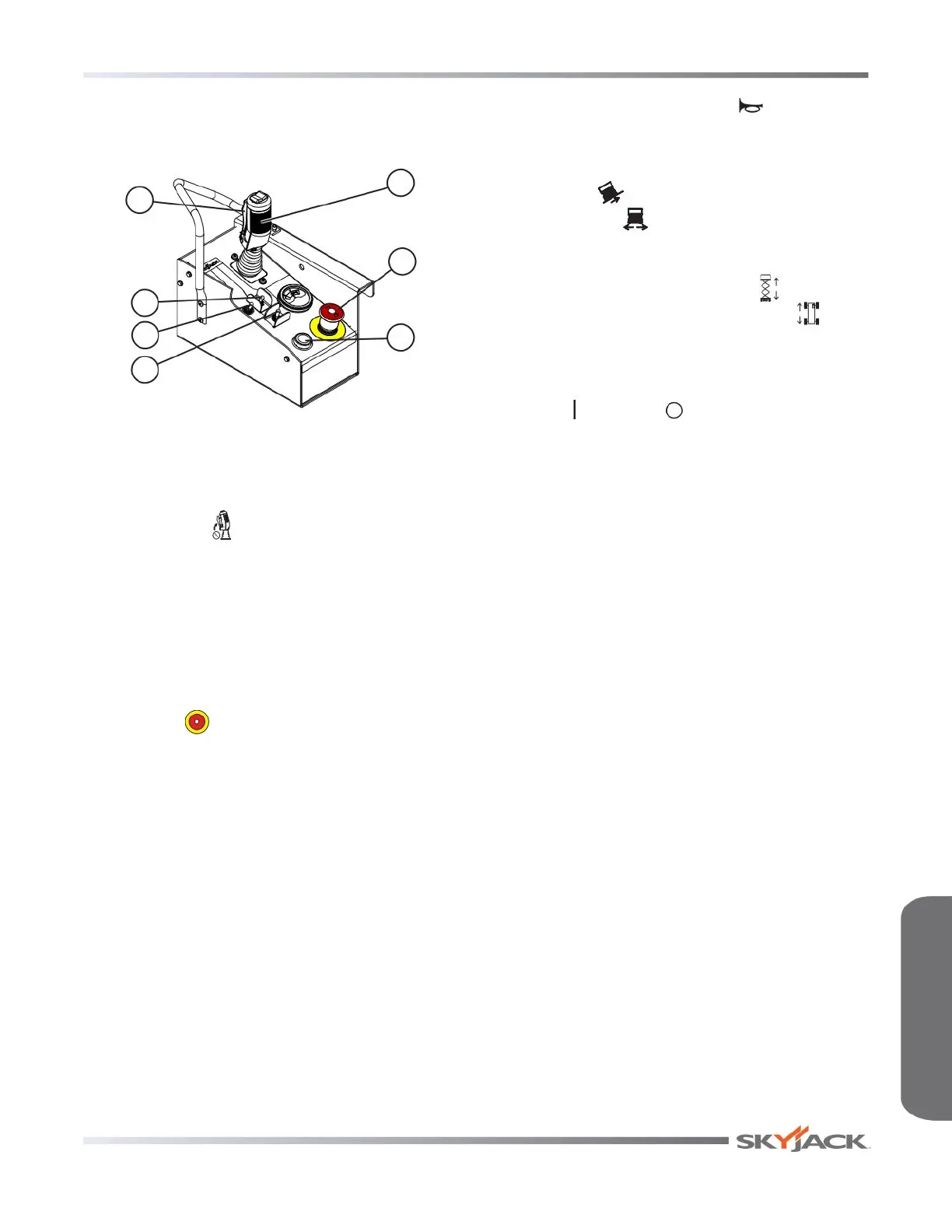

Figure 2-5. Platform Control Console
1. Lift/Drive/Steer Enable Trigger Switch - This
momentary “ ” switch energizes the controller.
It must be held depressed continuously while
engaging either the lift/drive or steer functions.
2. Lift/Drive/Steer Controller - This one-hand lever
controls lift/drive and steer motions. Internal
springs return it to neutral when controller is
released.
3. Emergency Stop Button/Operation Light - This
button “ ”, when depressed, disconnects
power to the control circuit. The operation light
indicates upper control availability. It glows when
both emergency stop buttons on the platform
control console and the base control console are
pulled out.
4. Horn Push Button - This “ ” push button
sounds an automotive-type horn.
5. Inclined Drive/Level Drive Switch - This switch
selects “ ” inclined drive (low speed/high
torque) or “ ” level drive (high speed/low
torque).
6. Lift/Drive Switch - Selecting “ ” lift position
energizes the lift circuit. Selecting “ ” drive
position energizes the drive circuit.
7. Hybrid Power Pack (HPP) On/Off Switch (If
Equipped) - This switch allows the operator to
start “ ” or turn off “ ” the HPP. Refer to Section
3.6-2 for operation.
