Rough Terrain Electric Scissors
Function Tests Section 2 - Familiarization
It is the responsibility of the operator to read, completely understand and follow all instructions and warnings
contained in this operating manual and on the aerial platform.

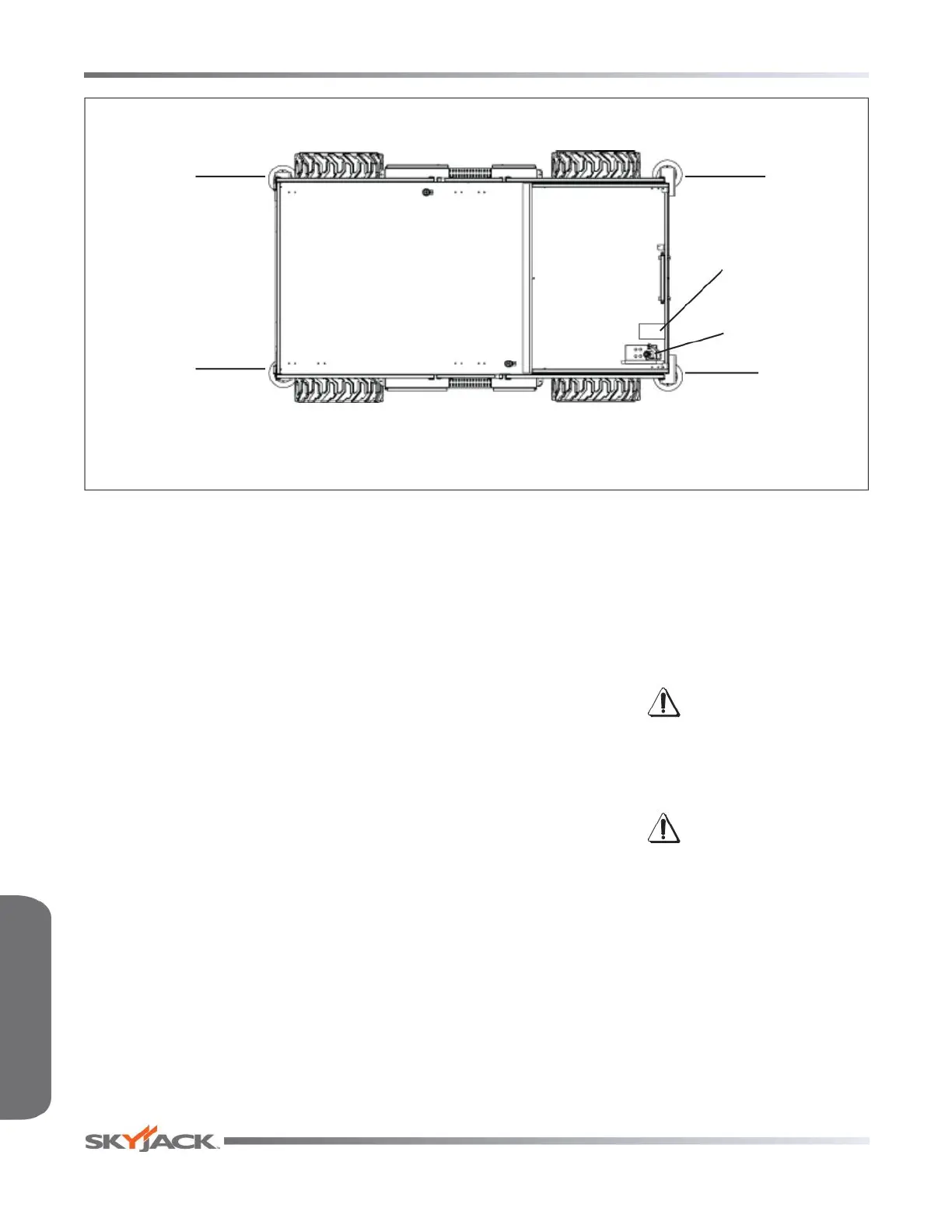

FAMILIARIZATION
Left-Rear
Right-Rear
Right-Front
Left-Front
Platform Control
Console
Outrigger
Control Console
- Attempt to lift the platform 1 foot.
Result: Lift function will not operate.
16. Platform at stowed position.
- Extend each outrigger until it raises the
tires up approximately 2”.
- Retract the Right-Rear Outrigger
until the weight is resting on the
corresponding tire.
- Extend the Left-Front Outrigger until it
makes contact with ground.
- Attempt to lift the platform 1 foot.
Result: Lift function will not operate.
17. Platform at stowed position.
- Extend each outrigger until it raises the
tires up approximately 2”.
- Retract the Left-Rear Outrigger until the
weight is resting on the corresponding
tire.
- Extend the Right-Front Outrigger until
it makes contact with ground.
- Attempt to lift the platform 1 foot.
Result: Lift function will not operate.
18. Extend all four outriggers until all tires are
off the ground and the aerial platform is
levelled.
- Lift the platform to 12 feet.
Result: Lift function will operate.
- Lower the platform from raised height
(12 feet).
Result: Lower function will operate.
WARNING
If any outrigger interlocks fail to operate
in the expected manner, the aerial
platform should be tagged and removed
from operation immediately.
WARNING
Repairs to the aerial platform may
only be made by a qualified service
technician.
