Skyjack SJ6832 RTE Series User Manual

Page 28 December 2007
Rough Terrain Electric Scissors
Function Tests Section 2 - Familiarization
It is the responsibility of the operator to read, completely understand and follow all instructions and warnings
contained in this operating manual and on the aerial platform.
FAMILIARIZATION
• Test Brakes
WARNING
Brakes will engage instantly when you
release the controller handle, causing
aerial platform to stop immediately.
1. Ensure path of intended motion is clear.
2. Activate and hold “ ” enable trigger
switch.
3. Drive aerial platform “ ” forward. Test
brake by releasing controller handle.
Result: Aerial platform should come to
a stop. If aerial platform pulls to one side
while stopping, do not operate aerial
platform until brake adjustments have
been checked.
4. Drive aerial platform “ ” forward. Test
brake again by releasing “ ” enable
trigger switch only.
Result: Aerial platform should come to an
instant and abrupt stop. If aerial platform
does not stop immediately, or if aerial
platform pulls to one side while stopping,
do not operate aerial platform until brake
adjustments have been checked.
• Test Horn
1. Push “ ” horn pushbutton.
Result: Horn should sound.

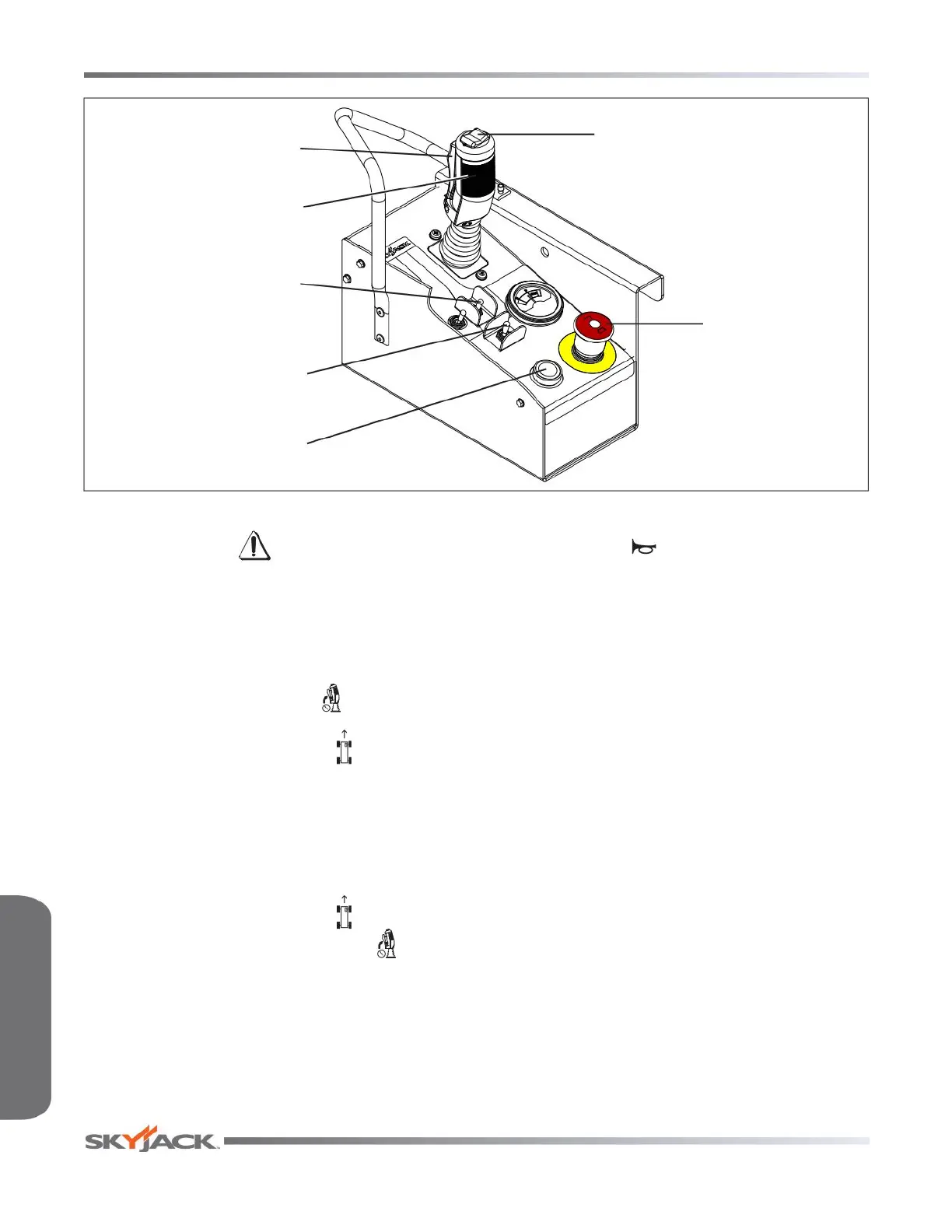

Horn Pushbutton
Lift/Drive Switch
Emergency Stop
Button
Lift/Drive/Steer
Controller
Rocker Switch
Lift/Drive/Steer Enable
Trigger Switch
Inclined Drive/Level
Drive Switch

Skyjack SJ6832 RTE Series Specifications

General

Working Height	38 ft
Platform Height	32 ft
Lift Capacity	1, 000 lbs
Drive Speed	3.5 mph
Gradeability	30%
Drive Speed (Stowed)	3.5 mph
Maximum Working Height	38 ft
Capacity	1, 000 lbs
Overall Width	68 in
Weight	3, 629 kg
Drive Speed (Elevated)	0.8 km/h
Turning Radius (Outside)	4.27 m
Fuel Tank Capacity	45.4 L
Platform Length	2.44 m
Platform Width	0.76 m
Power Source	Diesel / Electric
Overall Length	130 in
Stowed Height (Rails Up)	2.08 m
Stowed Height (Rails Folded)	1.85 m
Turning Radius (Inside)	5 ft
