Rough Terrain Electric Scissors
December 2007 Page 39
Section 3 - Operation Component Identification
3.5-3 Folding Guardrail System
This system, when folded down, reduces the height
of the retracted aerial platform for transporting and
traveling through doorways only. Refer to Section 3.9
for guardrail folding procedure.
WARNING
The scissor assembly must be fully
lowered before raising or lowering the
guardrails.
WARNING
Any lowered guardrail will create a fall
hazard. Remain away from the sides of
the platform while raising or lowering
the guardrails to avoid falling. Refer
to Section 3.9, for guardrail folding
procedure.
1

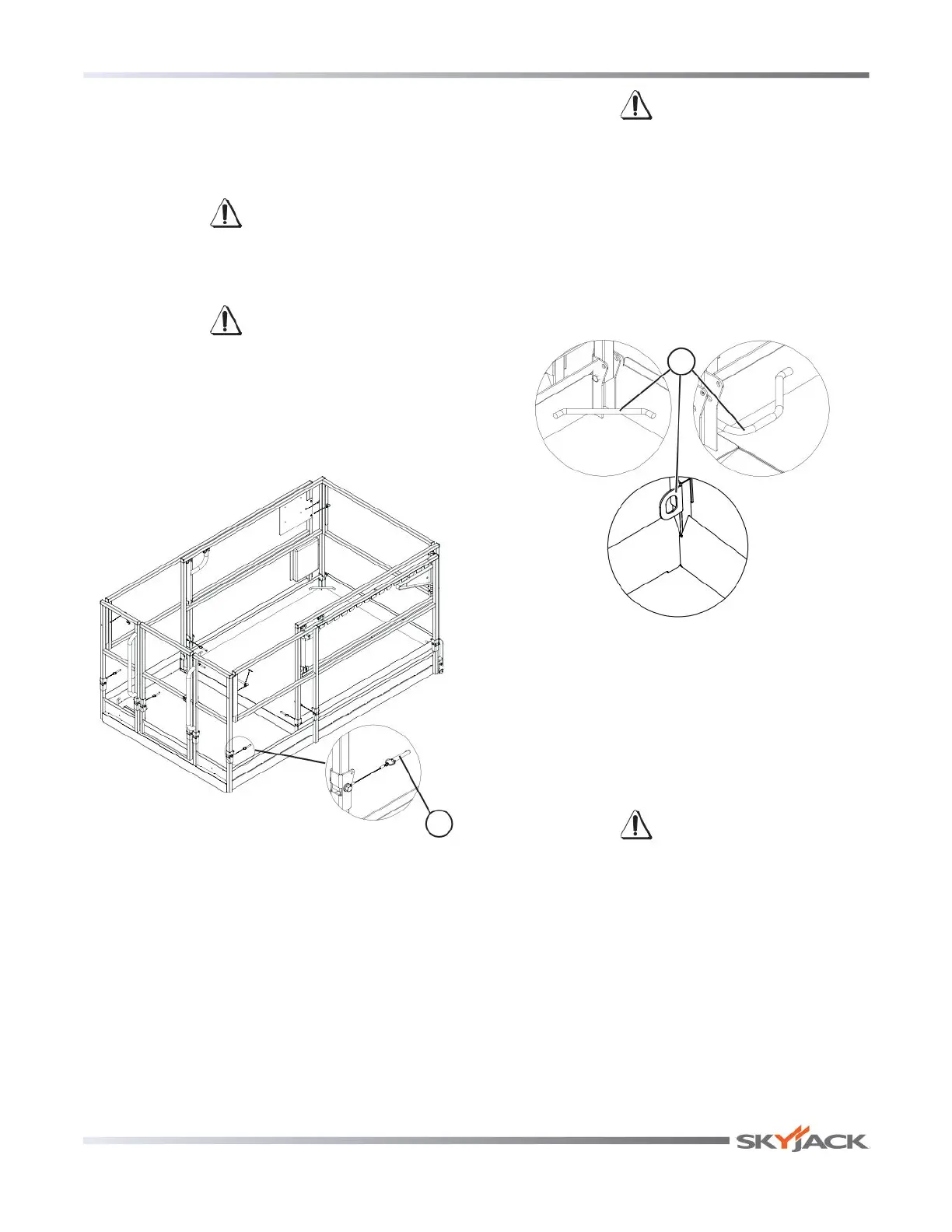

Figure 3-2. Folding Guardrail System
1. Guardrail Locking Pin with Lanyard - This pin is
used to lock the guardrail in place.
WARNING
Before operating this aerial platform
check the guardrail system for loose
or missing locking pins. The guardrail
system must be upright and all pins must
be locked in place.
Death or serious injury could result if
the guardrail system is not upright or
properly locked.
3.5-4 Fall Protection Anchorage
1
Figure 3-3. Fall Protection Anchorage
1. Fall Protection Anchorage - Use this as an
attachment point for a fall restraint system. Do not
attach anchorage connectors to any other point on
the platform. Do not use this to lift, anchor, secure
or support the platform or any other apparatus or
material.
WARNING
The fall protection anchorage is to be
used for restraint, within the limits of the
platform, only.
