Section 2 - Familiarization Function Tests
It is the responsibility of the operator to read, completely understand and follow all instructions and warnings
contained in this operating manual and on the aerial platform.
FAMILIARIZATION

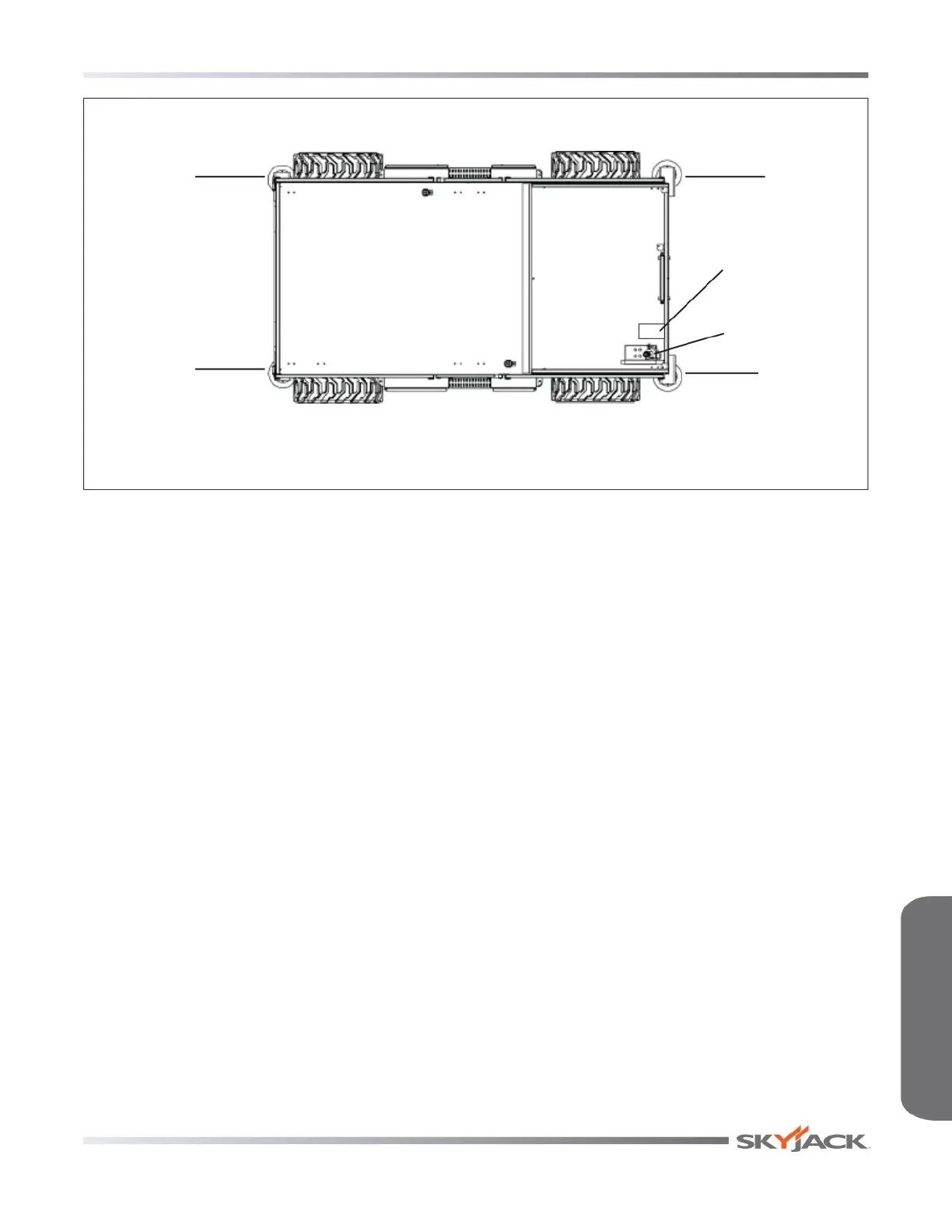

Left-Rear
Right-Rear
Right-Front
Left-Front
Platform Control
Console
Outrigger
Control Console
- Attempt to partially extend Right-Rear
Outrigger (approximately 4”).
Result: Outrigger will not extend.
- Attempt to partially extend Left-Rear
Outrigger (approximately 4”).
Result: Outrigger will not extend.
11. Lower the platform to stowed position.
Result: Lower function will operate.
12. Raise the platform 1 foot from stowed
position and partially extend Left-Front
Outrigger (approximately 4”).
- Attempt to lift the platform.
Result: Lift function will not operate.
- Attempt to drive the aerial platform.
Resu lt: D rive f unction will n ot
operate.
- Attempt to lower the platform.
Result: Lower function will operate.
13. Platform at stowed position.
- With Left-Front Outrigger partially
extended, attempt to lift the platform.
Result: Lift function will not operate.
- With Right-Front Outrigger partially
extended, attempt to lift the platform.
Result: Lift function will not operate.
- With Right-Rear Outrigger partially
extended, attempt to lift the platform.
Result: Lift function will not operate.
- With Left-Rear Outrigger partially
extended, attempt to lift the platform.
Result: Lift function will not operate.
14. Platform at stowed position.
- Extend each outrigger until it raises the
tires up approximately 2”.
- Retract the Left-Front Outrigger until the
weight is resting on the corresponding
tire.
- Extend the Right-Rear Outrigger until it
makes contact with ground.
- Attempt to lift the platform 1 foot.
Result: Lift function will not operate.
15. Platform at stowed position.
- Extend each outrigger until it raises the
tires up approximately 2”.
- Retract the Right-Front Outrigger
until the weight is resting on the
corresponding tire.
- Extend the Left-Rear Outrigger until it
makes contact with ground.

Skyjack SJ6832 RTE Series Specifications

General

Working Height	38 ft
Platform Height	32 ft
Lift Capacity	1, 000 lbs
Drive Speed	3.5 mph
Gradeability	30%
Drive Speed (Stowed)	3.5 mph
Maximum Working Height	38 ft
Capacity	1, 000 lbs
Overall Width	68 in
Weight	3, 629 kg
Drive Speed (Elevated)	0.8 km/h
Turning Radius (Outside)	4.27 m
Fuel Tank Capacity	45.4 L
Platform Length	2.44 m
Platform Width	0.76 m
Power Source	Diesel / Electric
Overall Length	130 in
Stowed Height (Rails Up)	2.08 m
Stowed Height (Rails Folded)	1.85 m
Turning Radius (Inside)	5 ft
