Visual & Maintenance Inspection Section 2 - Familiarization
It is the responsibility of the operator to read, completely understand and follow all instructions and warnings
contained in this operating manual and on the aerial platform.
FAMILIARIZATION
Steer Cylinder Assembly
- Ensure steer cylinder assembly is
properly secured, there are no loose
or missing parts, all fittings and hoses
are properly tightened and there is no
evidence of hydraulic leakage.
• Splitter Manifold
- Ensure all fittings and hoses are properly
tightened and there is no evidence of
hydraulic leakage.
• Tie Rod
- Ensure there are no loose or missing
parts, tie rod end studs are locked and
there is no visible damage.
• Emergency Lowering Access Rod
- Ensure rod is properly secured and there
is no visible damage.
• Ladder
- Ensure there are no loose or missing
parts and there is no visible damage.
• Outriggers (If Equipped)
- Ensure there are no loose or missing
parts and there is no visible damage.
• Hybrid Power Pack (HPP) (If Equipped)
- Ensure there are no loose or missing
parts and there is no visible damage.
Wheel/Tire
Assembly
Steer Cylinder
Assembly
Tie Rod

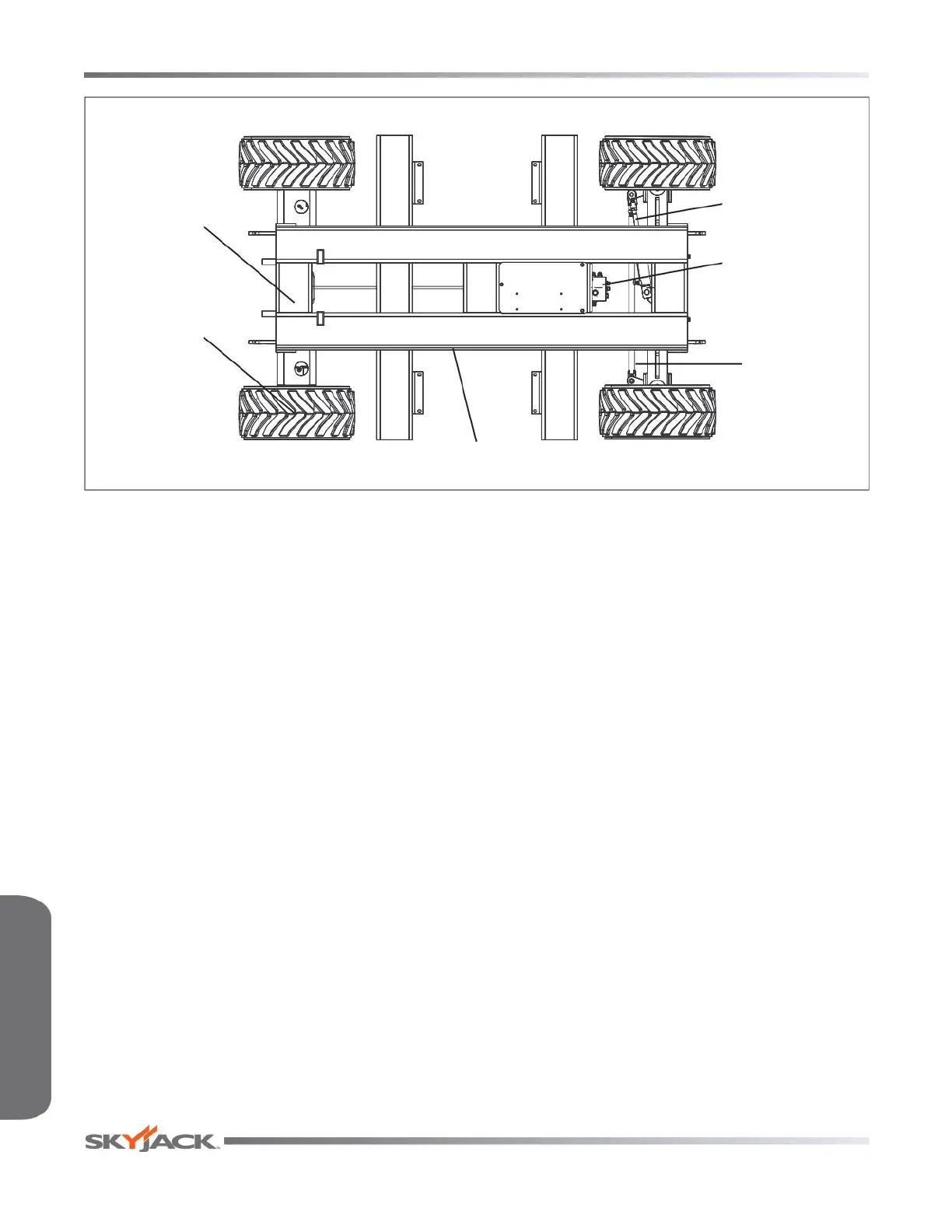

Overhead View
Base
Weldment
Splitter Manifold
Emergency Lowering
Access Rod

Skyjack SJ6832 RTE Series Specifications

General

Working Height	38 ft
Platform Height	32 ft
Lift Capacity	1, 000 lbs
Drive Speed	3.5 mph
Gradeability	30%
Drive Speed (Stowed)	3.5 mph
Maximum Working Height	38 ft
Capacity	1, 000 lbs
Overall Width	68 in
Weight	3, 629 kg
Drive Speed (Elevated)	0.8 km/h
Turning Radius (Outside)	4.27 m
Fuel Tank Capacity	45.4 L
Platform Length	2.44 m
Platform Width	0.76 m
Power Source	Diesel / Electric
Overall Length	130 in
Stowed Height (Rails Up)	2.08 m
Stowed Height (Rails Folded)	1.85 m
Turning Radius (Inside)	5 ft
