Skyjack SJ6832 RTE Series User Manual

Page 78 December 2007
Rough Terrain Electric Scissors
Labels Section 5
1213
14
13
12
14
Top View
15
16

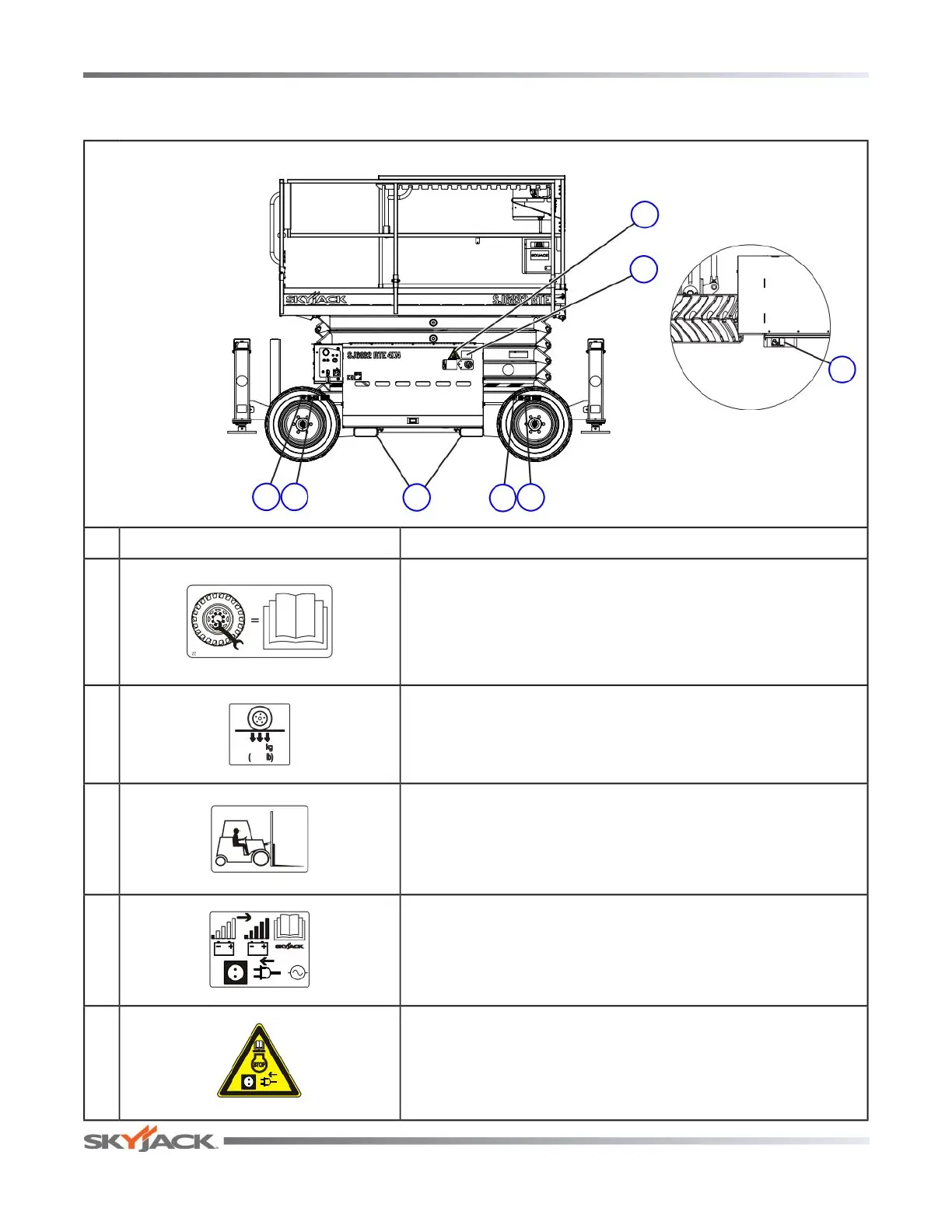

No. Label Pictorial Description
12
Wheel Specifications
Refer to manual for wheel type, offset, pressure and torque.
13
Wheel Load
Indicates rated wheel load.
14
Forklift Lifting Location
Insert fork fully into forklift lifting location to lift aerial platform.
15
Battery Charging Connection
Refer to Operating manual.
Connect AC supply here to charge batteries.
16
AC Battery Charging - HPP (If Equipped)
Refer to Operating manual.
Turn off HPP before connecting AC supply.
Labels - Model 6832RTE
Right Side (Continued)

Skyjack SJ6832 RTE Series Specifications

General

Working Height	38 ft
Platform Height	32 ft
Lift Capacity	1, 000 lbs
Drive Speed	3.5 mph
Gradeability	30%
Drive Speed (Stowed)	3.5 mph
Maximum Working Height	38 ft
Capacity	1, 000 lbs
Overall Width	68 in
Weight	3, 629 kg
Drive Speed (Elevated)	0.8 km/h
Turning Radius (Outside)	4.27 m
Fuel Tank Capacity	45.4 L
Platform Length	2.44 m
Platform Width	0.76 m
Power Source	Diesel / Electric
Overall Length	130 in
Stowed Height (Rails Up)	2.08 m
Stowed Height (Rails Folded)	1.85 m
Turning Radius (Inside)	5 ft
