Skyjack SJ6832 RTE Series User Manual

Page 80 December 2007
Rough Terrain Electric Scissors

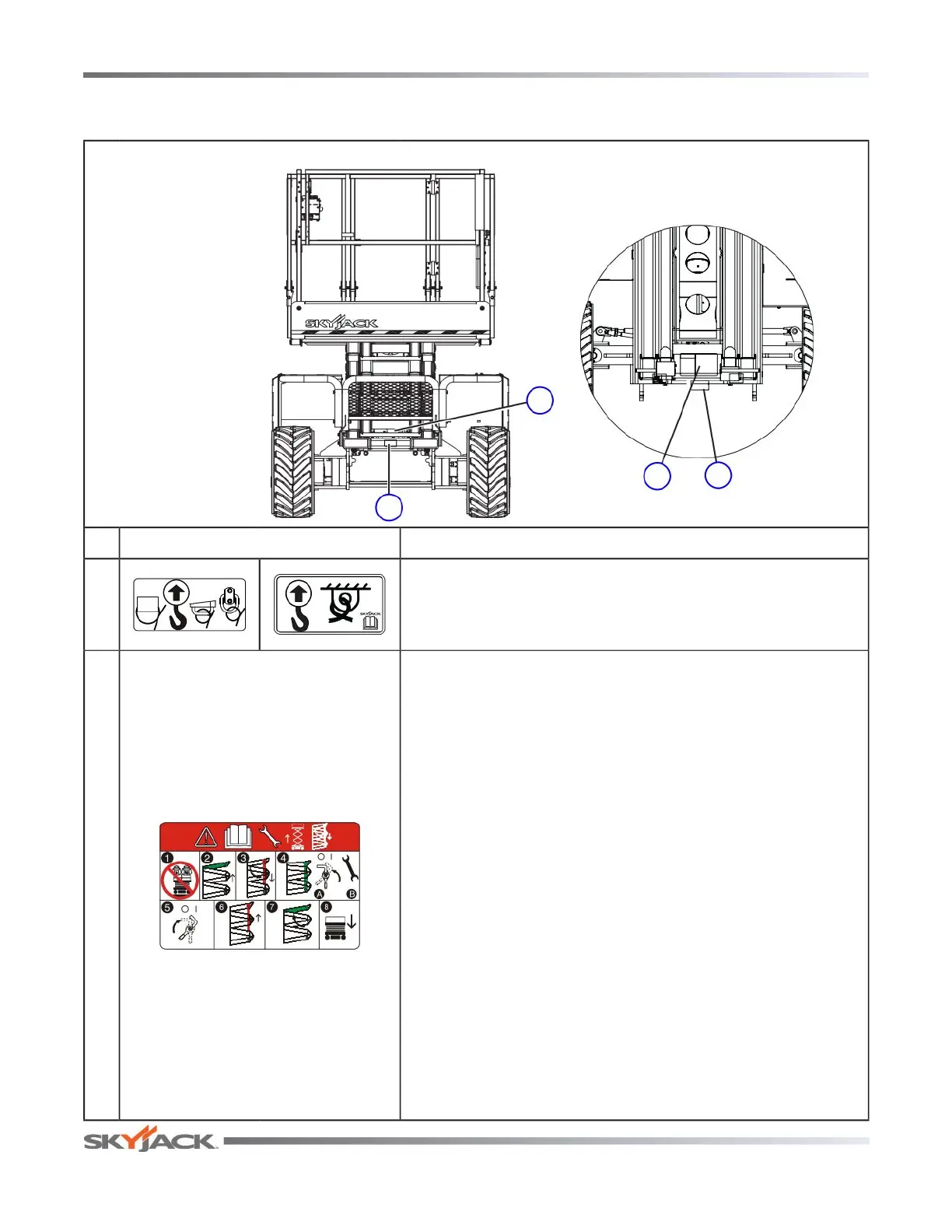

Labels Section 5
No. Label Pictorial Description
6
TM
Lift and Tie Down Points
Only use these points for lifting or tying down.
7
How to engage maintenance support for inspection or
maintenance. Refer to Operating manual.
1. Remove all material from platform.
2. Raise platform until there is adequate clearance to swing down
maintenance support.
3. Swing maintenance support down from storage bracket
into a vertical position. Lower platform until the bottom end of
maintenance support rests on the lower cross bar.
4. Maintenance support is now secured.
(A) Turn main power disconnect switch to off position.
(B) Perform inspection/maintenance.
5. Turn main power disconnect switch to on position.
6. Raise platform until there is adequate clearance to swing up
maintenance support.
7. Swing maintenance support up and place into storage bracket.
8. Ensure platform is fully lowered.
Front Side (Continued)
6
6
7
Top View
7
Labels - Model 6832RTE

Skyjack SJ6832 RTE Series Specifications

General

Working Height	38 ft
Platform Height	32 ft
Lift Capacity	1, 000 lbs
Drive Speed	3.5 mph
Gradeability	30%
Drive Speed (Stowed)	3.5 mph
Maximum Working Height	38 ft
Capacity	1, 000 lbs
Overall Width	68 in
Weight	3, 629 kg
Drive Speed (Elevated)	0.8 km/h
Turning Radius (Outside)	4.27 m
Fuel Tank Capacity	45.4 L
Platform Length	2.44 m
Platform Width	0.76 m
Power Source	Diesel / Electric
Overall Length	130 in
Stowed Height (Rails Up)	2.08 m
Stowed Height (Rails Folded)	1.85 m
Turning Radius (Inside)	5 ft
