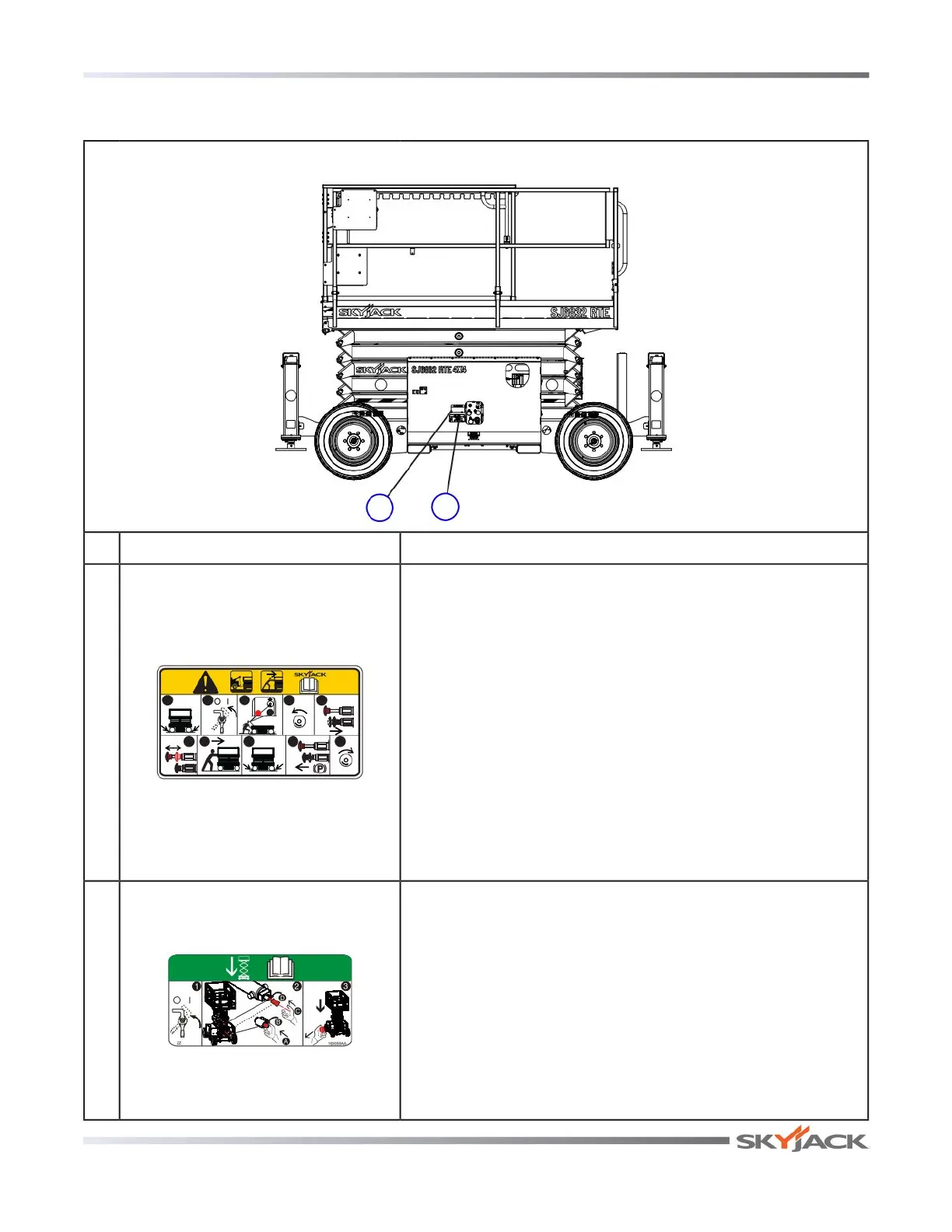

Rough Terrain Electric Scissors
December 2007 Page 83
Section 5 Labels
128226AA
WA
No. Label Pictorial Description
8
10-30
1
6
2 4
8 9
3
10
7
TM
5
Winching/Towing/Pushing Procedure
Refer to Operating manual.
1. Block or chock wheels to prevent aerial platform from rolling.
2. Turn main power disconnect switch to off position.
3. Locate free-wheeling valve, brake valve, and pump.
4. Open free-wheeling valve by turning it counterclockwise.
5. Push in black knob.
6. Pump by pushing red knob in and out until firm resistance is
felt. Brake is now released.
7. Push/tow/winch to desired location.
8. Block or chock wheels to prevent aerial platform from rolling.
9. Reset brake by pulling out black knob.
10. Close free-wheeling valve by turning it clockwise.
9
Emergency Lowering Procedure
Refer to Operating manual.
1. Turn main power disconnect switch to off position.
2. To open the lift cylinder holding valves located at the bottom of
each cylinder:
if higher reach required, use emergency lowering rod
located on the top of the base to:
(A) push
(B) turn knurled knob counterclockwise.
3. To lower the platform, pull out emergency lowering valve
located on the outside of the motor/hydraulic tray.
Left Side (Continued)
9
8
Labels - Model 6832RTE
