Commissioning SMA Solar Technology AG

38 SWebBox-BEN111033 User Manual

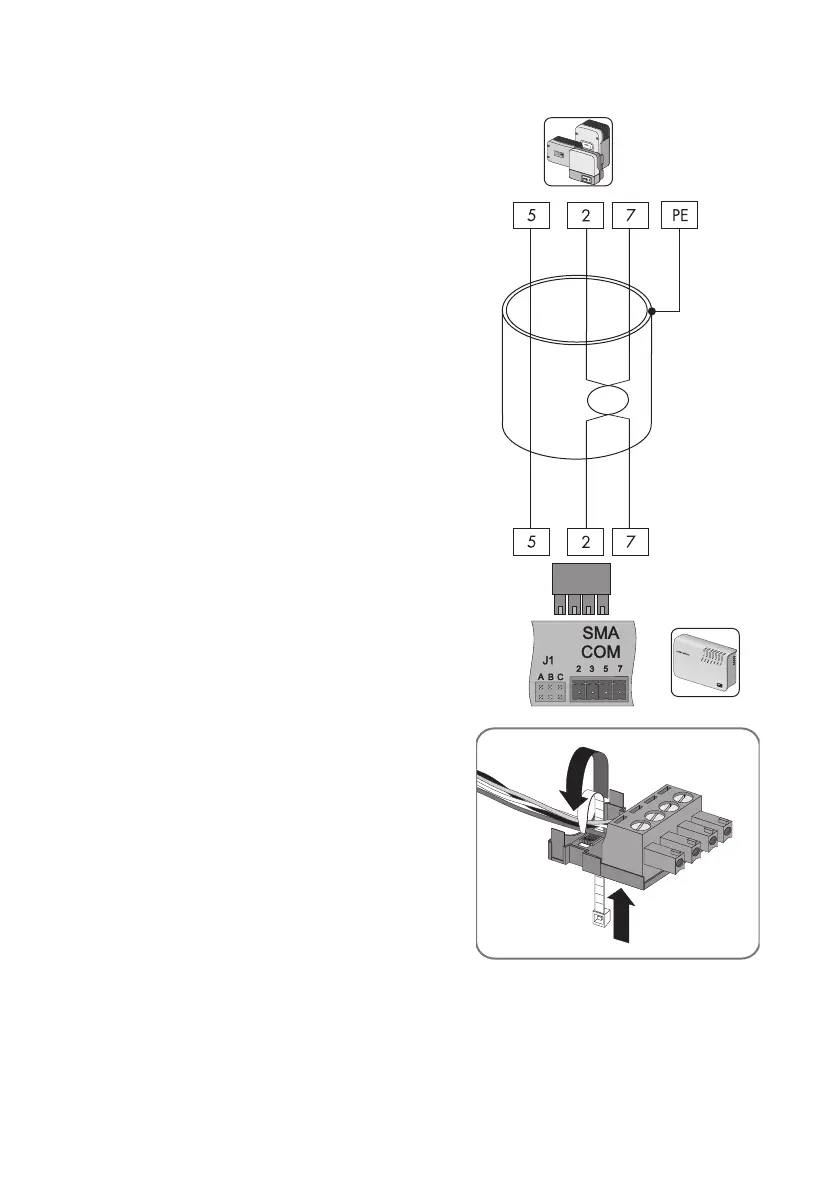

5. Connect the insulated conductors to the plug

connector. Observe the configurations of the

insulated conductors in the RS485 communication

bus.

6. Shorten unused insulated conductors until flush with

cable sleeve.

7. Place the plug on the bottom half of the cable

enclosure and use the cable tie to fix the cable

jacket to the bottom half of the cable enclosure.
