SMART KAPP-IQ65-V2 Installation And Maintenance Guide

CHAPTER 3
CONNECTING POWER AND DEVICES
28 smarttech.com/kb/171167
Connector reference
iQ appliance

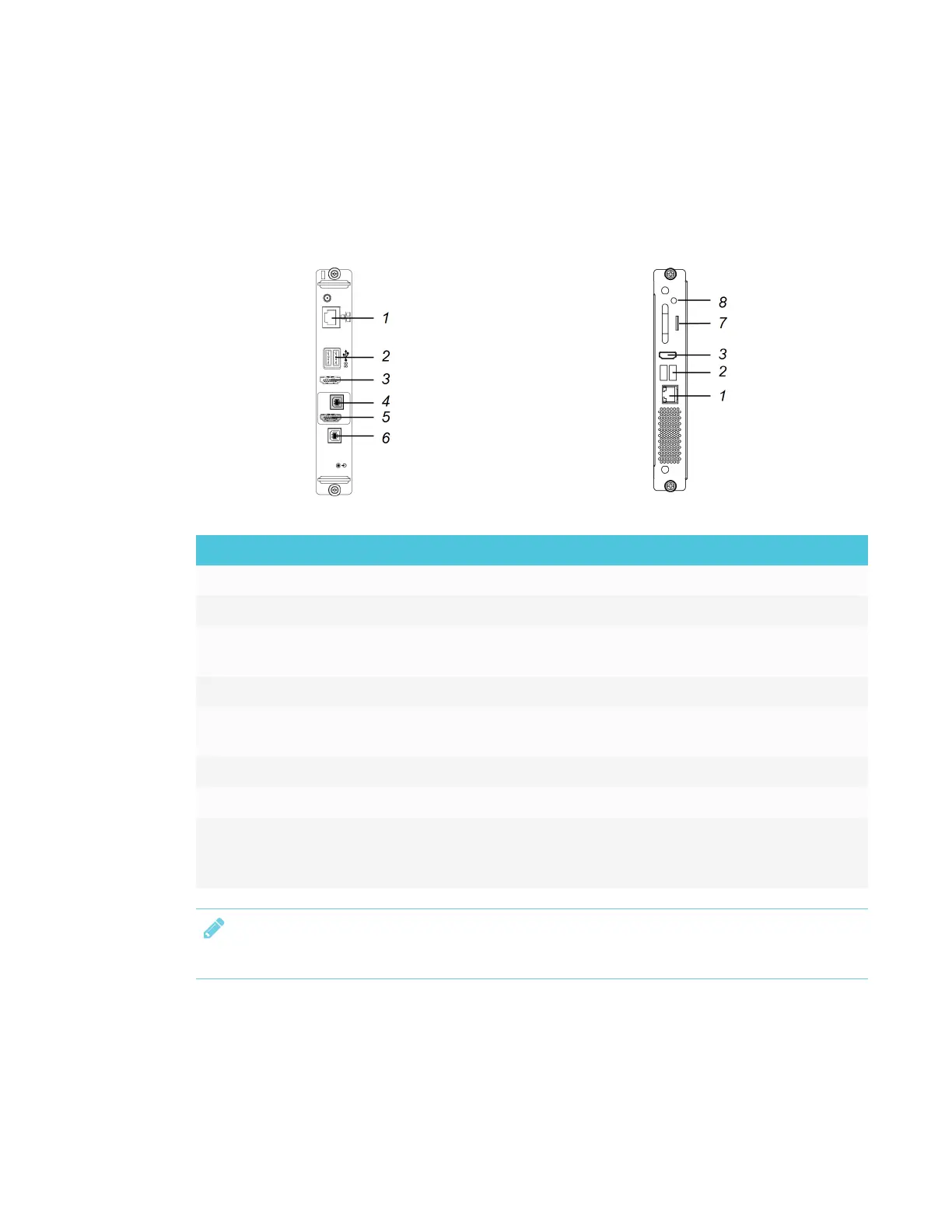

The following diagram and table present the connectors on the iQ appliance:
AM30
AM40
No. Connector Connects to Notes
1 RJ45 Network See page23.
2 USB Type-A (×2) Supported peripherals [N/A]
3 HDMI out External monitor This connector is HDCP-
encrypted HDMI.
4 USB Type-B OPS/HDMI input (touch) See page25.
5 HDMI in OPS/HDMI input
(videoandaudio)
See page25.
6 USBType-B [N/A] This connector is a service port.
7 Micro SD [N/A] This connector is a service port.
8 LED [N/A] LED lights green when the iQ
appliance is inserted in the
accessory slot and turned on.
NOTE
Older models of the iQ appliance (AM30)don’t have all the connectors.
