No.
Process
Description
Panel Display
detailed setting navigation screen, and select
Return throught or , and then press
to return to Timer Running Action confirmation
screen.
5
Timer
Running
Action
Start/Close
Select 01 Mode Start via or key and
press to confirm the action. Controller will
jump to the 2
nd
page of main screen, at this point,
Aoto Mode (Daily) start.
Select 02 Mode Close via or keys and
press to confirm the action. Controller will
jump to the 2
nd
page of main screen, at this point,
Aoto Mode (Daily) closed.

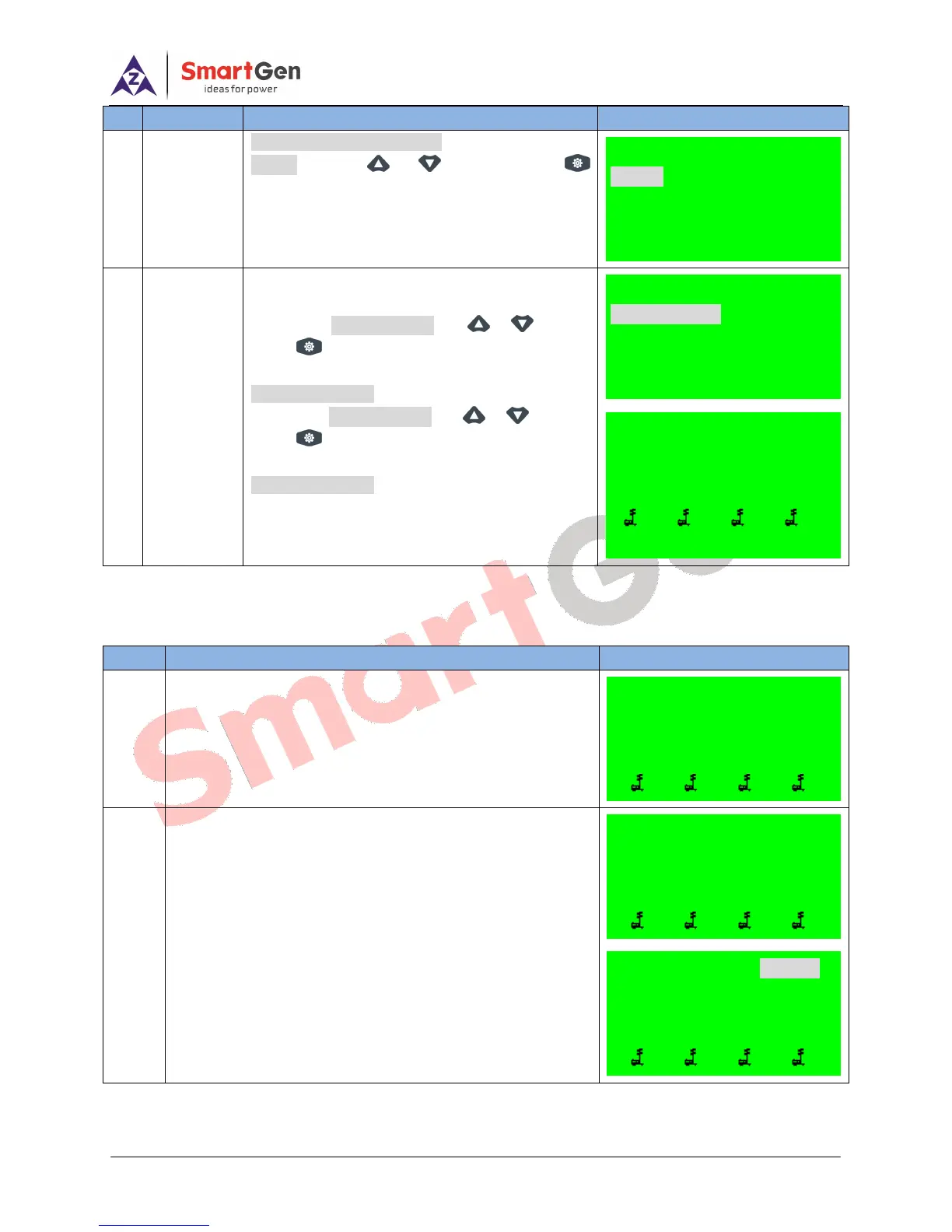

4.4.2 SCHEDULED START OPERATION PROCESS
Table 7 – Scheduled Start/Stop Operation
No.
Operation Process
Panel Display
1
Configure the controller as scheduled start mode and
choose ―Timer Mode (00 Daily)‖, and start time set as 18:30,
continuous running time (hours run) set as 12:00(12hours).
2
When there are 10s left from start time, audible alarm
relay is active (if configured, when start time is up, audible
alarm relay will stop output). When start time is up and start
remaining time is more than 0s, light tower set begin cranking.
Continuous running countdown will be displayed on the first
line.
Time Left 11:59:55
Start Time 18:30:00
Current Time 18:30:04
Cranking 2s
1 2 3 4
Auto Timer Mode (Daily)
Start Time 18:30:00
Current Time 18:29:50
Standby
1 2 3 4
Auto Timer Mode (Daily)
Start Time 18:30:00
Current Time 18:29:45
Standby
1 2 3 4
Auto Timer Mode (Daily)
Start Time 18:30:00
Current Time 18:29:45
Standby
1 2 3 4
Timer Running Action Return
01 Mode Start
02 Mode Close
03 Timer Configure
Timer Running Action
Return
01Timer Mode Selection
02Auto Run Timer Set
