ALC404 LIGHTING TOWER CONTROLLER USER MANUAL

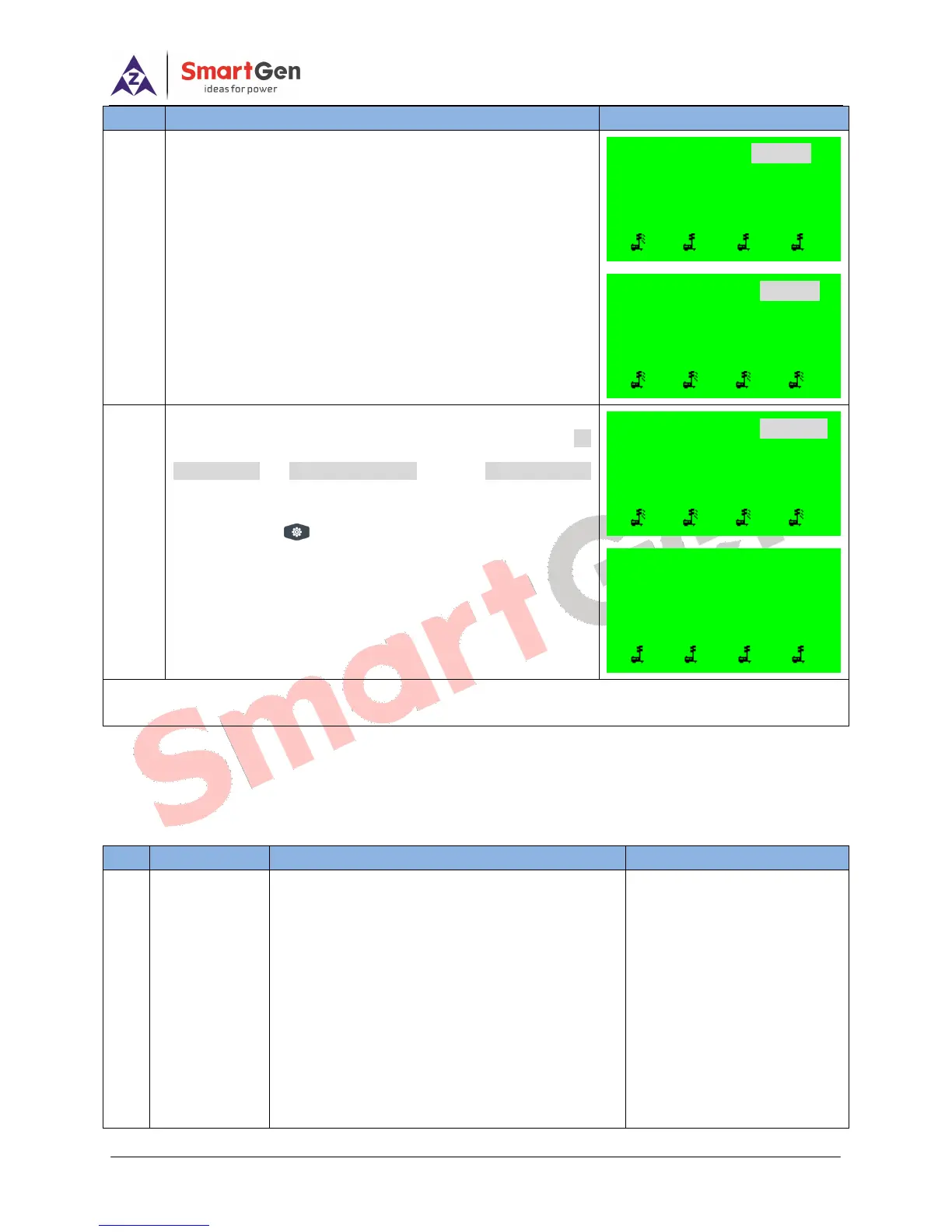

ALC404 Lighting Tower Controller 2018-11-06 Version 1.1 Page 16 of 83
No.
Operation Process
Panel Display
3
If engine speed, generator voltage and frequency has
reached on-load requirements (speed ≥ on-load speed,
voltage ≥ on-load voltage and frequency ≥ on-load
frequency), all the lights will illuminate in proper order and the
illumination interval delay is 2s (can be set as 1s ~300s).
4
When ―stop delay‖ time is 00:00:00 manually select 02
Mode Close in Auto Timer Mode screen (01 Mode Start
must be reselect if another time scheduled start is needed)，
and then press to confirm the act. then 1#～#4 lights
will off in proper order and the extinguishing interval delay can
be set as 1s～300s. The light tower set begin stopping when
all the lights off.
Remark: The auto timer mode will be canceled automatically when select other auto start mode! if select Auto Timer
Mode(Daily), lighting tower set will be auto started everyday at the pre-set time.
4.5 SUNRISE/SUNSET START OPERATION
4.5.1 SUNRISE/SUNSET START MODE SETTINGS
Table 8 – Sunrise/Sunset Start Operation
No.
Process
Description
Panel Display
1
Download city
info via PC
software
Users should connect PC and ALC400
controller using USB communication line and test
ALC404 software, procedures are as follows:
Open test software—edit config.—set
sunrise/sunset—select city/user-defined city
information (longitude, latitude and time zone) —
download PC software information to the
controller. After download finished, choose any
/
Auto Timer Mode (Daily)
Start Time 18:30:00
Current Time 06:30:39
Cooling Delay 29s
1 2 3 4
Time Left 00:00:00
Start Time 18:30:00
Current Time 06:30:00
4# Light Off 2s
1 2 3 4
Time Left 11:58:48
Start Time 18:30:00
Current Time 18:31:11
Gens Normal Running
1 2 3 4
Time Left 11:58:57
Start Time 18:30:00
Current Time 18:31:02
3# Light On 2s
1 2 3 4
