ALC404 LIGHTING TOWER CONTROLLER USER MANUAL
ALC404 Lighting Tower Controller 2018-11-06 Version 1.1 Page 79 of 83
11 TYPICAL WIRING DIAGRAMS

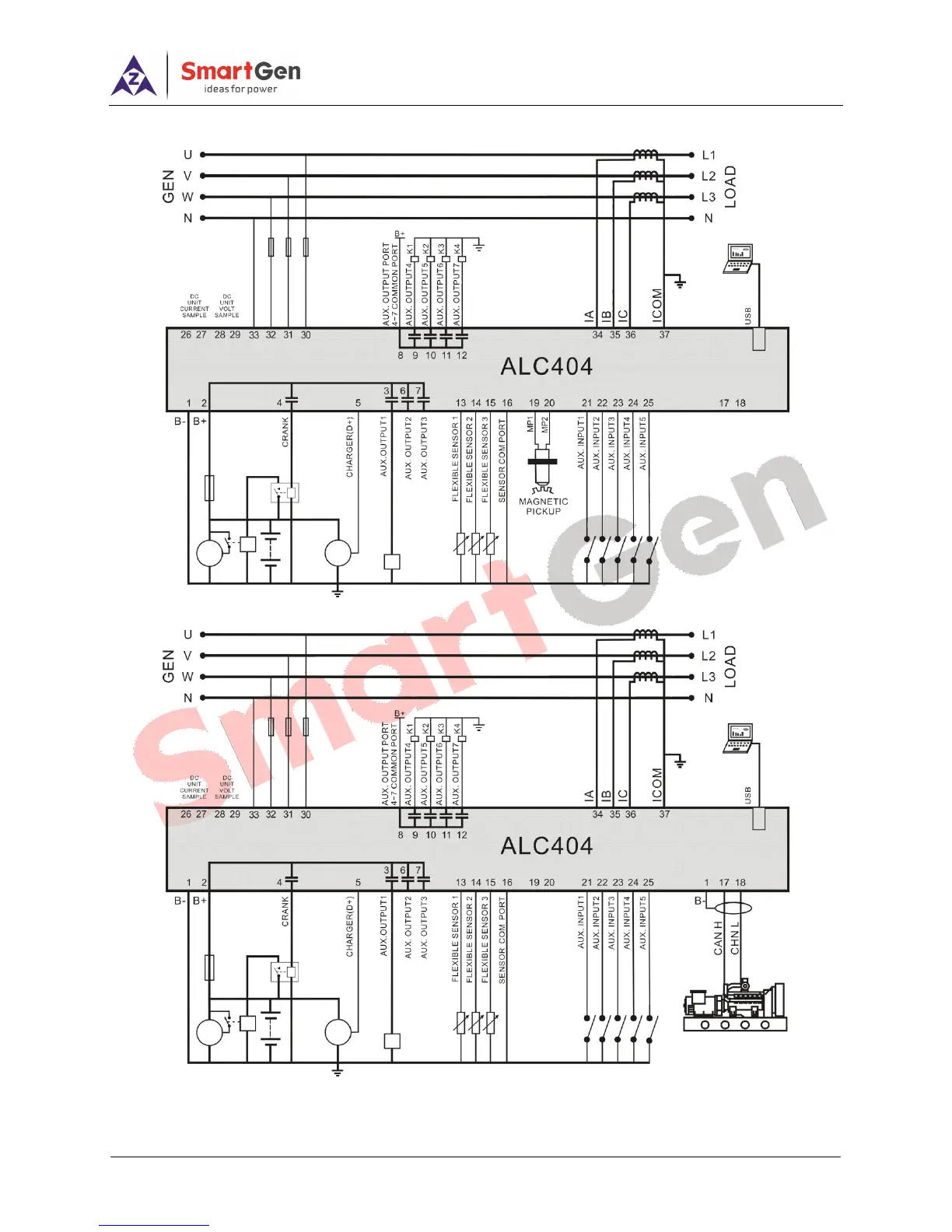

Fig. 4 – ALC404 Controls AC Non-EFI Engine Set Application (3P4W)
Fig. 5 – ALC404 Controls AC EFI Engine Set Application (3P4W)
