No.
Process
Description
Panel Display
6
Timer
Runnning
Action
Start/Close
Select 01 Mode Start via or key and
press to confirm the action. Controller will
jump to the 2
nd
page of main screen, at this point,
Sunrise/set Mode set completely.
Select 02 Mode Close via or keys and
press to confirm the action. Controller will
jump to the 2
nd
page of main screen, at this point,
Sunrise/set Mode closed.

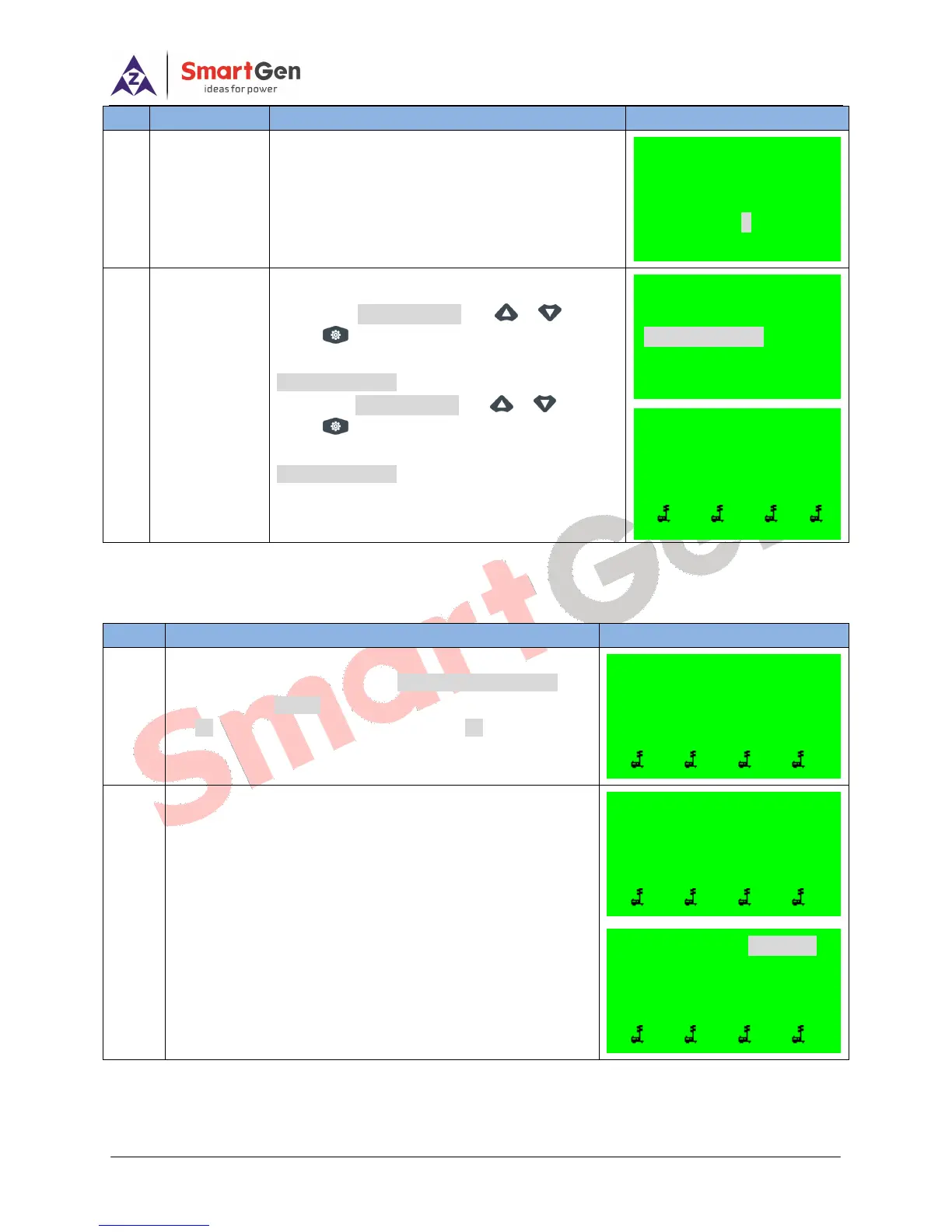

4.5.2 SUNRISE/SUNSET START/STOP OPERATION PROCESS
Table 9 – Sunrise/Sunset Start/Stop Operation Process
No.
Operation Process
Panel Display
1
Configure the controller as Auto Sunrise/set Mode, city
information as Beijing via PC sofware, sunset start time delay
as +0min and sunrise stop time delay as +0min. The actual
start ime is 16:55:00 and stop time is 07:06:00.
2
When there are 10s left from start time (start time can be
configured via PC software), audible alarm relay is active (if
configured, when start time is up, audible alarm relay will stop
output). When start time is up, light tower set begin cranking.
Stop time will be displayed on the first line.
Auto Sunrise/set Mode
Start Time 16:55:00
Current Time 16:54:50
Standby
1 2 3 4
Stop Time 07:06:00
Start Time 16:55:00
Current Time 16:55:00
Fuel Output Delay 1s
1 2 3 4
Auto Sunrise/set Mode
Start Time 16:55:00
Current Time 16:54:50
Standby
1 2 3 4
Auto Sunrise/set Mode
Start Time 16:55:00
Current Time 16:54:50
Standby
1 2 3 4
04 Sunrise Time Delay
CurrentVal +00000min
+00000
Sunrise/set Action
Return
01 Mode Start
02 Mode Close
03 Sunset Time Delay
