4.1.3. Modules
The SI Unit can consist of the following modules.

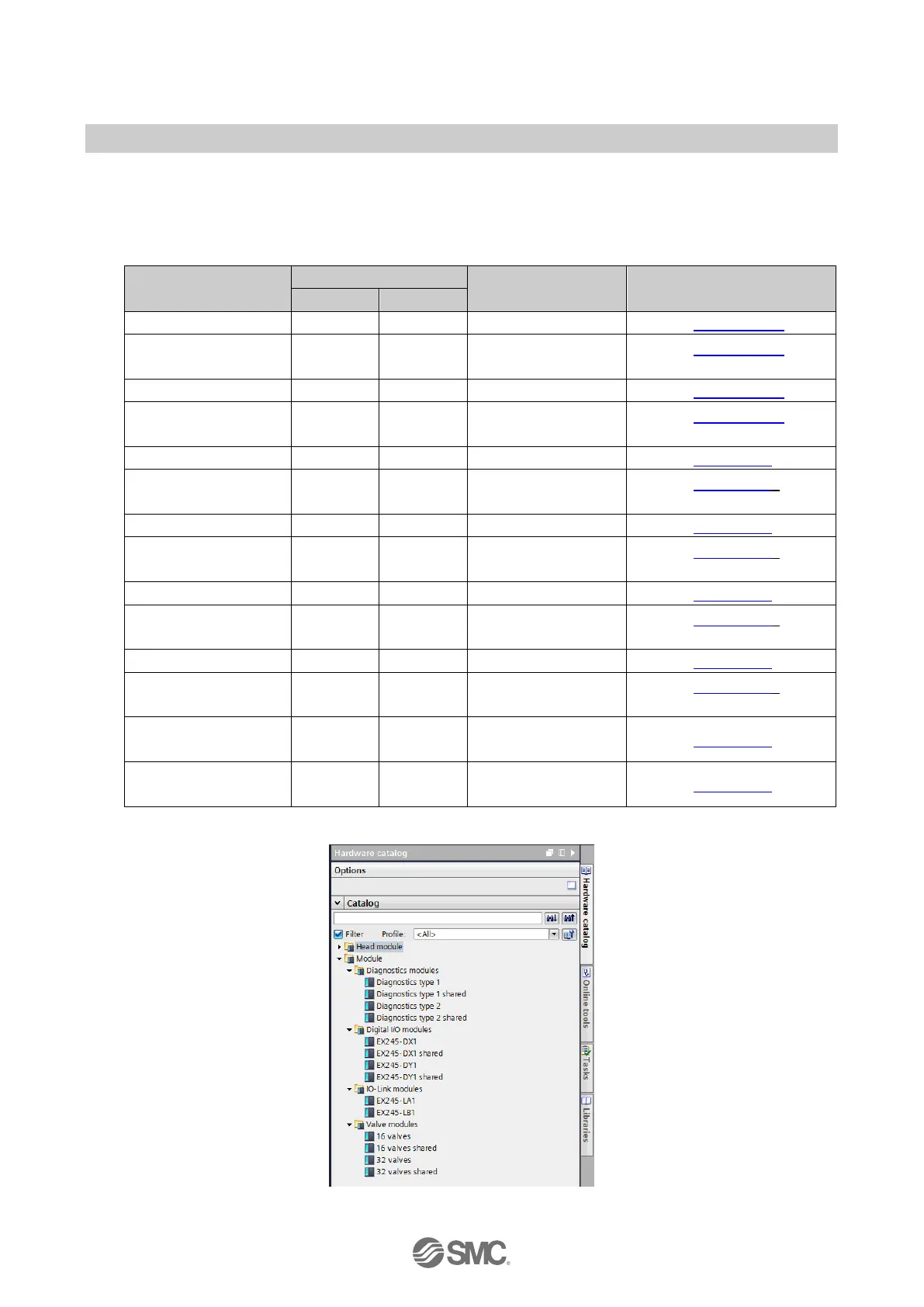

Table. 4-2 Overview of modules for the SI Unit
Module
Occupied bytes
Allowable slot
(Number / Name)
Note
Input
Output
Diagnostics type 1
4 bytes
-
1 / Diagnostics
Refer to Section 5.1.1
Diagnostics type 1
shared
4 bytes - 1 / Diagnostics
Refer to Section 5.1.1
and Table 4-3
Diagnostics type 2
4 bytes
-
1 / Diagnostics
Refer to Section 5.1.2
Diagnostics type 2
shared
4 bytes - 1 / Diagnostics
Refer to Section 5.1.2
and Table 4-3
16 Valves - 2 bytes 2 / Valves Refer to Section 6.3
16 Valves shared - 2 bytes 2 / Valves
Refer to Section 6.3
and Table 4-3
32 Valves
-
4 bytes
2 / Valves
Refer to Section 6.3
32 Valves shared - 4 bytes 2 / Valves
Refer to Section 6.3
and Table 4-3
EX245-DX1 2 bytes - 3..10 / module 1..8 Refer to Section 7.4
EX245-DX1 shared 2 bytes - 3..10 / module 1..8
Refer to Section 7.4
and Table 4-3
EX245-DY1
-
1 byte
3..10 / module 1..8
Refer to Section 8.4
EX245-DY1 shared - 1 byte 3..10 / module 1..8
Refer to Section 8.4
and Table 4-3
EX245-LA1
6 to 134
bytes*
6 to 130
bytes
∗
3..10 / module 1..8 Refer to Section 9.4
EX245-LB1
6 to 134
bytes*
6 to 130
bytes
∗
3..10 / module 1..8 Refer to Section 9.4
∗: Depends on the configuration of the sub-modules
