- 24 -
No.EX※※-OMW0011-B

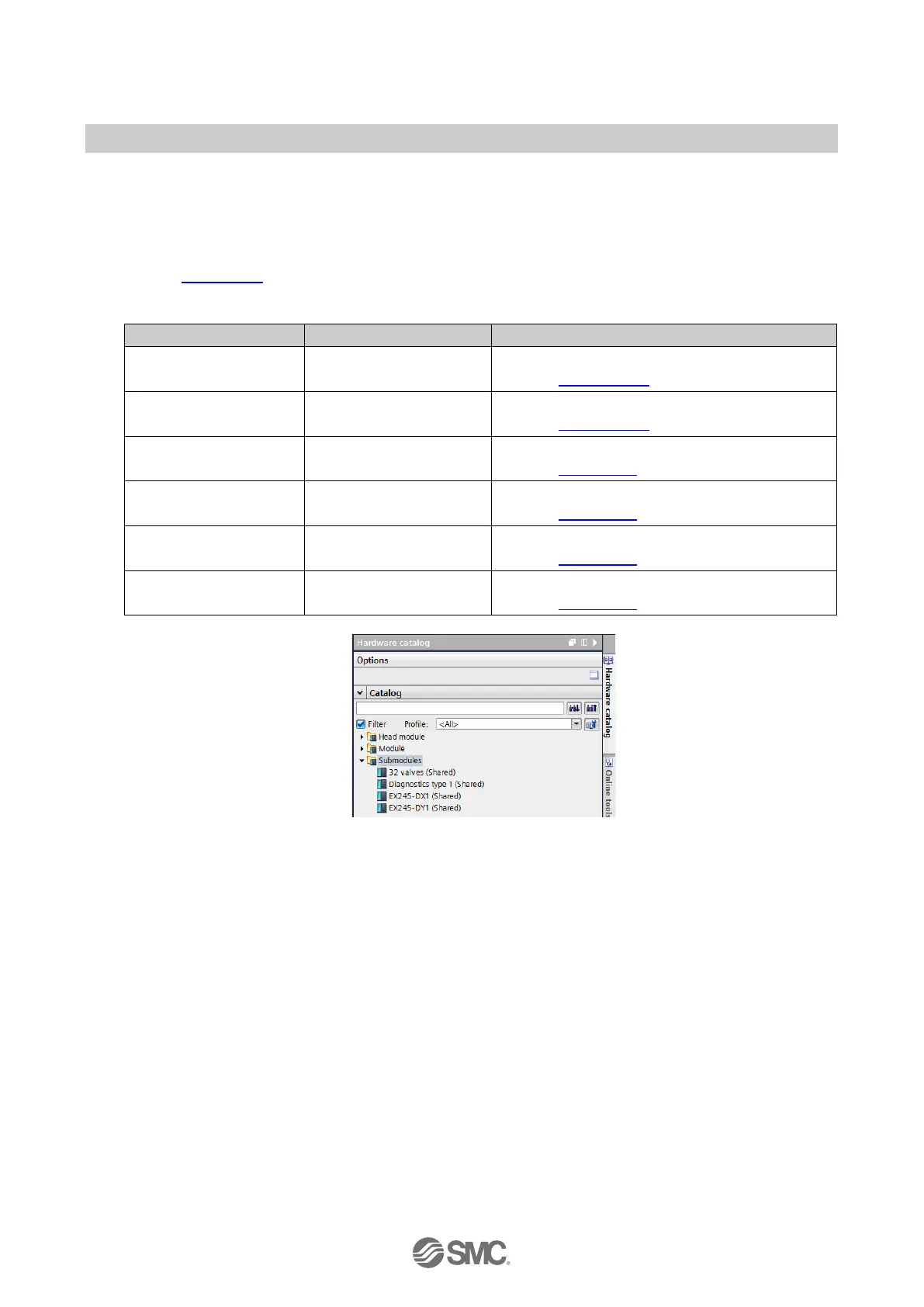

4.1.4. Sub-modules
Using the module named as "shared", other PROFINET IO Controllers can use the copied input data
in the sub-modules.
Each sub-module is appeared when it is added to the configuration slot.
Refer to Section 9.6
for the sub-modules used in the IO-Link module EX245-LA1 / LB1.
Table. 4-3 Overview of Sub-modules for the shared device function
Sub-module Occupied input bytes Bytes to be copied
Diagnostics type 1
shared
4 bytes
4 bytes input data for diagnostics.
Refer to Section 5.1.1
.
Diagnostics type 2
shared
4 bytes
4 bytes input data for diagnostics.
Refer to Section 5.1.2
16 Valves shared 2 bytes
2 bytes output data for valve outputs.
Refer to Section 6.3
32 Valves shared 4 bytes
4 bytes output data for valve outputs.
Refer to Section 6.3
EX245-DX1 shared 2 bytes
2 bytes input data for EX245-DX1 inputs.
Refer to Section 7.4
EX245-DY1 shared 1 byte
1 byte output data for EX245-DY1 outputs.
Refer to Section 8.4
