AP Mode
2-3
2

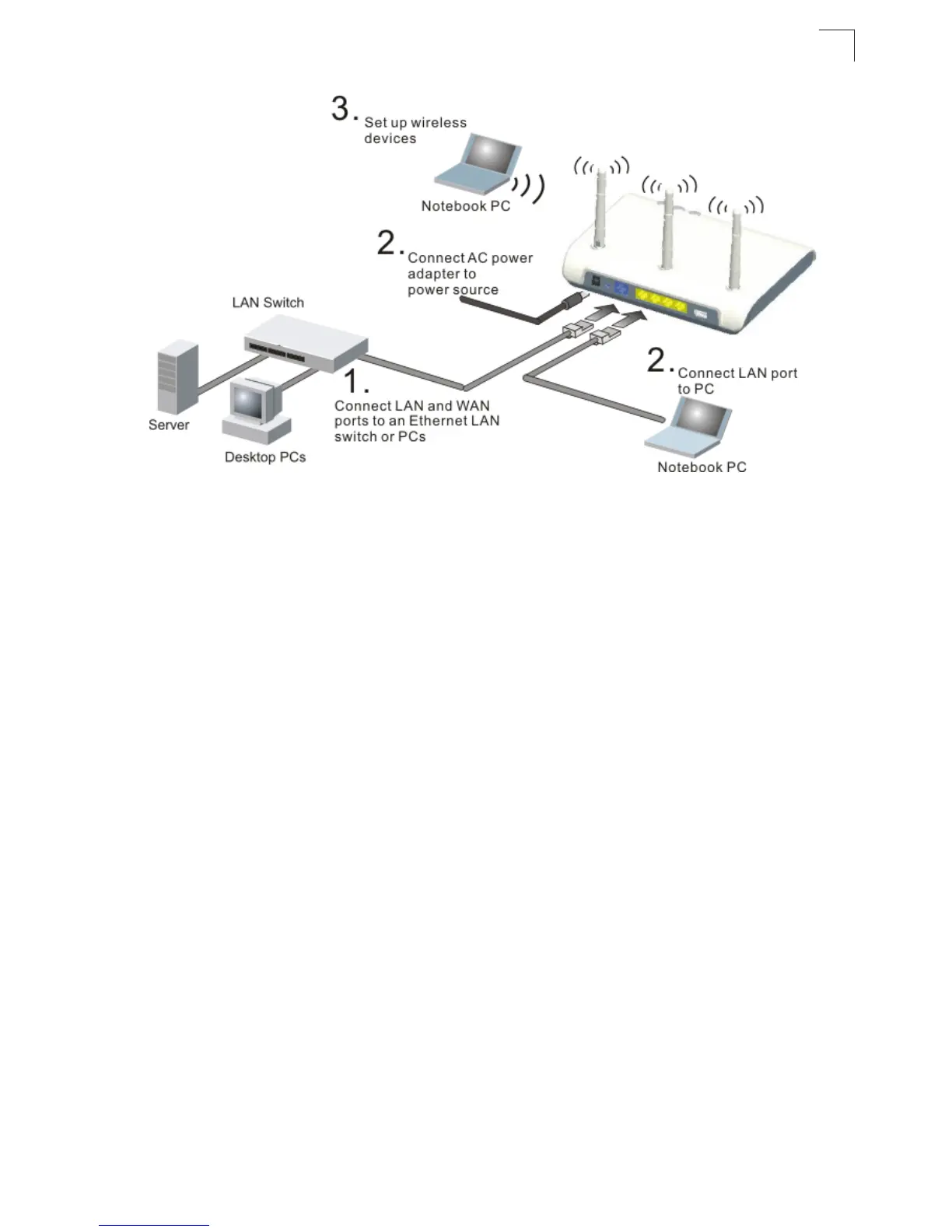

Figure 2-2. AP Mode Connection
To connect the wireless AP/Router for use as an access point, follow these steps:
1. Using Ethernet cables, connect the wireless AP/Router’s LAN and WAN ports
to PCs or a LAN switch.
2. Power on the wireless AP/Router by connecting the AC power adapter and
plugging it into a power source.
Caution: Use ONLY the power adapter supplied with the wireless AP/Router. Otherwise,
the product may be damaged.
When you power on the wireless AP/Router, verify that the Power LED turns on
and that the other LED indicators start functioning as described under “LED
Indicators” on page 1-4.
3. Set up wireless devices by pressing the WPS button on the wireless AP/Router
or by using the web interface. See “Initial Configuration” on page 4-1 for more
information on accessing the web interface.
