WAN Setting
5-15
5
• PPTP Username: Sets the PPTP user name for the WAN port.
(Default: PPTP_USERNAME; Range: 1~32 characters)
• PPTP Password: Sets a PPTP password for the WAN port. (Default:
PPTP_PASSWORD; Range: 1~32 characters)
• PPTP Server: Configures the IP address of the PPTP server interface. (Default:
0.0.0.0)
L2TP
Enable the Layer Two Tunneling Protocol (L2TP) for implementing virtual private
networks. The service is provided in many European countries.

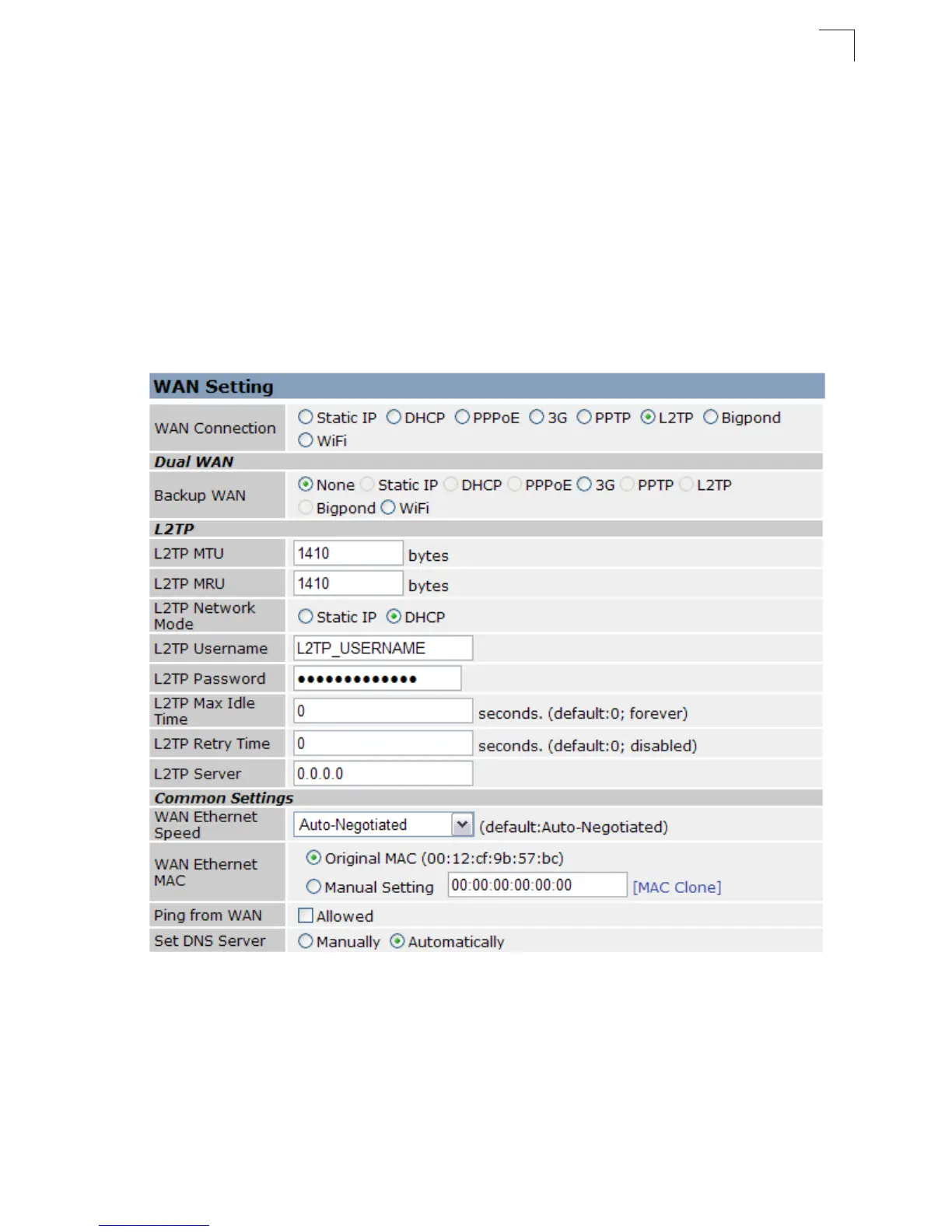

Figure 5-30. WAN Settings for L2TP (Router mode)
L2TP — Enable the Layer Two Tunneling Protocol (L2TP).
• L2TP MTU: Sets the maximum packet size that the WAN port may transmit. The
Maximum Transmission Unit (MTU) is expressed in bytes. (Default:1410 bytes)
• L2TP MRU: Sets the maximum packet size that the unit may receive from other
units on the network and sends a message to inform them of the set threshold.
Maximum Receive Unit (MRU) is expressed in bytes. (Default: 1410 bytes)
