Using the Setup Wizard
4-13
4
• L2TP Network Mode: Sets a L2TP network mode. (Default: DHCP)
• IP Address: Sets the static IP address. (Default: 0.0.0.0, available when L2TP
Network Mode is set to static IP.)
• Subnet Mask: Sets the static IP subnet mask. (Default: 255.255.255.0, available
when L2TP Network Mode is set to static IP.)
• Default Gateway: The IP address of the gateway router for the wireless AP/
Router, which is used if the requested destination address is not on the local
subnet.
• L2TP Username: Sets the L2TP user name for the WAN port.
(Default: L2TP_USERNAME; Range: 1~32 characters)
• L2TP Password: Sets a L2TP password for the WAN port. (Default:
L2TP_PASSWORD; Range: 1~32 characters)
Bigpond
Enables the settings of Telstra Bigpond network service in Australia.

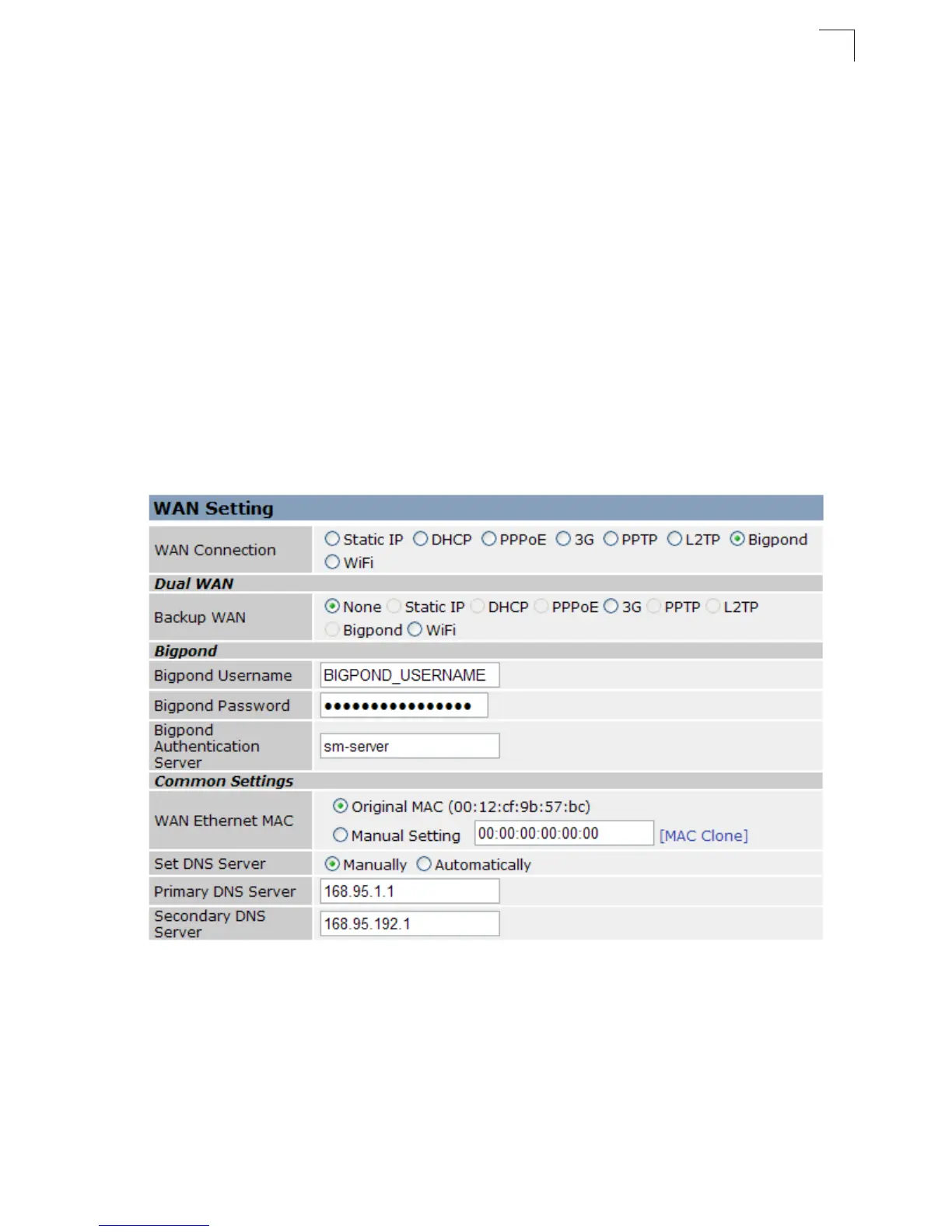

Figure 4-15. Setup Wizard - WAN Bigpond
• Bigpond Username: Sets the Bigpond user name for the WAN port.
(Default: BIGPOND_USERNAME; Range: 1~32 characters)
• Bigpond Password: Sets a Bigpond password for the WAN port. (Default:
BIGPOND_USERNAME; Range: 1~32 characters)
• Bigpond Authentication Server: Specifies a Bigpond authentication server.
(Default: sm-server)
