Using the Setup Wizard
4-5
4
Static IP
Configures a static IP for the WAN port.

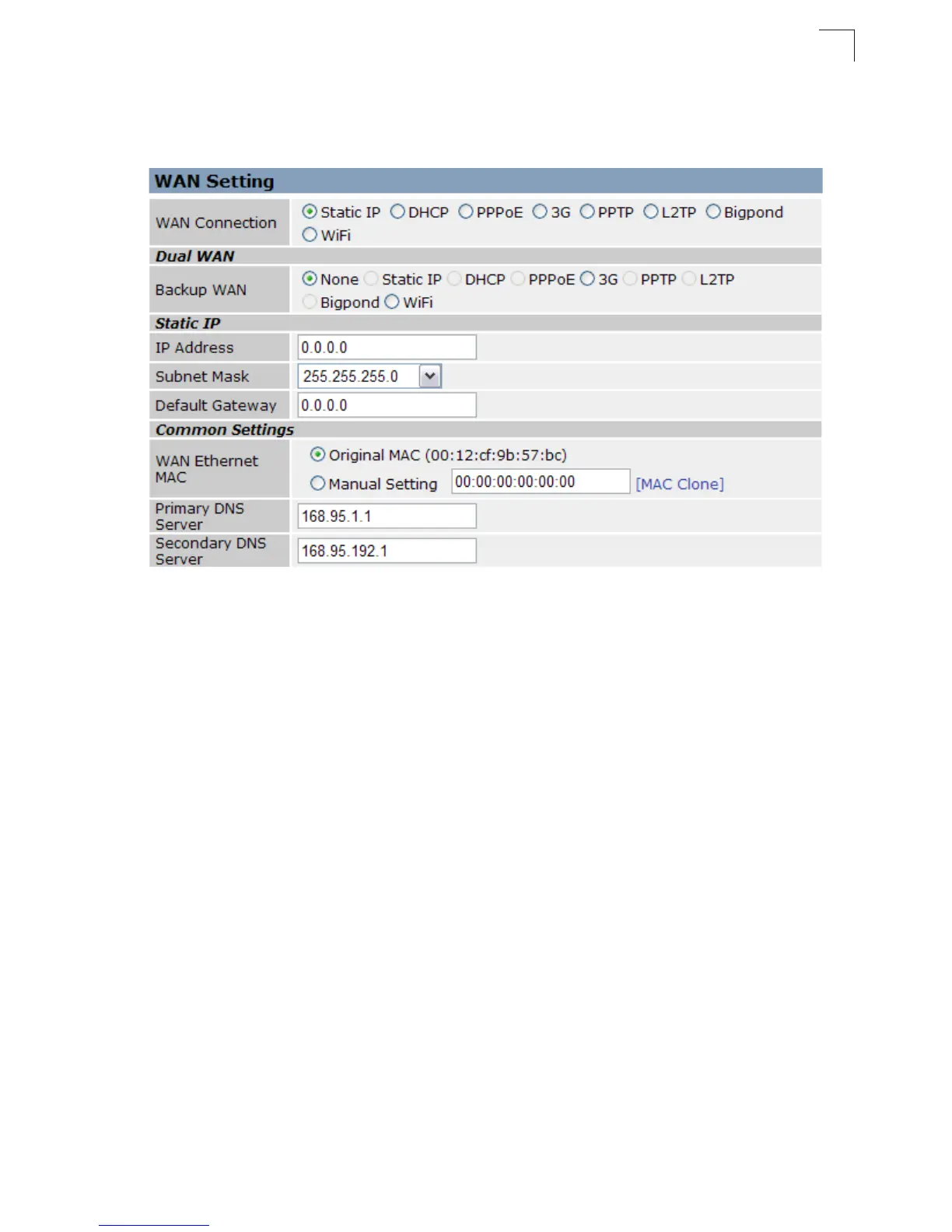

Figure 4-6. Setup Wizard - WAN Static IP
• IP Address: The IP address of the wireless AP/Router. Valid IP addresses consist
of four decimal numbers, 0 to 255, separated by periods.
• Subnet Mask: The mask that identifies the host address bits used for routing to
specific subnets.
• Default Gateway: The IP address of the gateway router for the wireless AP/
Router, which is used if the requested destination address is not on the local
subnet.
