Sirius 800 www.snellgroup.com Nucleus Upgrade (RollCall) and Maintenance

9.5 Nucleus2 2463 Router Control Module

Refer to the Workbench manual for details on configuring the Nucleus2 router control module.

9.5.1 Reset Button

The Reset button resets the 2463 router control module and will also failover control to the

second router control module in a dual-redundant controller system. See Fig 65.above for

reset button location details.

2463 Router control modules can be reset remotely using Workbench or a third party control

system.

After fitting a replacement controller, the active controller synchronizes persistence (AHP

audio settings) and crosspoint tally table files with it. This process (replication) is indicated on

the idle controller by LED 5 flashing orange. When replication is complete, LED 5 will flash

green. Failing over to the idle controller before data synchronization is complete may corrupt

the data files being synchronized and affect the operation of the router.

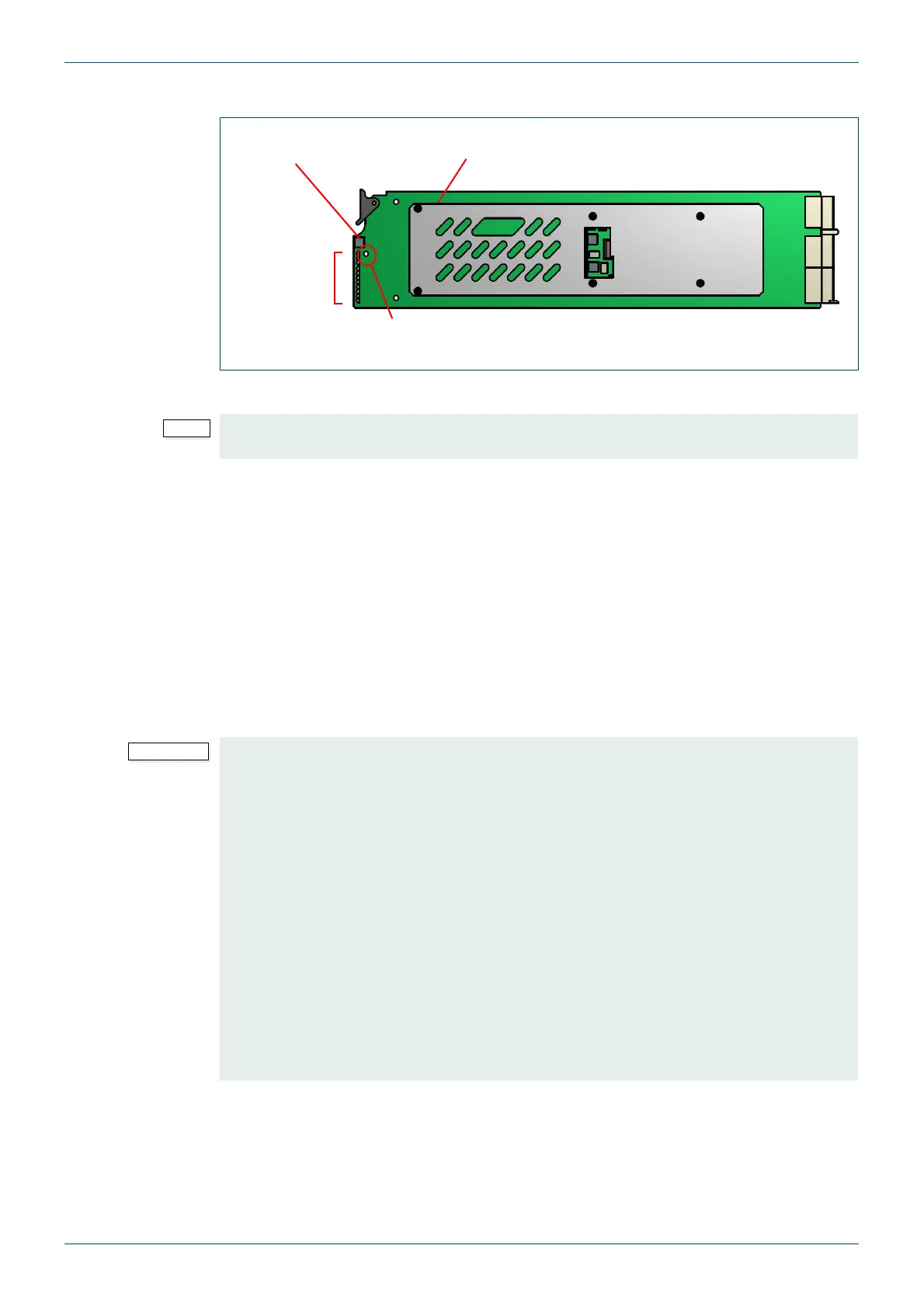

Fig 65. Nucleus2 2463 Router Control Module

Note:

The Nucleus2 controller has a default database, use Workbench’s Auto Config function to

match the cards in the Sirius 800 with the Workbench software database.

LEDs,

see section

9.5.2

Micro SD Card,

Not currently used

USB Upgrade Connector,

see section 10.2

Reset Button (see section 9.5.1 for details)

Important:

Dual-Redundant 2463 Router Control Modules:

• Do not fail-over to the idle controller if LED 5 on the idle controller is

flashing orange (data synchronization in progress). Failing over to the idle

controller before data synchronization is complete may corrupt the data files being

synchronized and affect the operation of the router. When LED 5 on the idle

controller flashes green (data synchronization complete) it is safe to fail over the

controller.

• If resetting the 2463 router control module remotely check the value of OID 2.5.6

for the active controller.

True = Replication is complete (Safe to Reset)

False = Replication is not complete (Do Not Reset)

Single 2463 Router Control Module:

• All communication with the 2463 router control module will be lost during a reset.

Because of this the crosspoints cannot be switched and tallies are not reported

during this process. Video and audio processing is unaffected.
