7.1.1 5901/5905 Video Crosspoint Module LEDs

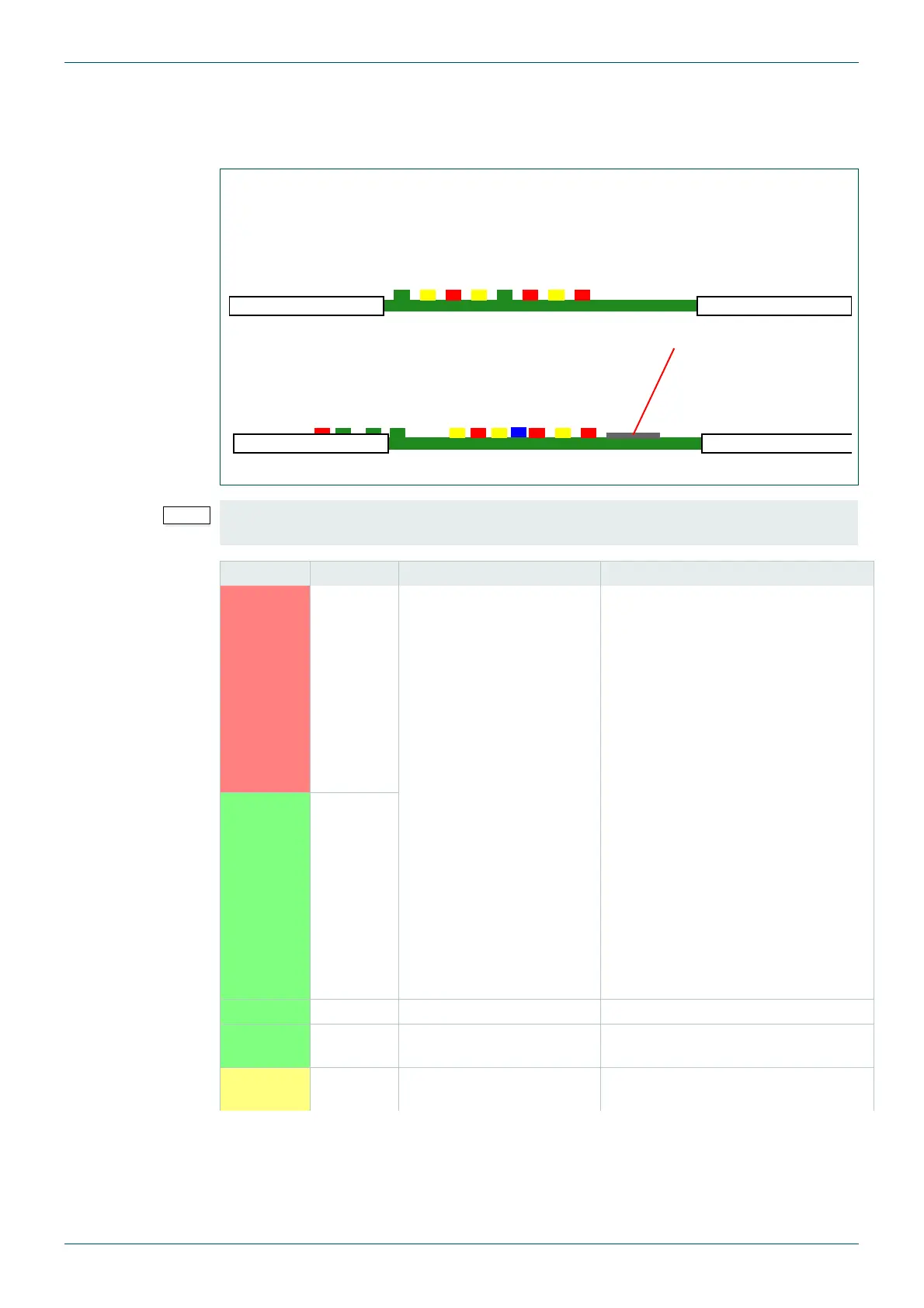

Table 16. shows the LED color code on the Video Crosspoint Modules, and Fig 34. shows the
front edge of the module.
Fig 34. 5901/5905 Video Crosspoint Module LEDs
Note:
If the Active LED is not illuminated, it is safe to remove the video crosspoint module without
affecting any active routes.
LED Color Label Detail Status
Red Config R
(5905 only)
FPGA status
Flashing rapidly between Red &
Green (2 Hz each LED) - starting up
Green On Solid & Red Off - normal
state working correctly
Green Off & Red On Solid - FPGA
programming fault found. Remove
module and refit to force a reboot.
Red & Green Flashing very rapidly
in sync (4 Hz each LED) - A change
has been made to the module settings
database in RAM but it has not yet
been written to flash memory. This is
not a fault and the flash memory will
be updated after a period of inactivity.
Do not remove power from the module
while this indication is present as the
flash may become corrupted.
Other indications are displayed when
performing a firmware upgrade, see
section 6.2 for details.
Green Config G
(5905 only)
Green Power OK Power to the module On Solid - working correctly
Green
PAL OK FPGA Working Flashing - the FPGA is working
correctly
Yellow
Command
OK
Command from the Control
module
Flashing - receiving information and
working correctly
Table 16. Video Crosspoint Module LED Information
Power OK Command OK Command Error Switch PAL OK Xpt Error Active Route Fail
5901
Power OK Command OK
Command Error
Switch PAL OK
Xpt Alarm Active Route Fail
Config R
Config G
Fugue Status
5905
SD/SDHC Card - Used
for upgrading Crosspoint
module firmware, see
section 6.2 for details.
