Introducing the SolarEdge Power Harvesting System
SolarEdge Installation Guide – MAN-01-00002-1.6
10
You may refer to the SolarEdge power optimizer datasheets in order to determine
which power optimizer is most suitable for you requirements.

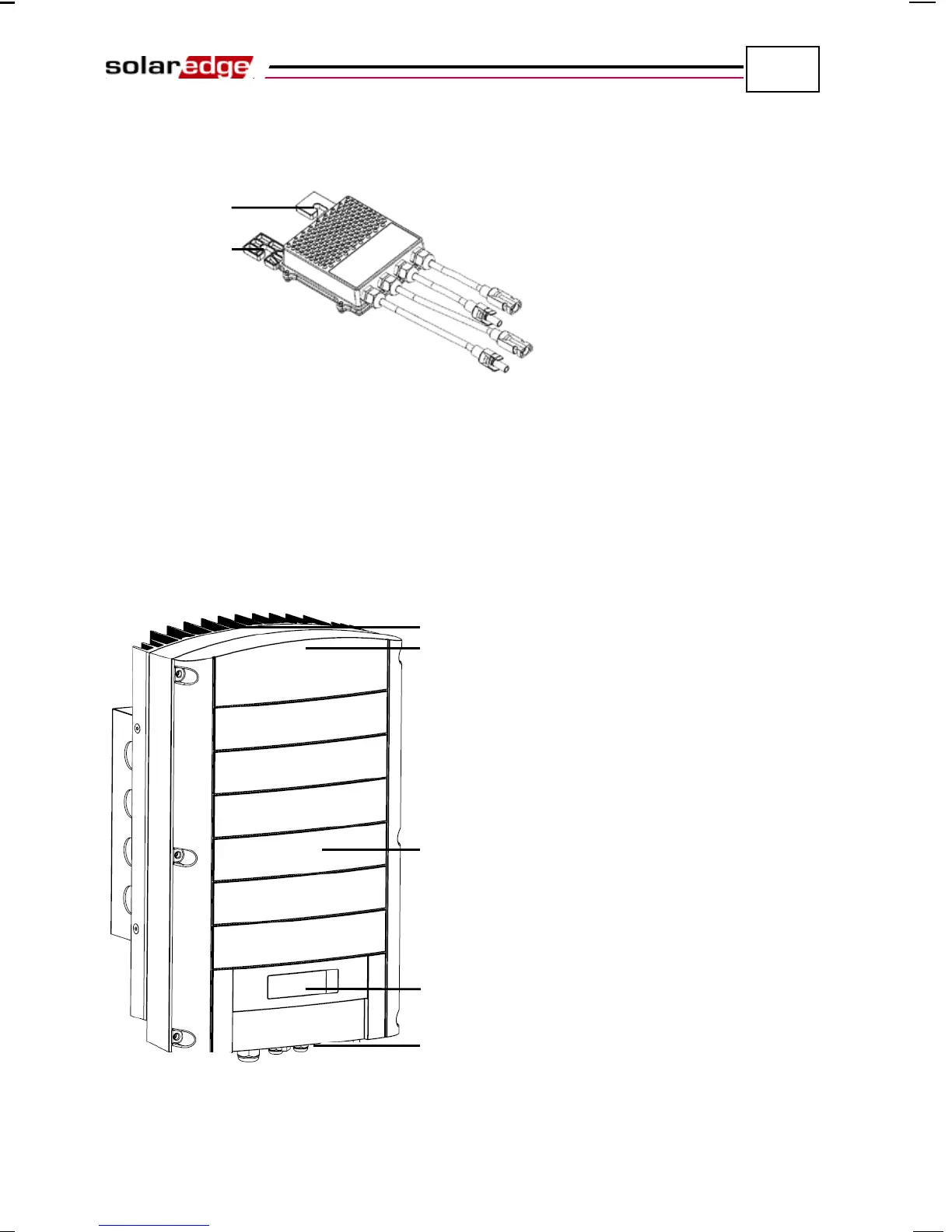

Figure 1: Add-On Box Solution
Single Phase Inverter
The Single Phase Inverter efficiently converts DC power received from the PV
modules into AC power that can be fed into the main circuit board of the site and
from there to the grid. The inverter also receives the monitoring data from each
power optimizer and transmits it to a central server (called the Monitoring Server)
through an Ethernet network to an external modem connection.
Figure 2: Single Phase Inverter
