Installing the Inverter
SolarEdge Installation Guide – MAN-01-00002-1.6
41

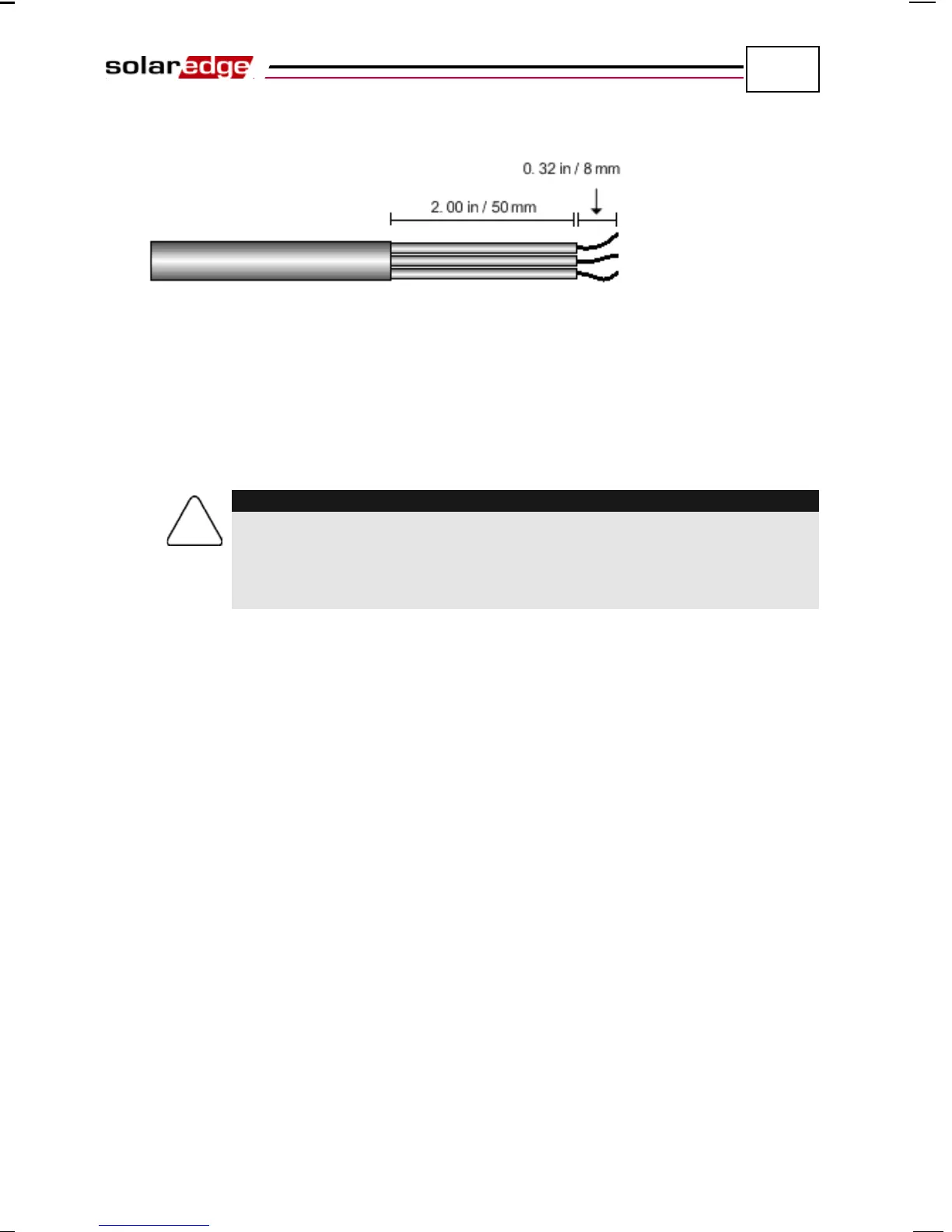

The lengths of the wires to strip are as follows:
Figure 17: Wire Lengths to Strip
• Strip 8 mm (0.32'') to enable contact
• Each cable length is 50 mm (2'')
3 Insert the cable through the DC conduit opening on the left and connect the
wires to the appropriate terminal connectors according to the labels on them:
DC + and DC -.
Ensure that the + wire is connected to the + terminal connector and that the -
wire is connected to the
- terminal connector.
Veillez à ce que le câble + soit connecté au connecteur terminal + et que le
câble - soit connecté au connecteur terminal.
4 Tighten the screws of each wire terminal according to the following torque.
The tightening moment for the terminals is 1.2-1.5 Nm
(0.88-1.1 pound-foot).
Completing the Single Phase Inverter
Installation
In most cases, the inverter is preconfigured before delivery. After completing all
connections, you must verify that the inverter is configured to the proper
country, as described on page 95.
If not, then you must configure the inverter to the site’s requirements using the
inverter’s internal buttons or by using the SolarEdge Configuration Tool
connected to an RS232 port. For more information, you may refer to the
Configuring the Inverter Using the LCD Panel and User Buttons section on
page 88.
If you plan to use the SolarEdge Monitoring Portal to access SolarEdge site
information, you may need to add a physical connection to the proper
communication option. Connecting the inverter to the SolarEdge Monitoring
Server via a LAN, an external modem connected to an RS232 port, an RS485 bus
or a ZigBee modem is described in Chapter 6, Setting Up Communication on
page 66.
