Inverter User Interface
SolarEdge Installation Guide – MAN-01-00002-1.6
83
Chapter 7
Inverter User Interface
Inverter LCD Panel and LEDs
The front of the Single Phase Inverter has a small LCD panel and three LEDs, as
shown below:

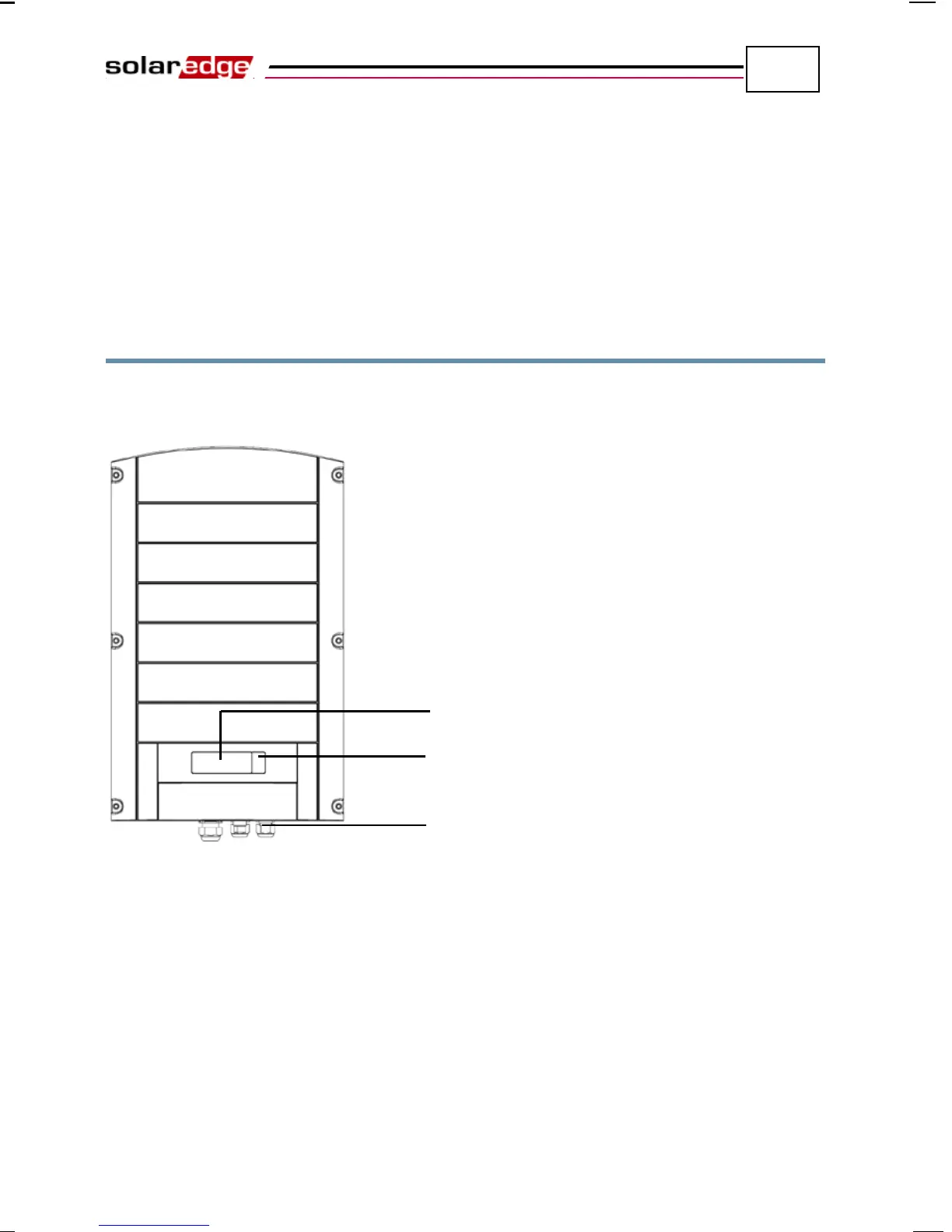

Figure 48: Single Phase Inverter – Front
The LCD panel has three LED indicators, as follows:
Power Production (Green): Indicates whether the inverter is producing
power or not, as follows:
• On: The inverter is producing power.
• Blinking: The inverter is in Standby mode, meaning it is preparing to
produce power. The inverter is in Standby mode until enough power is
generated. The inverter then automatically goes to Production mode and
produces power.
