Installing the Power Optimizers
SolarEdge Installation Guide – MAN-01-00002-1.6
21
PB250-AOB and PB350-AOB
These power optimizers connect to a single PV module via its two inputs (a plus
and a minus).

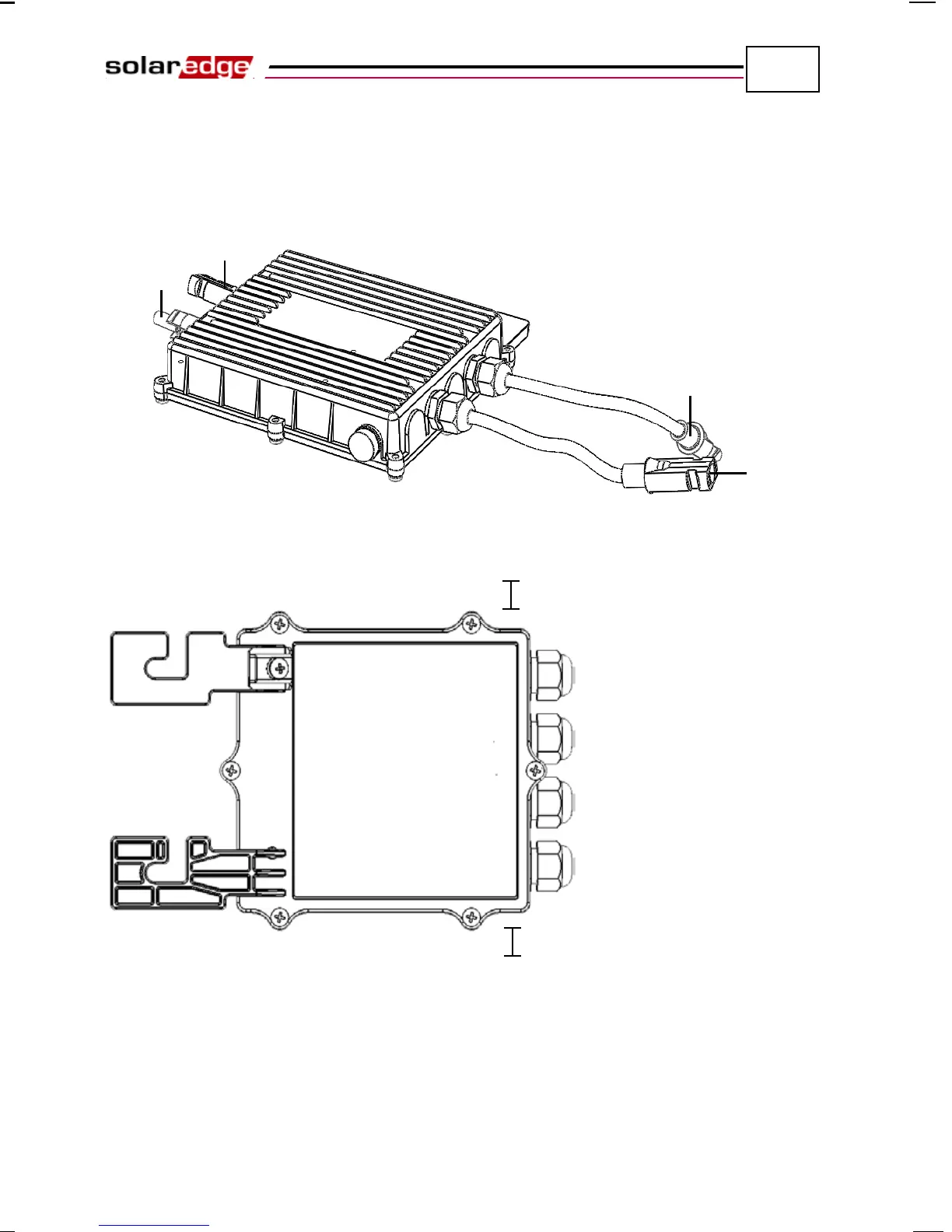

Figure 4: PB250-AOB and PB350-AOB
The following shows the required clearance around the power optimizer.
Figure 5: Clearance
1” (2.5 cm)
1” (2.5 cm)
Input +
Input -
Output
-
Output +
