SolarEdge SE3000US

Installing the Inverter
SolarEdge Installation Guide – MAN-01-00002-1.6
28

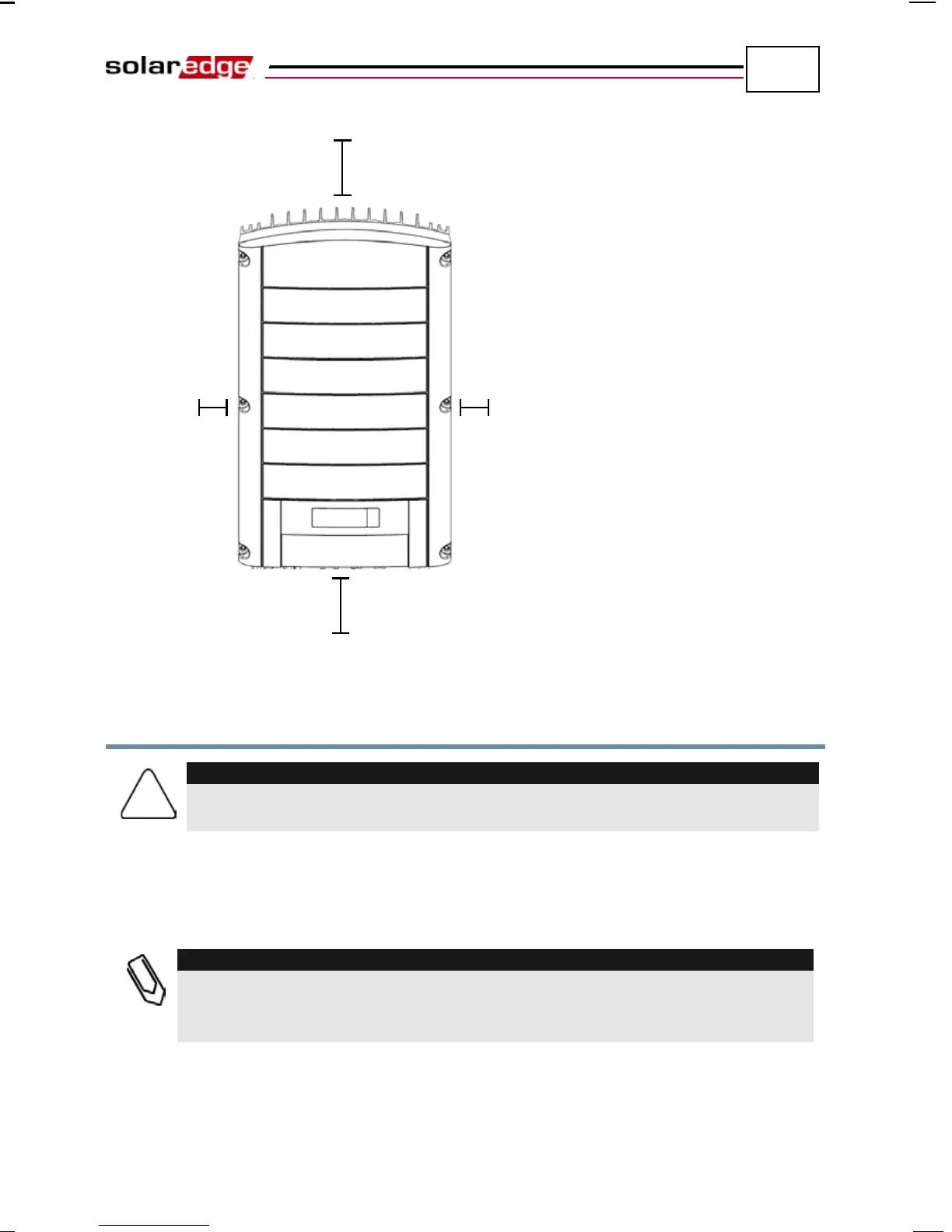

Figure 7: Chassis Clearance
Mounting the Inverter
CAUTION:
Make sure that you have read the previous
sections in this chapter before starting
the mounting process that is described below.
The Single Phase Inverter installation package provides the Single Phase Inverter
and the mounting bracket that is required to connect it to the wall. Standard tools
(not provided) can be used during its installation.
NOTE:
The
DCD-1ph-US-B AC/DC Safety Switch has a template with drilling hole
locations for the inverter and the switch.
If a Safety Switch of this type is being
used, these locations should be marked before installing the inverter.
8” (20 cm)
8” (20 cm)
4” (10 cm)
4” (10 cm)
