Power Optimizer Mechanical Specifications
SolarEdge Installation Guide – MAN-01-00002-1.6
116
OP250-LV, OP300-MV, OP400-MV
Power Optimizers
The following figure shows the mechanical specifications for the OP250-LV,
OP300-MV, OP400-MV, power optimizers:

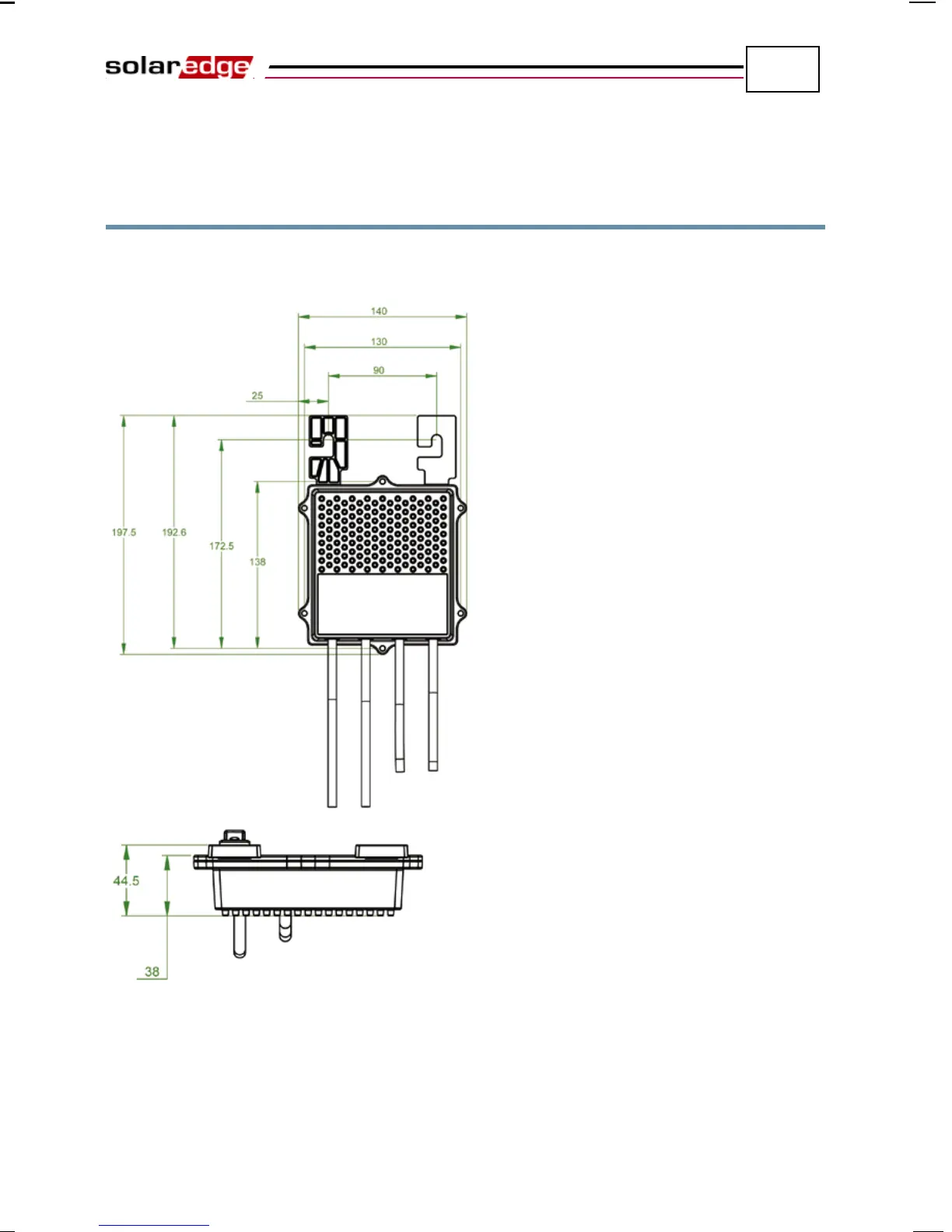

Figure 50: Power Optimizer Mechanical Specifications
