AC/DC Safety Switch Package Contents
The following describes the contents of the AC/DC Safety Switch package:
 AC/DC Safety Switch.
 Front Cover of the AC/DC Safety Switch.
 AC/DC Safety Switch mounting bracket.
 Paper template with a drawing that indicates the places to drill the mounting
holes on the wall.
 Four flat head screws for fastening the AC/DC Safety Switch to the
wall-mounting bracket.
 Two conduit nuts for securing the Safety Switch AC and DC conduits to the
inverter.
Mounting the Switch
The AC/DC Safety Switch is mounted after the inverter has been mounted, as
described in the Mounting the Inverter section on page 28.
1 Attach the AC/DC Safety Switch to its mounting bracket using the four
provided flat head mounting screws, as shown below:

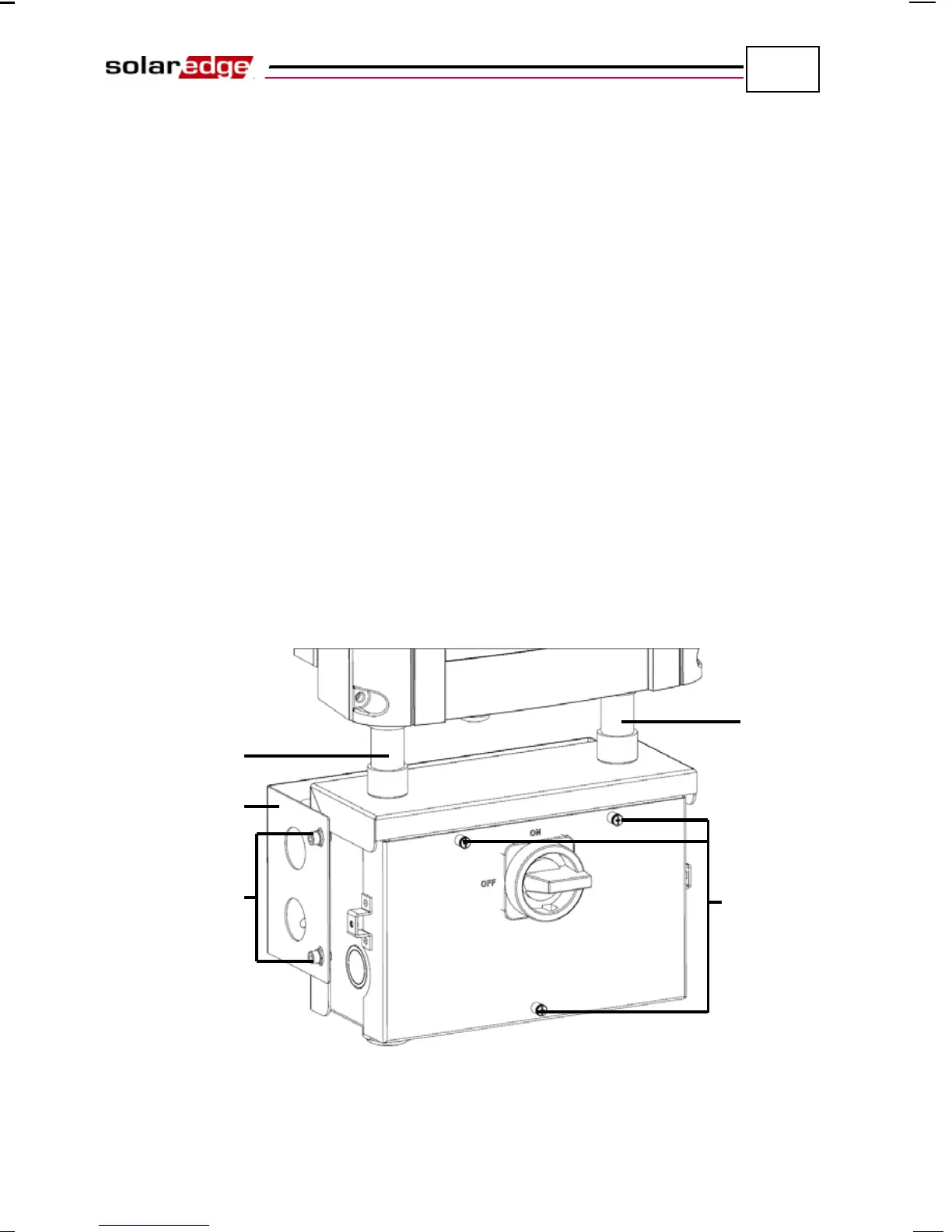

Figure 21: Attaching the AC/DC Safety Switch to its Mounting Bracket
Mounting Screws
Bracket
DC Conduit
AC Conduit
3 screws used
to open the cover
