Sony BVM-D32E1WA - Cover

8-2
BVM-D32E1WA/D32E1WE/D32E1WU
Cover
Ref.No. Part No. Description RemarkRef.No. Part No. Description Remark
: 7-685-871-01 +BVTT3x6
: 7-682-161-01 +P4x8
: 7-682-562-09 +B4x10
1
2
3
4
5
5
5
5
6
7
8
9
10
11
12
13
14
14
15
16
17
18
19
19
20
21

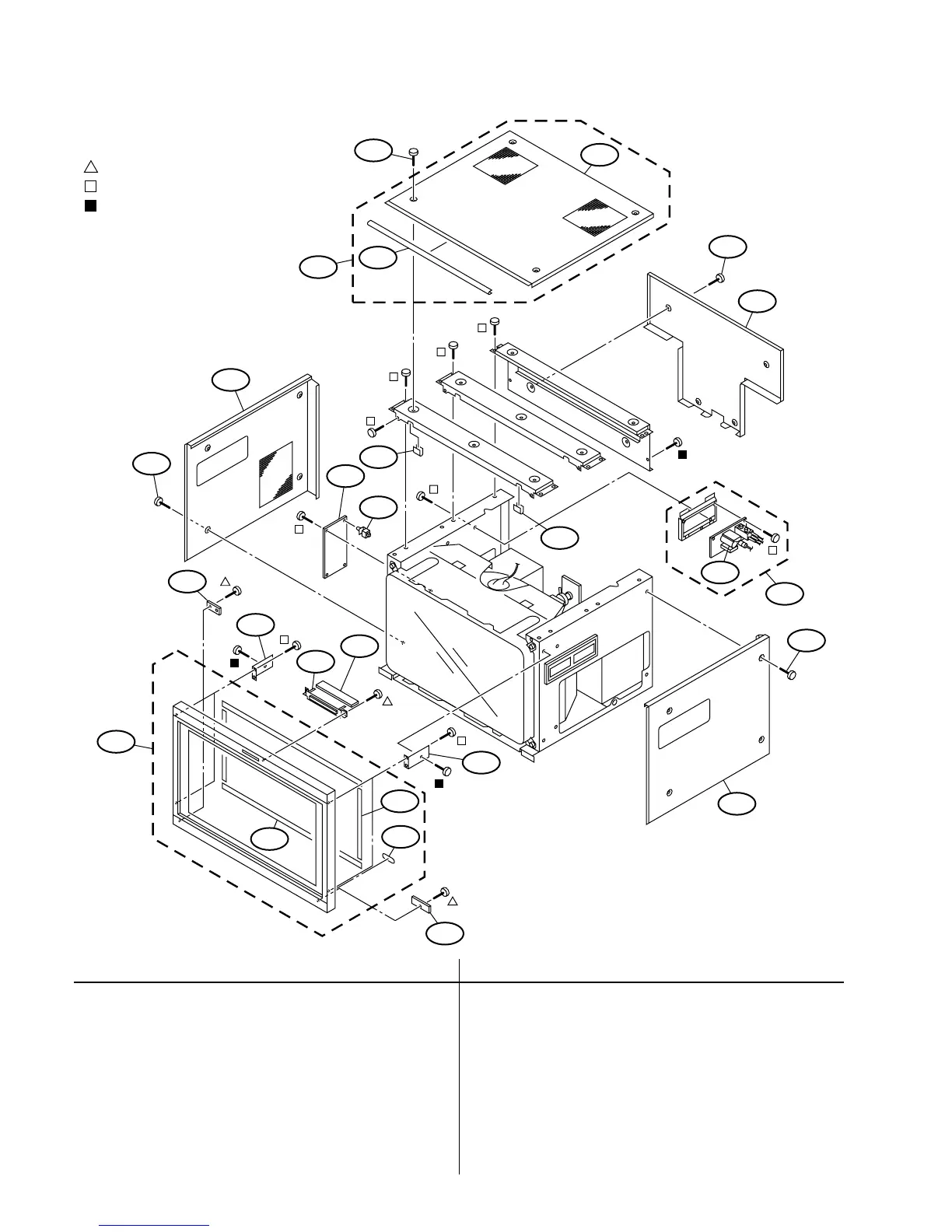

8-1. Cover
1 X-4037-951-1 COVER ASSY, TOP 20, 21
2 * 4-076-744-01 COVER (L), SIDE
3 * 4-076-743-01 COVER (R), SIDE
4 * 4-076-745-01 COVER, REAR
5 4-063-969-01 SCREW (OS), CASE, CLAW
6 X-4037-803-1 BEZEL ASSY 7-9
7 * 4-072-122-01 YB PLATE
8 * 4-076-731-01 SPACER, BEZEL
9 * 4-076-731-11 SPACER, BEZEL
10 * A-1373-754-A YB MOUNT
11 * A-1373-755-A YC MOUNT
12 * A-1373-753-A YA MOUNT
13 * 4-072-138-01 PLATE, TALLY
14 * 4-076-734-01 BRACKET, BEZEL
15 * A-1195-160-A PA COMPL
16 * 4-353-620-11 HINGE, PC BOARD
17 !* A-1484-768-A FBT BLOCK ASSY 18
(Including PC board)
18 ! 1-453-337-11 FBT ASSY, NX-4202//J1A4
19 * 4-077-431-01 COVER, EDGE (S)
20 * 4-076-742-01 COVER, TOP
21 * 4-077-432-01 COVER, EDGE (L)
