Sony BVM-D32E1WA - Picture Tube

8-4
BVM-D32E1WA/D32E1WE/D32E1WU
: 7-682-161-01 +P4x8
: 7-682-262-09 +K4x10
: 7-682-667-09 +PS4x25
101
101
102
103
104
105
106
107
108
109
110
111
111
112
113
114
115
116
117
117
118
119
120
121
122
122
123
124
125
126
126
127
128
129
130
Picture Tube

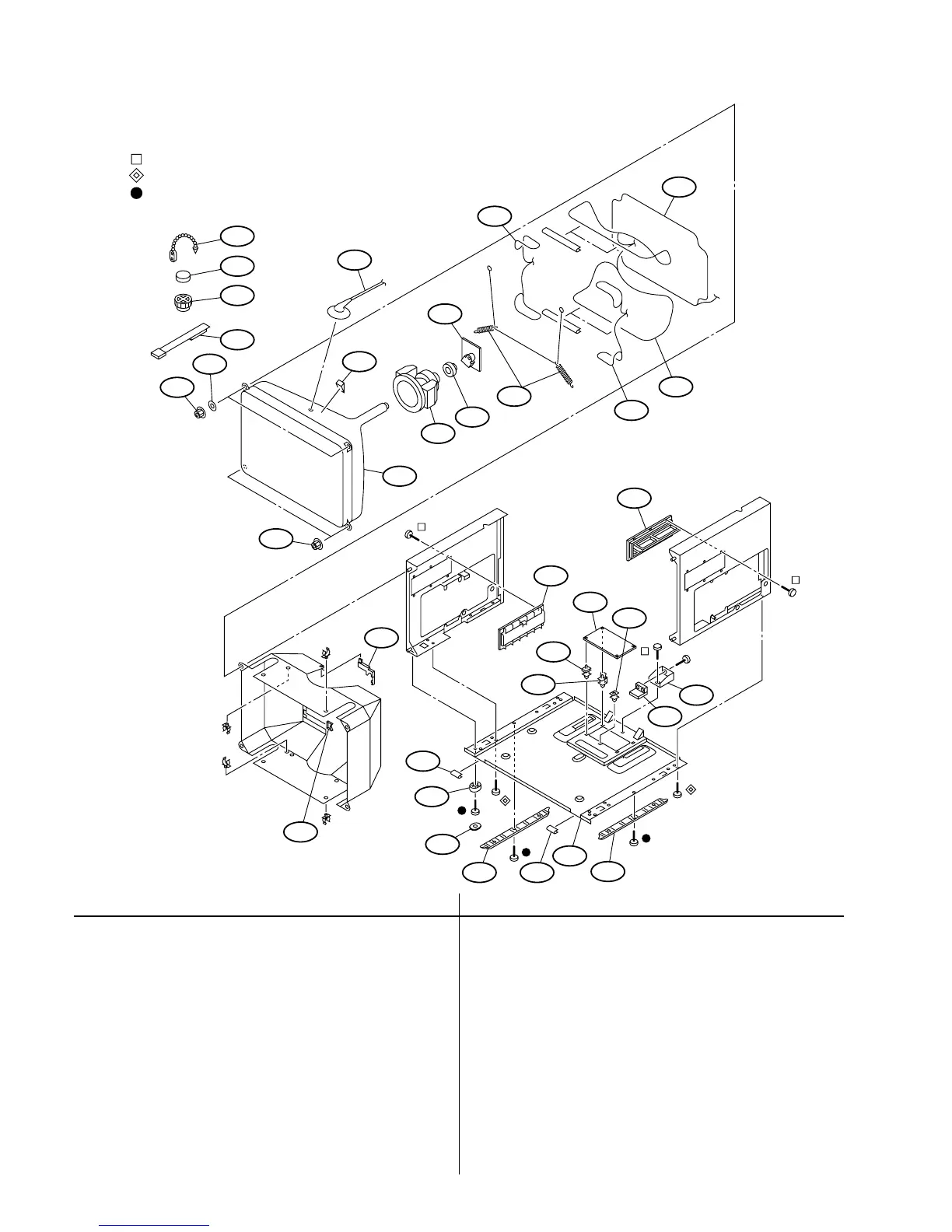

8-3. Picture Tube
Ref.No. Part No. Description RemarkRef.No. Part No. Description Remark
101 * X-4037-801-1 HANDLE ASSY
102 * A-1343-836-A DC MOUNT
103 * A-1372-136-A MOUNTED PWB, HD 63-65
104 * 4-050-816-11 BLACKET, HD
105 * 3-703-141-00 HOLDER, PWB
106 * 4-353-620-11 HINGE, PC BOARD
107 * 4-382-848-01 HOLDER, PWB
108 * X-4037-806-1 CABINET ASSY, BOTTOM
109 * 4-076-733-01 FOOT
110 * 4-076-726-01 CUSHION
111 * 4-076-739-01 HANDLE, BOTTOM
112 ! 8-735-074-05 PICTURE TUBE S76LTD20X (U/C)
! 8-735-073-05 PICTURE TUBE S76LTD21X (AEP, AUS)
113 4-040-897-01 SPACER, DY
114 * 4-387-284-01 HOLDER, LEAD
115 * 1-900-252-79 LEAD ASSY, FOCUS
116 * 4-076-727-01 WASHER, CRT POSITION OUT
117 4-387-204-01 NUT, SPECIAL, CRT
118 ! 1-451-521-11 DEFLECTION YOKE (Y32TXD-T)
119 ! 1-451-522-21 NECK ASSY (NA-2917)
120 * A-1332-074-A C MOUNT
121 4-303-774-03 SPRING
122 ! 1-419-644-11 COIL, LANDING CORRECTION
123 ! 1-419-642-11 COIL, DEGAUSSING
124 ! 1-419-643-11 COIL, LANDING CORRECTION
125 * 4-310-385-00 HOLDER, WIRE
126 * 4-077-431-01 COVER, EDGE (S)
127 4-308-870-00 CLIP, LEAD WIRE
128 1-452-032-00 MAGNET, DISK : 10mmφ
129 1-452-094-00 MAGNET ROTATABLE DISK : 15mmφ
130 4-051-736-21 PIECE A(90), CONV. CORRECT
