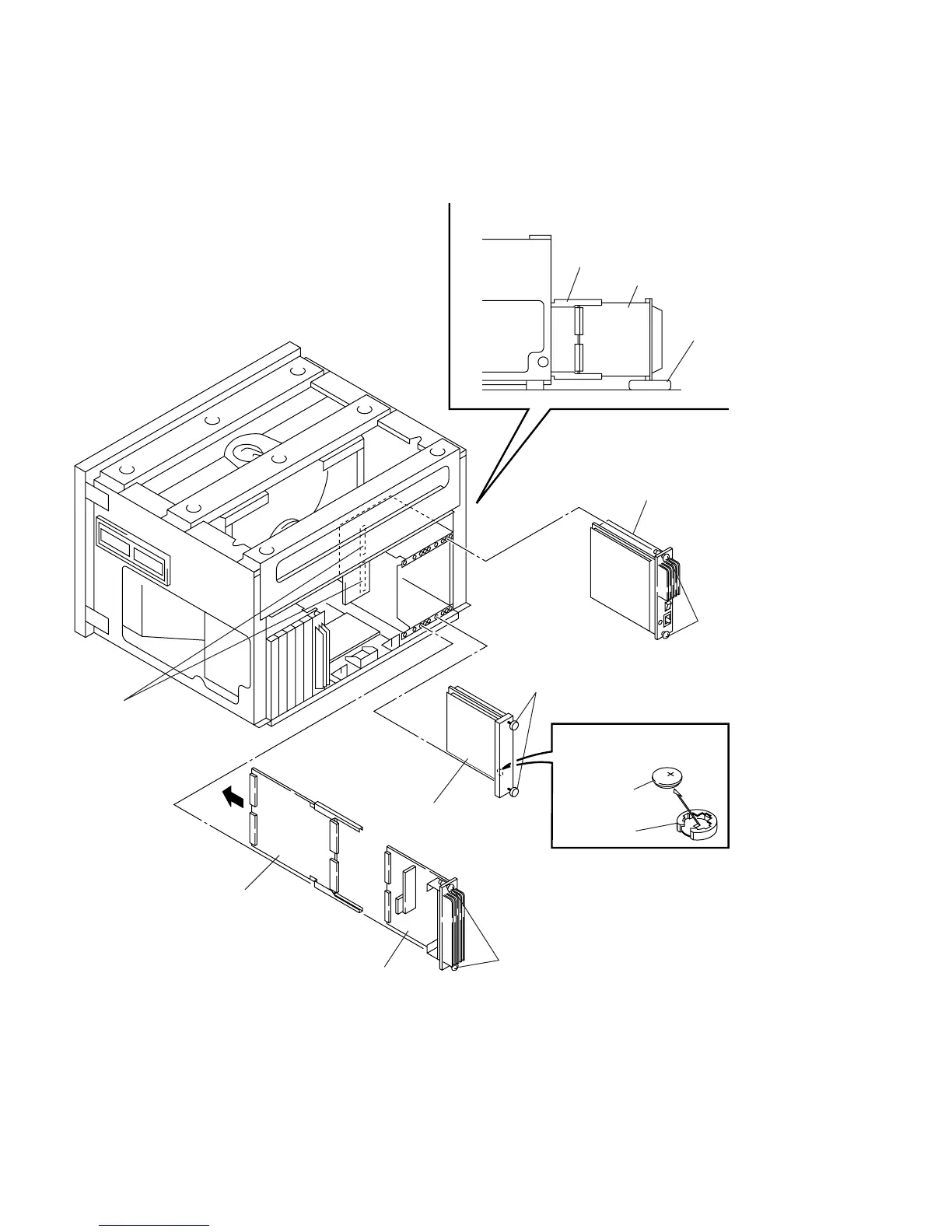

2-2-4. BUF2, E and G Boards Removal and Check
* The BUF, G board can be checked in the same way.
5 Loosen the two screws.
(+B4 x 20)
6 Remove the G board.
3 Loosen the two screws.
(Stopper screw)
4 Remove the BUF2 board.
1 Loosen the two screws.
(+B4 x 20)
2 Remove the E board.
Slot
7 Z board (Extension board)
note) Insert the Z board into the slot
and insert the E board into the
connect on the Z board.
note) Before checking each board, put the spacer
under the attached board to fix the board.
Z board (Extension board)
Spacer
BUF2, E or G board
Remove the battery in the
direction of arrow.
Battery, Lithium
CR2032 Type
Battery holder
Battery removal
