5-2
BVM-D32E1WA/D32E1WE/D32E1WU
Equipment Used
Name Main Specifications Equipment
Signal generator
..
..
. 1125 (1035) : SMPTE240M standard or BTA S-S001A standard
..
..
. 1125 (1080) : SMPTE274M standard
..
..
. 525P : SMPTE293M standard or BTA T-1004 standard
..
..
. 1250 : SMPTE295M standard
Oscilloscope Frequency : Above DC to 150 MHz TEKTRONIX 2445A or equivalent
Above 2 phenomena (ADD mode)
Tools
Name Parts No. Remarks
Extension board/cable kit A-1394-806-B Z board and four cables
75Ω terminal _ x 4
Adjusting screwdriver _

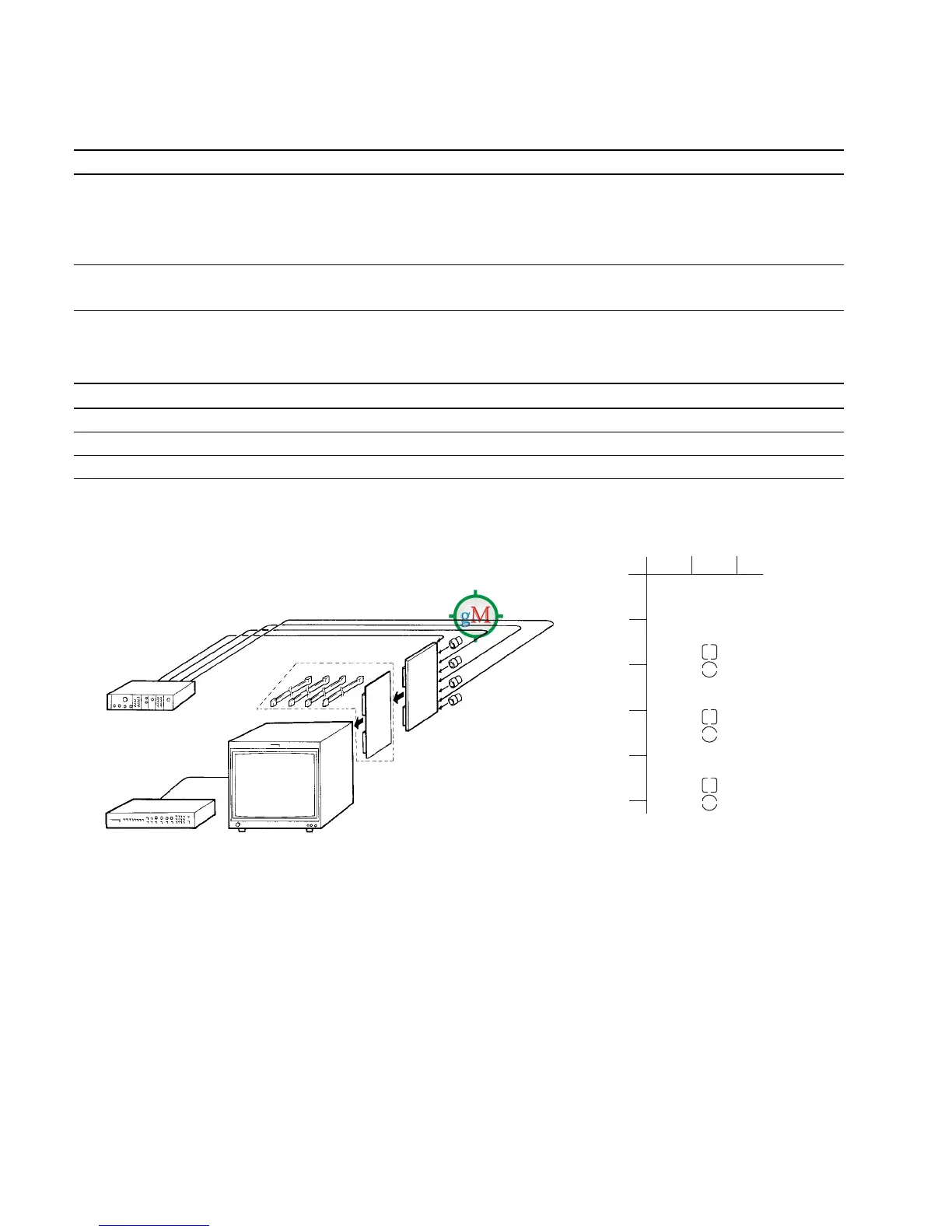

Connection (1) Adjusting Point
AB
1
2
3
4
5
RV100
CV100
RV300
CV300
RV500
CV500
BK board –Side A–
BVM-D32E1WA/D32E1WE/D32E1WU
Y/G terminal
P
B/B terminal
PR/R terminal
SYNC terminal
Signal generator
(1125/60 Hz 2:1 color bar)
or
(100 IRE RGB color bar)
BKM-10R
SLOT No. 6
Extension board/cable kit
(part cord : A-1394-806-B)
75Ω terminater x 4
BK board
