Sony DCR-PC350 - T Reel Table Assy

— 20 —
DV MECHANICAL ADJUSTMENT MANUAL VII
3-9. T Reel Table Assy

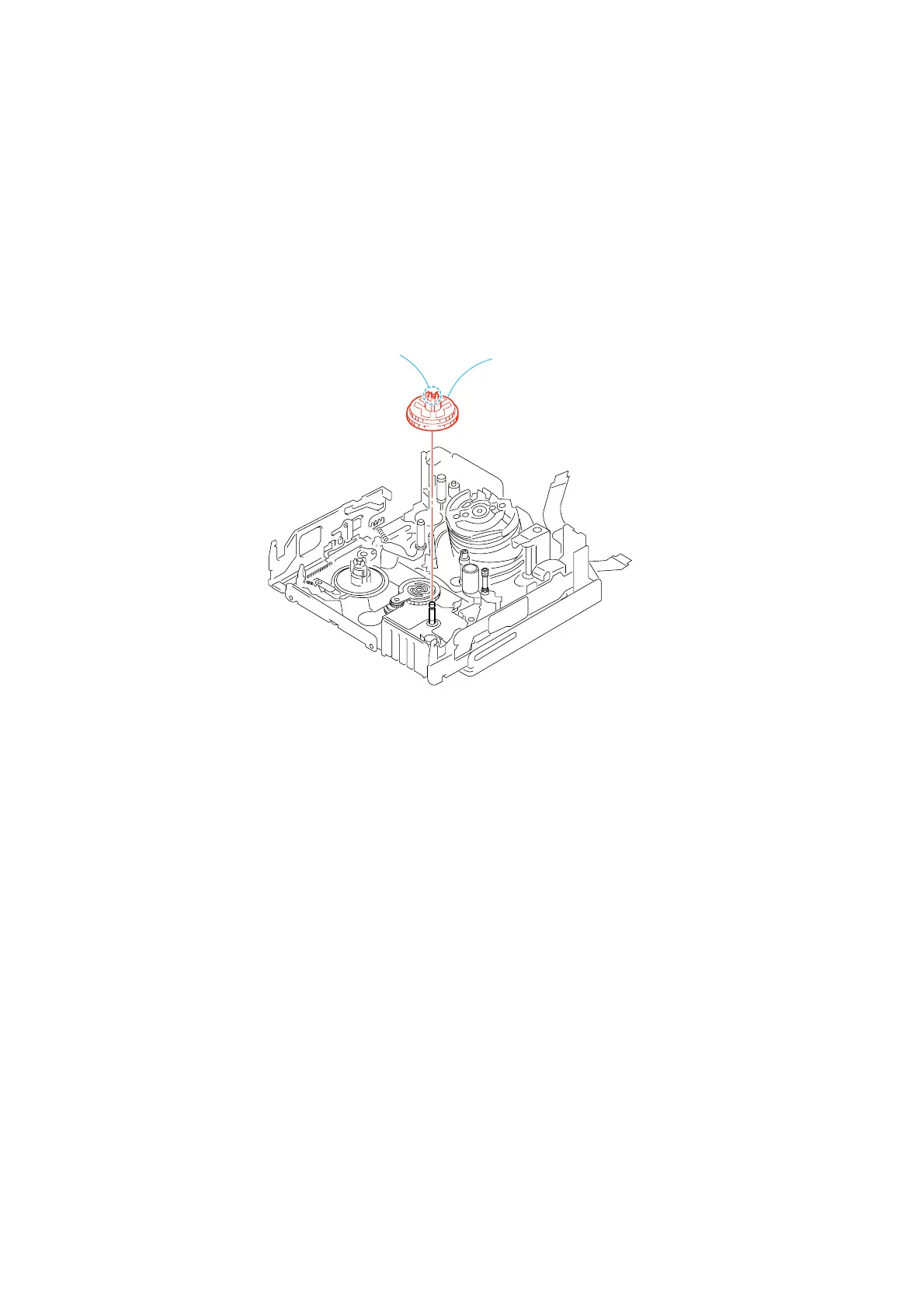

1. Removal procedure
1) Remove the T reel table assy 1, averting three claws A.
2. Attachment procedure
1) Confirm that the supplied part is really the T reel table assy 1.
Insert the T reel table assy 1 into the T reel shaft. Install the T
reel table assy 1 and lock it at the position where you can
hear the snapping sound. You can find the locking position by
rotating the T reel table assy 1.
1 T reel table assy
Three claws
A
