DV MECHANICAL ADJUSTMENT MANUAL VII
3-15.TG7
1. Removal procedure
1) Remove the TG7 nut 1 by turning it in the direction of the
arrow.
2) Remove the TG7 2 and compression coil spring 3 from the
TG7 arm block assy.
2. Attachment procedure
1) Install the compression coil spring 3 and TG7 2 in the TG7
shaft of the TG7 arm block assy.
2) Install the TG7 nut 1 by turning it in the opposite direction of
the arrow.

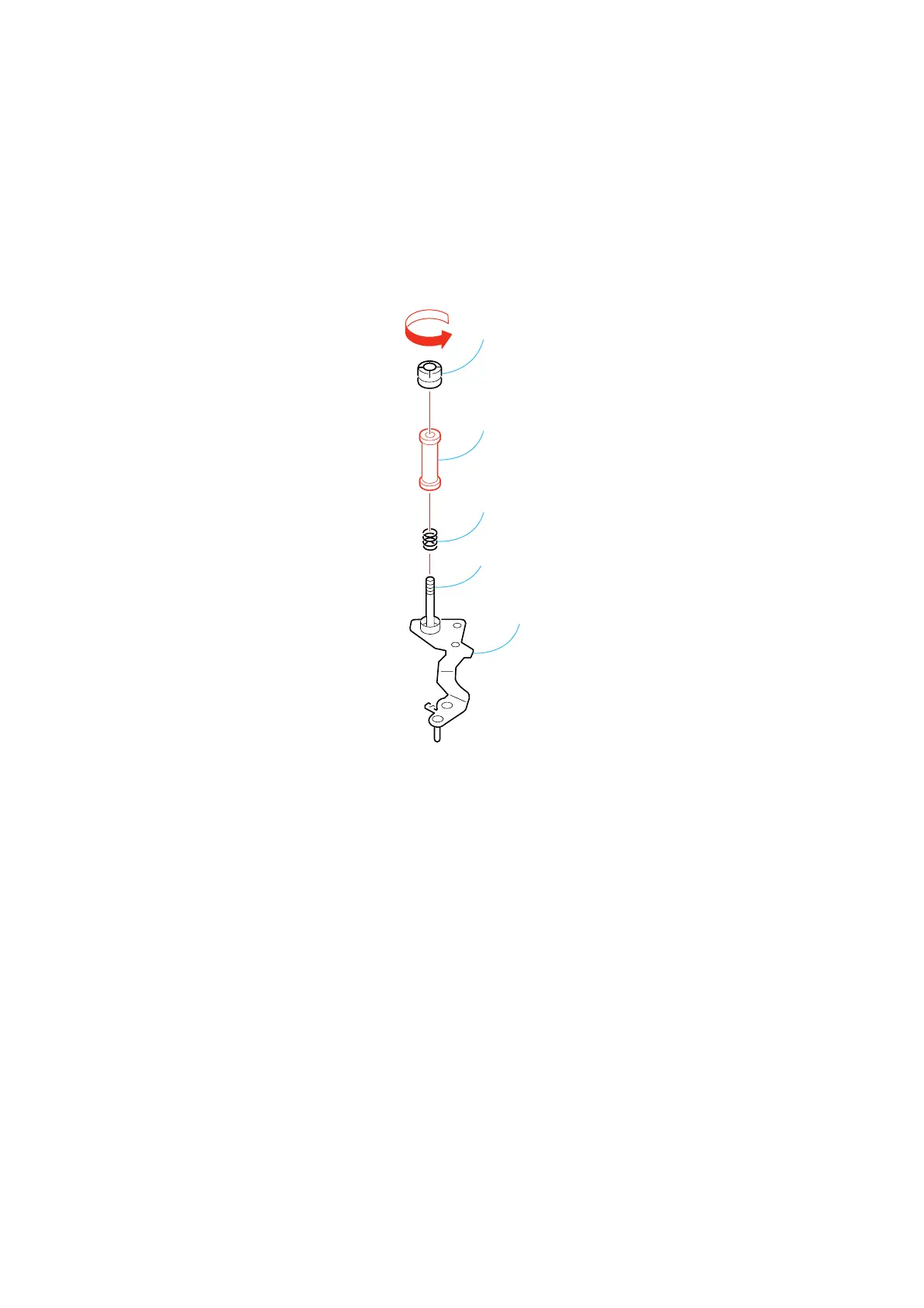

1 TG7 nut
2 TG7
TG7 arm assy
TG7 shaft
3 Compression spring (TG7
)
