DV MECHANICAL ADJUSTMENT MANUAL VII

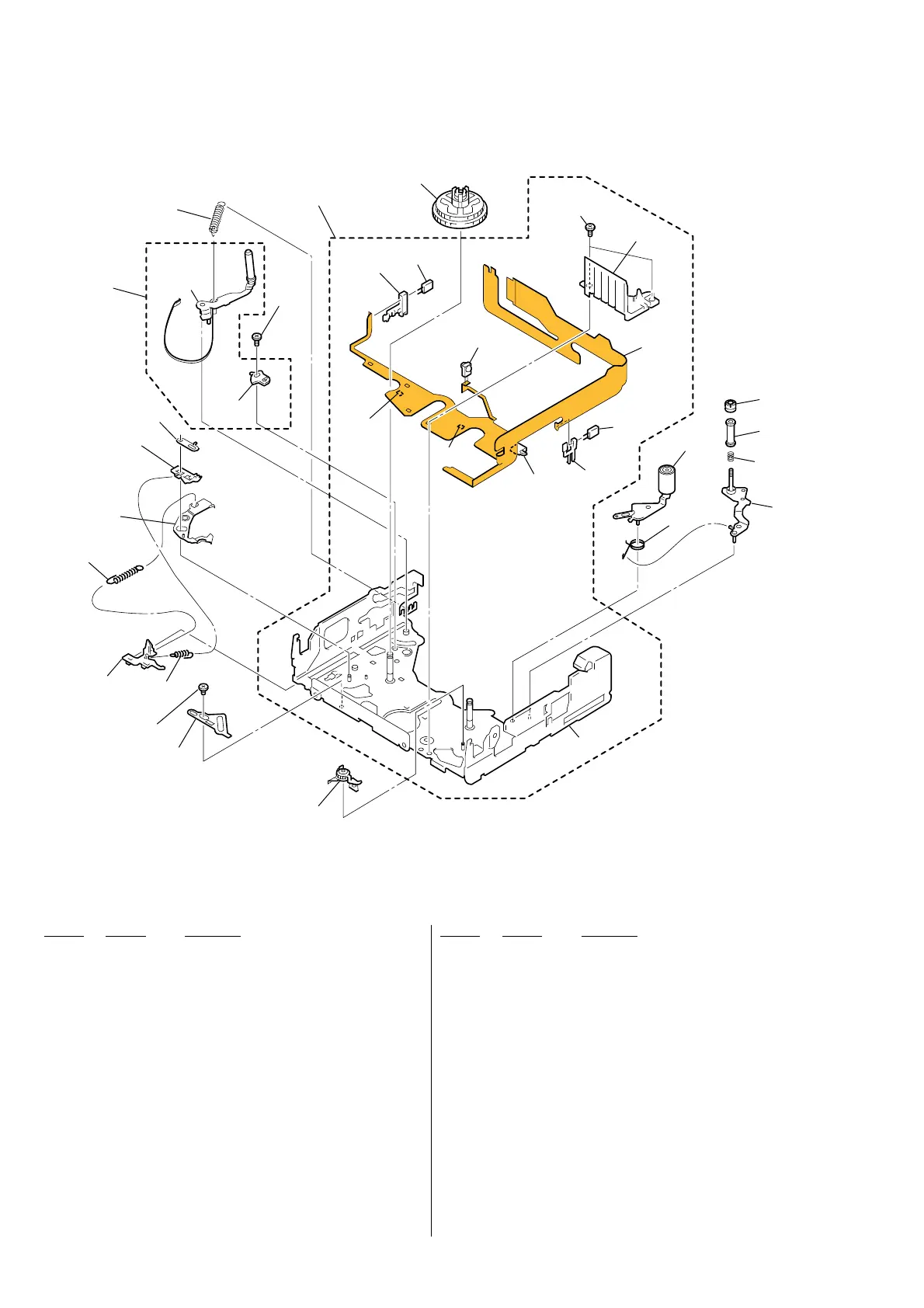

5-2. LS Chassis Block Assembly
ns : not supplied
H901
D901
Q901
Q902
MIC902
S903
H902
FP-468
(Note)
751
753
754
755
756
757
758
760
773
761
762
763
764
765
766
767
768
769
770
771
772
752
774
ns
ns
Note: FP-468 is included in the LS block assy and is attached
to chassis by hot-press.
Because installation of FP-468 requires a very high
accuracy, FP-468 is not supplied as an independent
service parts.
759
751 A-7095-402-B BRAKE (T) BLOCK ASSY
752 3-079-241-01 PLATE, LS CAM
753 3-075-097-11 SCREW (M1.4X1.4), SPECIAL HEAD
754 3-079-246-01 SPRING (RELEASE RACK),EXTENSION
755 3-079-248-01 POSITIONING (S), CASSETTE
756 3-079-244-01 SPRING (ULE), EXTENSION
757 X-3952-932-1 BRAKE ASSY, ULE
758 3-079-245-01 RACK (S), RELEASE
759 3-079-247-01 BRAKE (S)
760 3-059-090-11 SCREW (M1.4X2.5), SPECIAL HEAD
761 3-079-242-01 SPRING, TENSION (TENSION REGULATOR)
762 A-7095-401-A LS BLOCK ASSY
763 3-079-267-01 HOLDER (S), SENSOR
764 3-079-268-01 HOLDER (T), SENSOR
765 X-3952-936-2 TABLE ASSY, S REEL
766 3-703-816-15 SCREW (M1.4), SPECIAL HEAD
767 3-079-243-01 SPRING (PINCH RETURN), TORSION
768 X-3952-934-1 ARM ASSY, PINCH
769 3-052-062-02 NUT, TG7
770 3-079-219-02 TG7
771 3-081-591-01 SPRING, COMPRESSION (TG7)
772 X-3952-935-3 ARM ASSY, TG7
773 3-079-237-01 ADJUSTOR, BAND
774 A-7095-403-B TG2 ARM BLOCK ASSY
D901 6-500-471-01 DIODE GL453E00000F (TAPE LED)
H901 8-719-067-74 ELEMENT, HOLE HW-105A-CDE-T (S REEL)
H902 8-719-067-74 ELEMENT, HOLE HW-105A-CDE-T (T REEL)
MIC902 1-817-175-12 PIN, CONNECTOR (WITH DETECTION SWITCH)
S903 1-529-566-51 SWITCH, PUSH (1 KEY) (C.C. DOWN)
Q901 6-550-402-01 TRANSISTOR PT4850FE000F (TAPE END)
Q902 6-550-402-01 TRANSISTOR PT4850FE000F (TAPE TOP)
Ref. No. Part No. Description Ref. No. Part No. Description
