3-24.Conversion Gear
1. Removal procedure
1) Remove the belt 1 from the conversion gear.
2) Remove the conversion gear 2 from the conversion gear shaft.
2. Attachment procedure
1) Apply grease to the conversion gear shaft.
Amount of grease: a ball of grease of 1.0 mm diameter
2) Install the conversion gear 2 in the conversion gear shaft.
3) Hook the belt 1 on the conversion gear in a slant angle and
install it by rotating the conversion gear with fingertip.
• The belt must not override on the capstan motor block assy.
• When installing the belt, the belt must not have any twisting,
dust, scar or grease must not be splashed on belt.

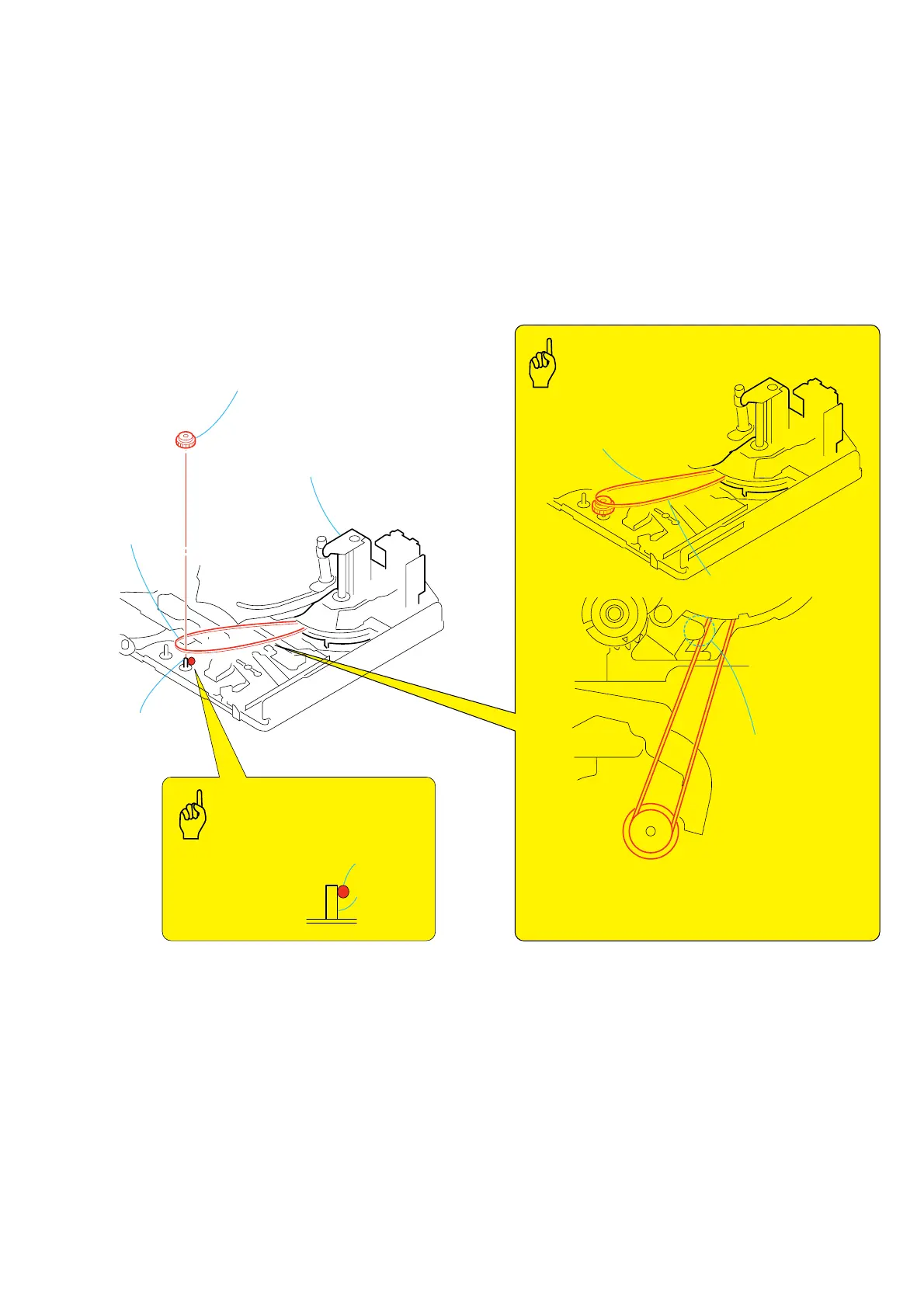

Apply grease
Apply Grease
2
Conversion gear
1
Belt
Apply grease when installing it.
Amount of grease:
a ball of grease of 1.0 mm
diameter
Hook the belt
1
on the
conversion gear in a slant angle.
Do not remove the capstan motor assy.
The belt must not be twisted.
The belt must not override on
the capstan motor block assy.
Conversion
gear shaft
Conversion
gear shaft
Points to be noted
Key Points in Re-assembling
BELT
