— 24 —
DV MECHANICAL ADJUSTMENT MANUAL VII

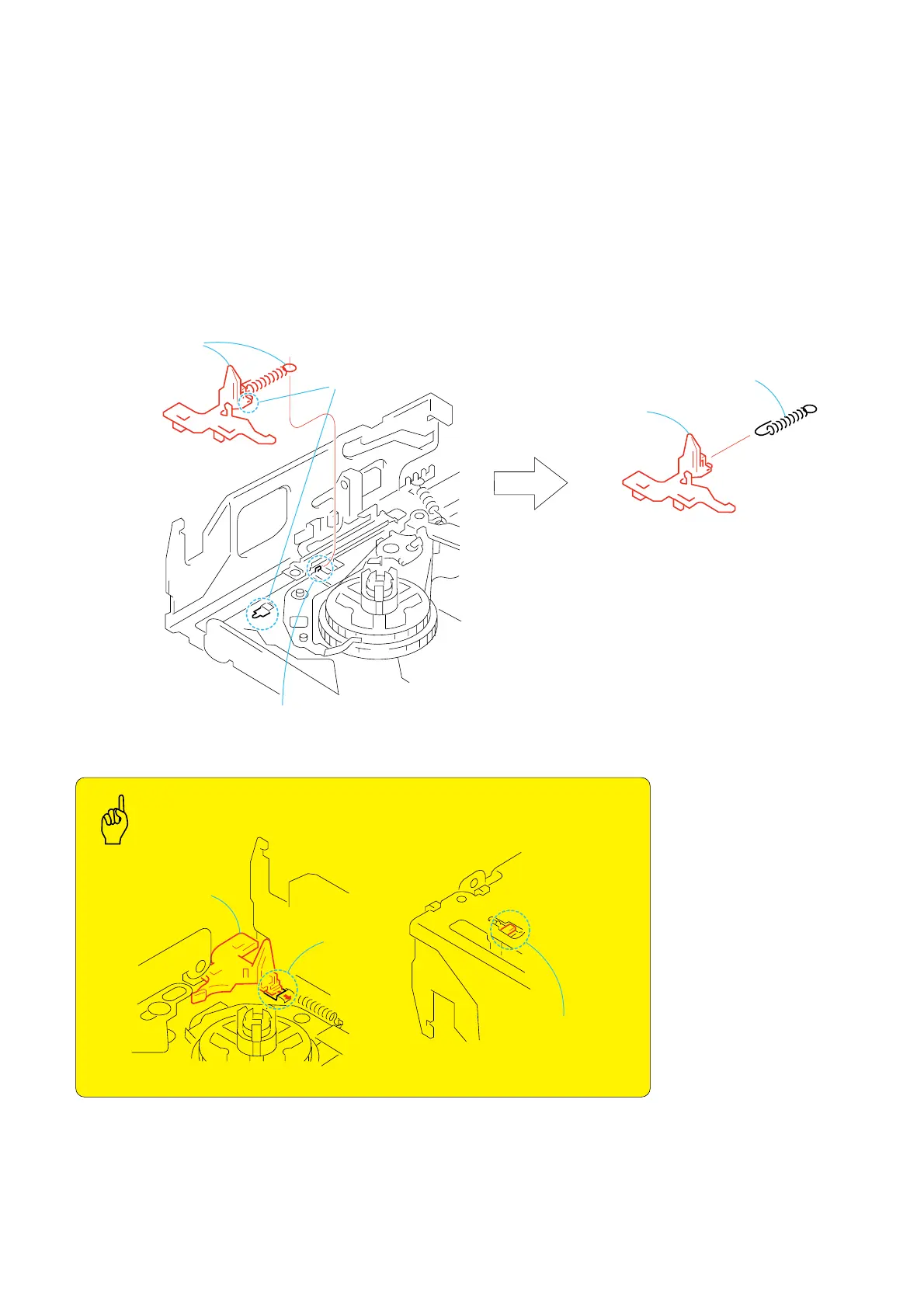

3-13.Cassette Positioning (S)
1. Removal procedure
1) Remove the tention spring (ULE brake) 2 from the hook B
of ULE brake assy.
2) Slide the cassette positioning (S), then remove the cassette
positioning (S) and tension spring (ULE brake) 1 all together
at the same time.
3) Remove the tension spring (ULE brake) 2 from the cassette
positioning (S) 3.
2. Attachment procedure
1) Hook the tension spring (ULE brake) 2 on the cassette
positioning (S) 3 with tweezers.
2) Hold the cassette positioning (S) 3 with tweezers and insert
the top tip of the claw into the LS chassis block assy A. Lock
it by sliding it in.
3) Install the other end of the tension spring (ULE brake) 2 on
the hook B.
Confirm the tip of
cassette positioning (S)
being inserted.
A
Claw
A
B
3
Cassette positioning (S)
Cassette positioning (S)
Key Points in Re-assembling
CASSETTE POSITIONING (S)
1
Cassette positioning (S),
Extension spring (ULE)
2
Extension spring
(ULE)
To Next Page
