Sony DCR-PC350 - Camera Section Adjustment; Preparations before Adjustment; List of Service Tools

6-4
DCR-PC350/PC350E
6-1. CAMERA SECTION ADJUSTMENT
1-1. PREPARATIONS BEFORE ADJUSTMENT
1-1-1. List of Service Tools
• Oscilloscope • Color monitor • Vectorscope
J-1 J-2 J-3
Filter for color
temperature
correction (C14)
J-6080-058-A
ND filter 1.0
J-6080-808-A
ND filter 0.4
J-6080-806-A
ND filter 0.1
J-6080-807-A
Pattern box PTB-450
J-6082-200-A
or
Pattern box PTB-1450
J-6082-557-A
Color chart for
pattern box
For PTB-450:
J-6020-250-A
For PTB-1450:
J-6082-559-A
Siemens star chart
J-6080-875-A
Clear chart for
pattern box
For PTB-450:
J-6080-621-A
For PTB-1450:
J-6082-560-A
Mini pattern box
J-6082-353-B
Adjustment remote
commander
(RM-95 upgraded)
J-6082-053-B
Camera table
J-6082-384-A

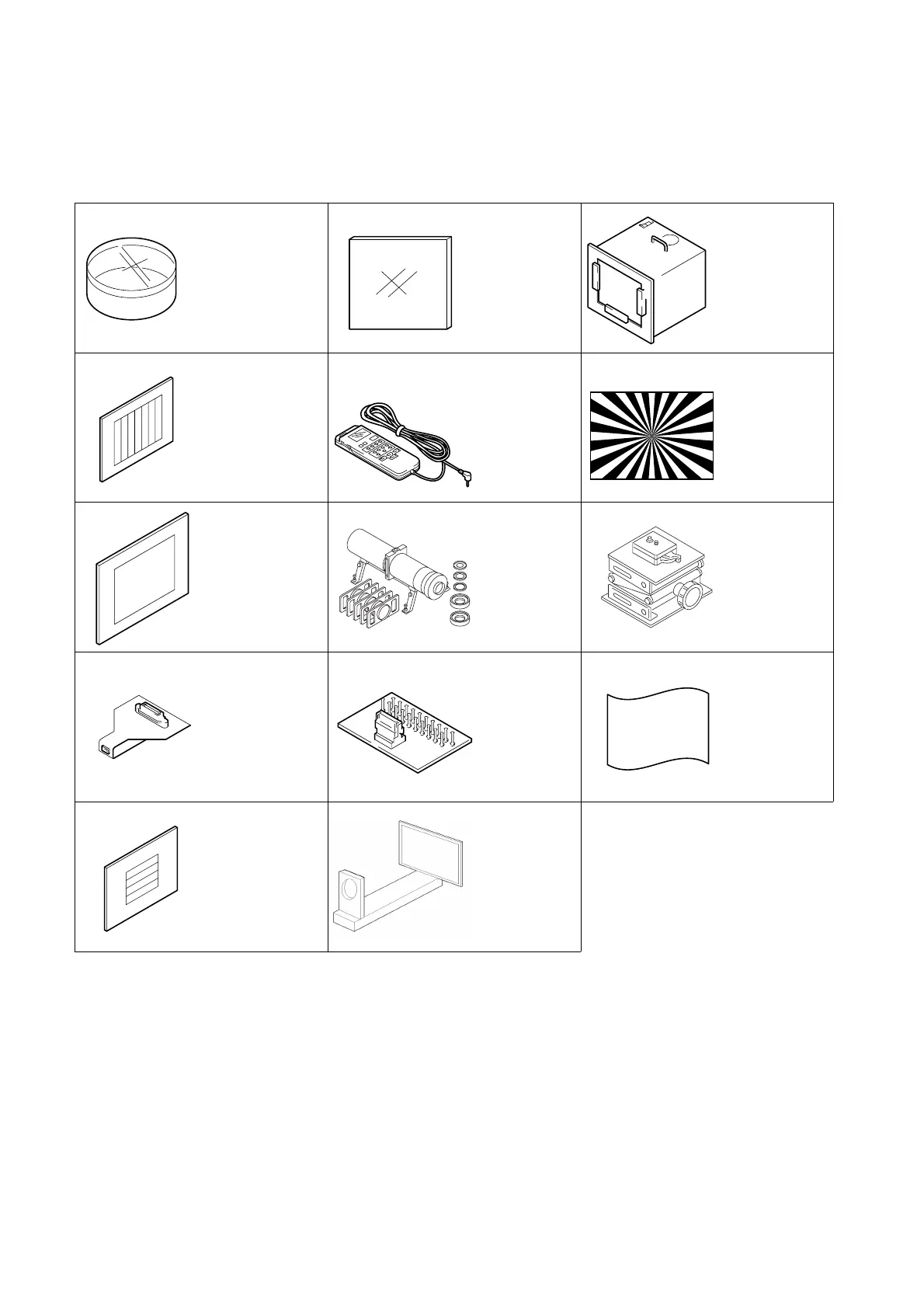

Fig. 6-1-1.
Backgorund
paper
J-2501-130-A
J-4 J-5 J-6
J-7 J-8 J-9
J-10 J-11 J-12
J-13 J-14
CPC-6 flexible jig
J-6082-370-C
CPC-6 terminal
board jig
J-6082-371-A
Mixed color
compensation
chart
For PTB-450:
J-6082-558-A
For PTB-1450:
J-6082-561-A
Flange back
adjustment jig
J-6082-563-A
Ver 1.1 2004. 12
