DCR-PC350/PC350E
HELP
HELP

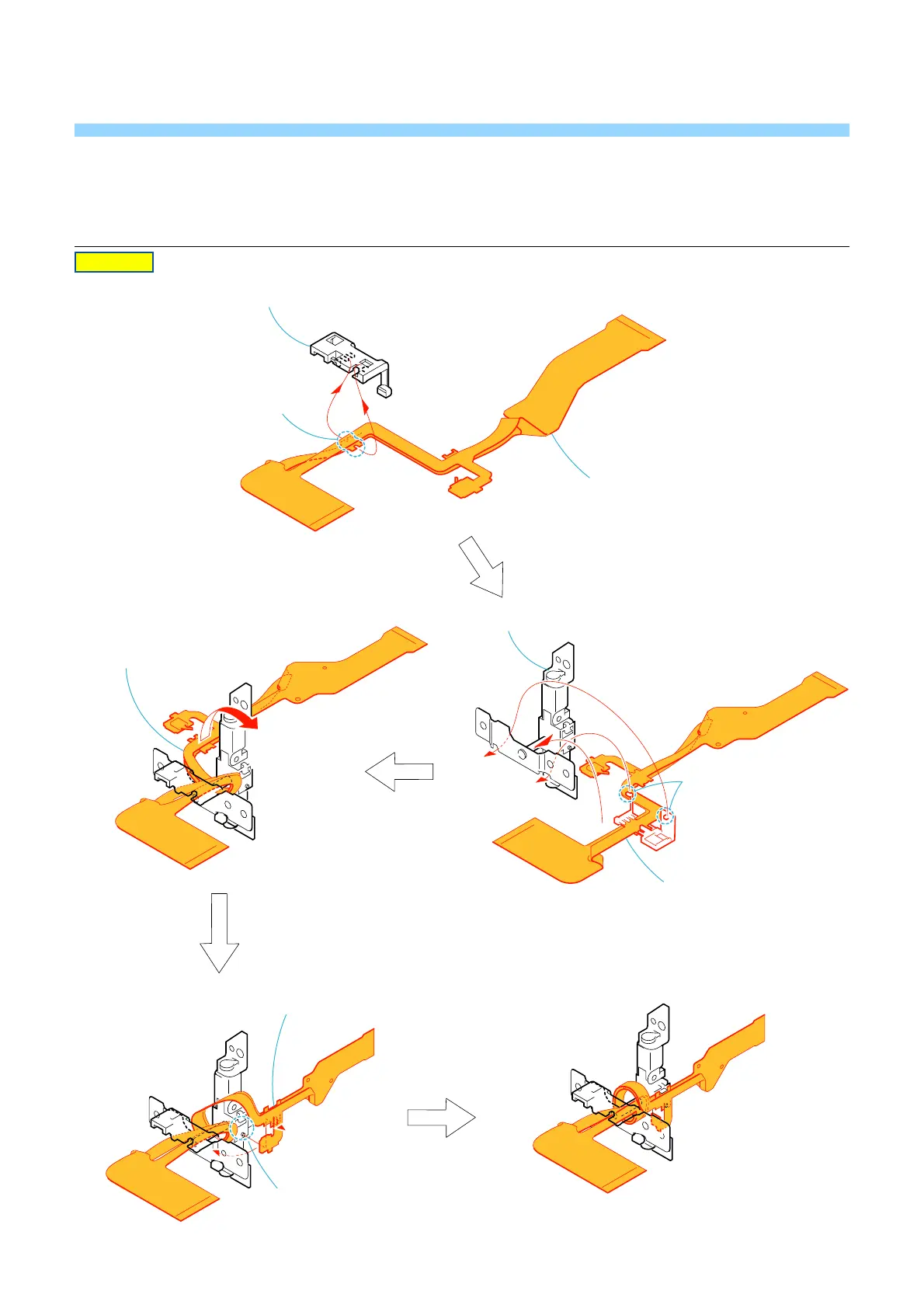

Sheet attachment positions and procedures of processing the flexible boards/harnesses are shown.
2
FP-994 flexible board
1
Hinge (63) assembly
Craws
Craws
Adhesive surface
1
FP-994 flexible board
2
Flexible clamp
3
Twist the FP-994
flexible board.
4
Attach the adhesive surface.
HELP 01
