5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
DCR-PC350/PC350E

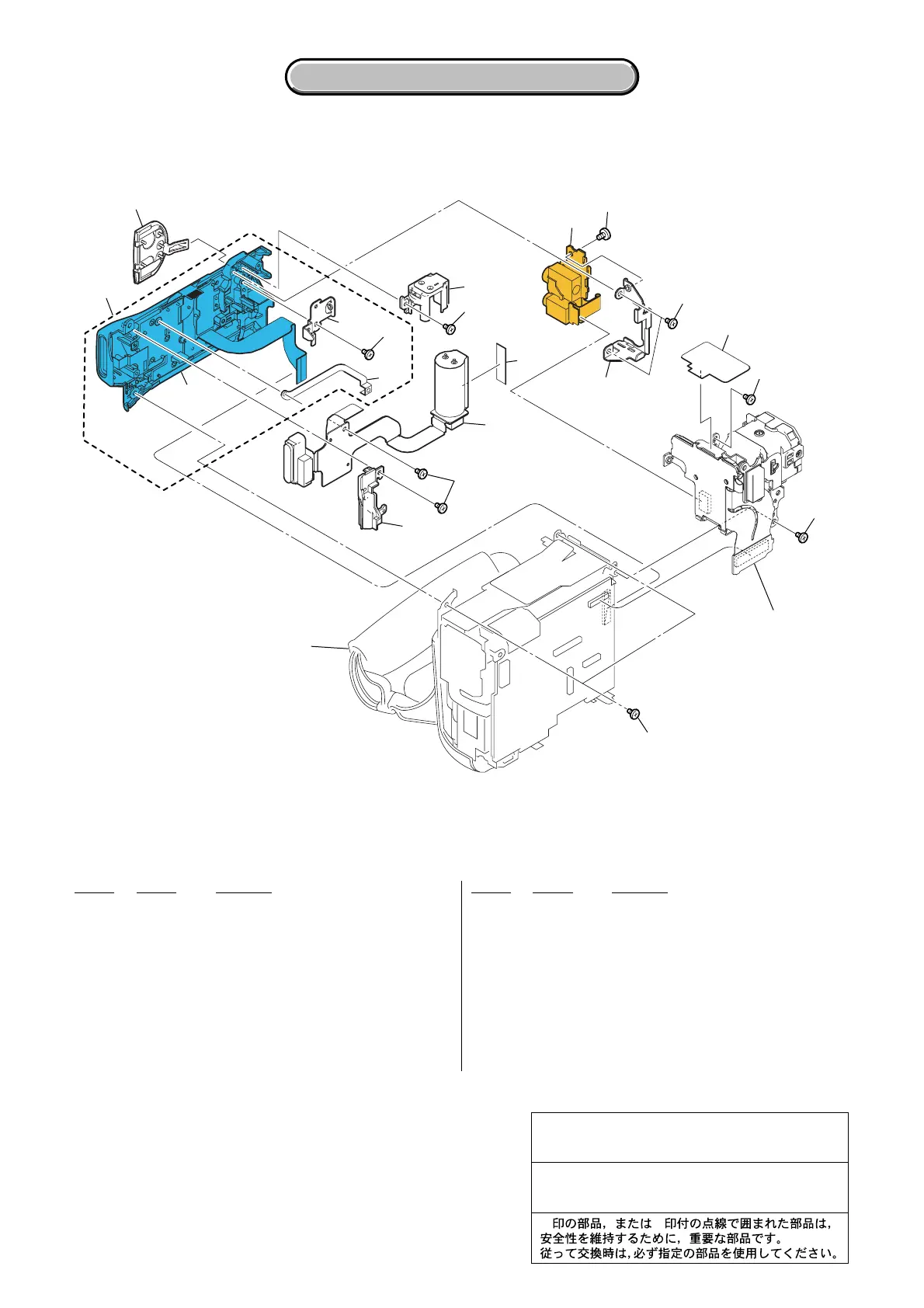

5-1-3. FK SECTION
Ref. No. Part No. Description Ref. No. Part No. Description
ns : not supplied
101 3-080-204-01 SCREW, TAPPING, P2
102 2-148-561-01 COVER, STROBOSCOPE (BLACK)
102 2-148-561-11 COVER, STROBOSCOPE (SILVER)
0 103 1-478-839-11 STROBOSCOPE UNIT (FL7450)
104 1-478-835-11 SWITCH BLOCK, CONTROL (FK7450)
(SILVER)(J)
104 1-478-835-21 SWITCH BLOCK, CONTROL (FK7450) (SILVER)
(EXCEPT J)
104 1-478-835-31 SWITCH BLOCK, CONTROL (FK7450)
(BLACK)(J)
104 1-478-835-41 SWITCH BLOCK, CONTROL (FK7450) (BLACK)
(EXCEPT J)
105 X-2022-583-1 COVER (L) ASSY, JACK (BLACK)
105 X-2023-169-1 COVER (L) ASSY, JACK (SILVER)
106 X-2022-807-1 HOLDER, CAPACITOR ASSY
107 A-1070-201-A FP-995 BOARD, COMPLETE
108 3-989-735-11 SCREW (M1.7), LOCK ACE, P2
109 2-148-562-01 FRAME, JK
ns
ns
ns
108
101
109
108
101
101
MD section
(See page 5-7)
101
101
105
102
ns
107
101
104
103
ns
106
EVF section
(See page 5-6
The components identified by mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number specified.
Les composants identifiés par une marque 0 sont critiques pour
la sécurité.
Ne les remplacer que par une pièce portant le numéro spécifié.
0 0
Ver 1.1 2005. 09
