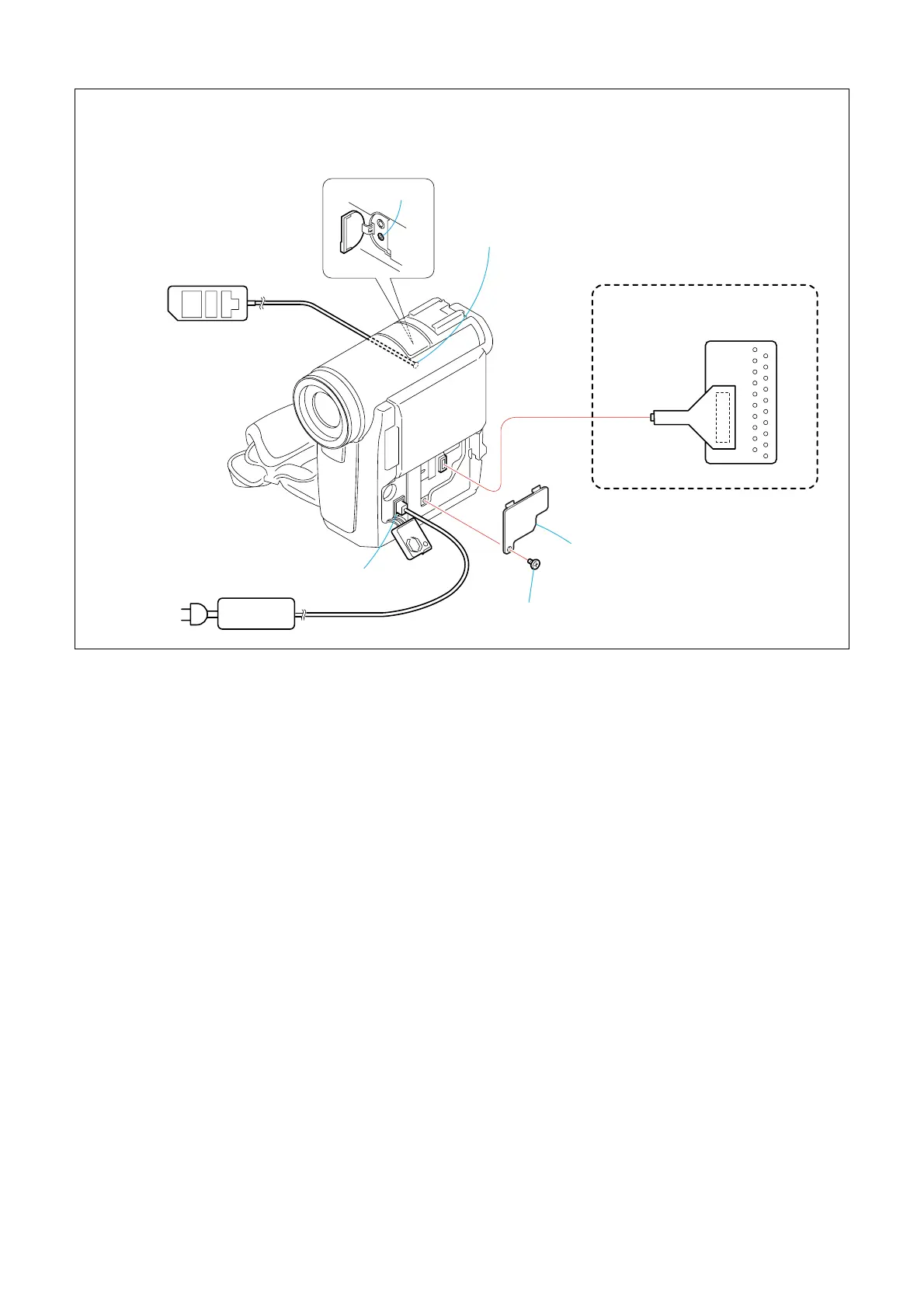

Fig. 6-1-3.
AC power
adaptor
AC IN
CPC-6 terminal board jig
(J-6082-371-A)
CPC-6 flexible jig
(J-6082-370-C)
LANC jack
Screw (M1.7x2.5)
black
DC IN connector
CPC lid
[CONNECTION OF EQUIPMENT]
For tape path adjustment
LANC jack
Adjustment remote
commander
(RM-95)
