HCD-GT3D
5
NOTE OF REPLACING THE IC001, IC002, IC101, IC105,
IC106, IC301, IC302 AND IC303 ON THE MOTHERBOARD
BOARD
IC001, IC002, IC101, IC105, IC106, IC301, IC302 and IC303
on the MOTHERBOARD board cannot exchange with single.
When these parts on the MOTHERBOARD board are damaged,
exchange the entire mounted board.
NOTE OF REPLACEMENT OF THE MS-476 BOARD
When the MS-476 board is defective, exchange the entire
LOADING COMPLETE ASSY (T).
RELEASING THE DISC TRAY LOCK
The disc tray lock function for the antitheft of an demonstration
disc in the store is equipped.
Releasing Procedure:
1. Press [\/1] button to turn the power on.
2. Press [FUNCTION] button and turn the [MULTI CONTROL]
knob to select “DVD/CD” function, then press [ENTER]
button.
3. Press the [ENTER] button and [VOCAL FADER] button
simultaneously and hold down for around 3 seconds.
4. The message “UNLOCKED” is displayed and the disc tray is
unlocked.
Note: When “LOCKED” is displayed, the slot lock is not released by
turning power on/off with the [\/1] button.
NOTE OF REPLACING THE IC1001 ON THE DAMP
BOARD AND THE COMPLETE DAMP BOARD
When IC1001 on the DAMP board and the complete DAMP board
are replaced, it is necessary to spread the compound between parts
and heat sink.
Part No. Description
7-300-009-67 THERMAL COMPOUND (TIG2000)

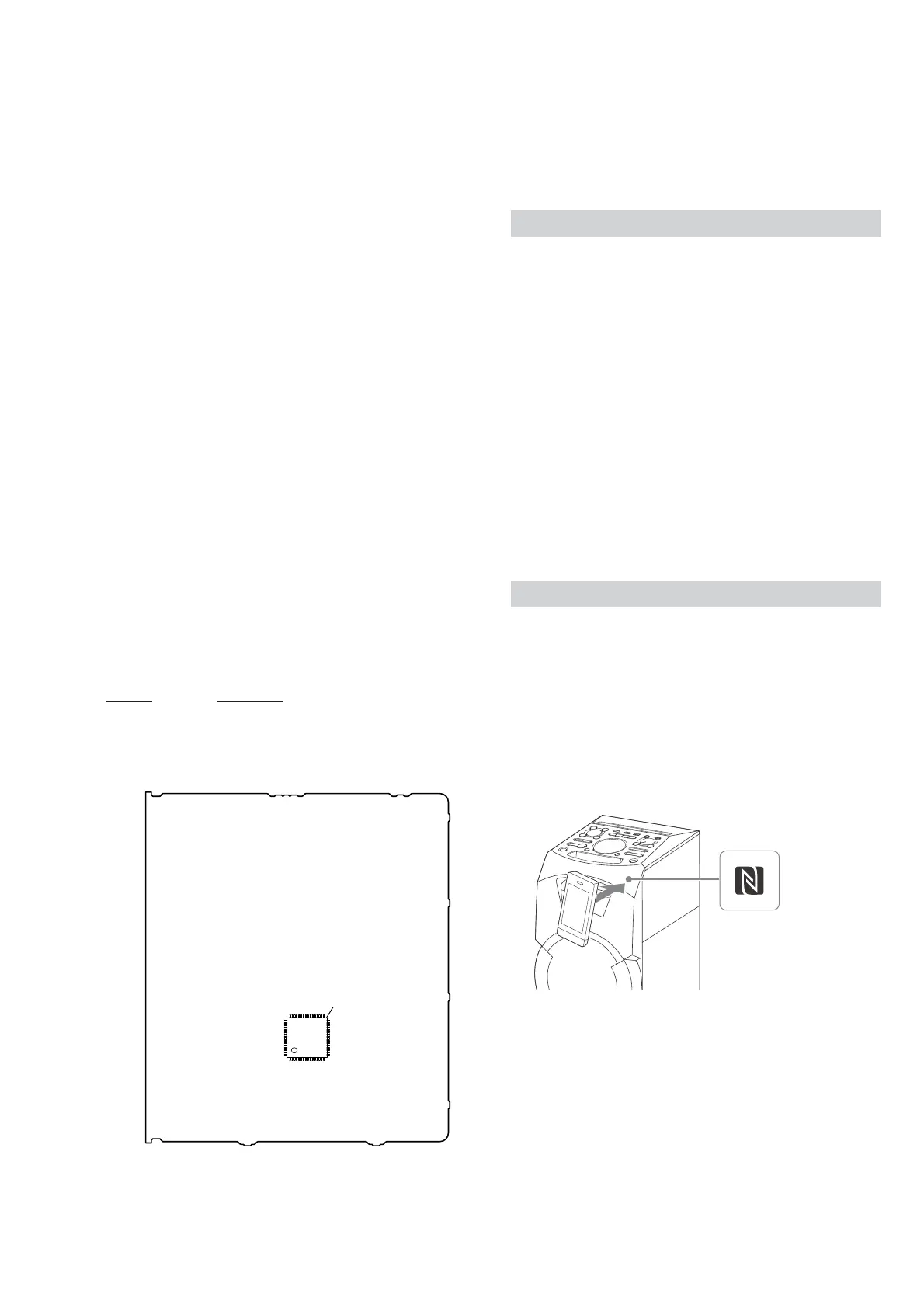

Spread the compound referring to the fi gure below.
thermal compound (TIG2000)
– DAMP Board (Component Side) –
IC1001
NOTE OF REPLACING MOTHERBOARD BOARD OR
BLUETOOTH MODULE OR RC-S730 (WW) BOARD
When the MOTHERBOARD board or BLUETOOTH module
or RC-S730 (WW) board are replaced, please execute the below
service mode.
Pairing this system with a
Bluetooth
device
1. Press the [\/1] button to turn the power on.
2. Place the Bluetooth device within 1 meter (3 feet) from the
system.
3. Press BLUETOOTH on the unit to select Bluetooth function.
“BT AUDIO” appears in the display panel.
4. Hold down BLUETOOTH on the unit for 2 seconds or more.
“PAIRING” fl ashes in the display panel.
5. Perform the pairing procedure on the Bluetooth device.
6. Select the model number of the unit on the display of the
Bluetooth device.
For example, select “SONY : MHC-GT3D”. If passkey is
required on the Bluetooth device, enter “0000”.
7. Perform the Bluetooth connection on the Bluetooth device.
8. When pairing is completed and the Bluetooth connection is
established, the Bluetooth device name appears in the display
panel.
9. To cancel pairing operation, hold down BLUETOOTH on the
unit for 2 seconds or more until “BT AUDIO” appears in the
display panel.
Connecting with a smartphone by one touch (NFC)
Note: The operation in this mode must use a NFC-compatible smartphone
(Smartphones with a built-in NFC function [OS: Android 2.3.3 or
later, excluding Android 3.x])
1. Press the [\/1] button to turn the power on.
2. Download and install the app “NFC Easy Connect”.
Download the free Android app from Google Play by searching
for “NFC Easy Connect”.
3. Start the app “NFC Easy Connect” on the smartphone.
Make sure that the application screen is displayed.
4. Touch the smartphone to the N-Mark on the system until the
smartphone vibrates.
Complete the connection by following the instructions
displayed on the smartphone.
5. When pairing is completed and the Bluetooth connection is
established, the Bluetooth device name appears in the display
panel.
Ver. 1.1
