ICP-X7000
1-74 (E)
(6) Enter a value in [IP Address] as the IP address of IPv6.
(7) Enter a value (8 to 126) in [Prefix Length] as the prefix length of IPv6.
(8) Enter the default gateway of IPv6 in [Default Gateway].
(9) Select the DNS connection mode.
. OFF: DSN is not used.
. MANUAL: Manual setting mode. Domain Name and Server can be entered only in this mode.
. DHCP: DHCP server auto acquisition mode. Values acquired by the DHCP server are dis-
played in the Domain Name and Server columns respectively.
n
The following restrictions are provided depending on combinations of IPv4 Mode and IPv6 Mode.
. When IPv4 and IPv6 are OFF: Always OFF
. When IPv4 or IPv6 is DHCP: Always DHCP
. When IPv4 and IPv6 are other than DHCP: OFF or MANUAL selectable
When the “MANUAL” connection mode is selected, go to step (10).
When the “OFF” or “DHCP” connection mode is selected, go to step (12).
(10) Enter the domain name in [Domain Name].
(11) Enter the IP address of IPv4 or IPv6 in [Server].
(12) Click [Apply].
The settings are stored.

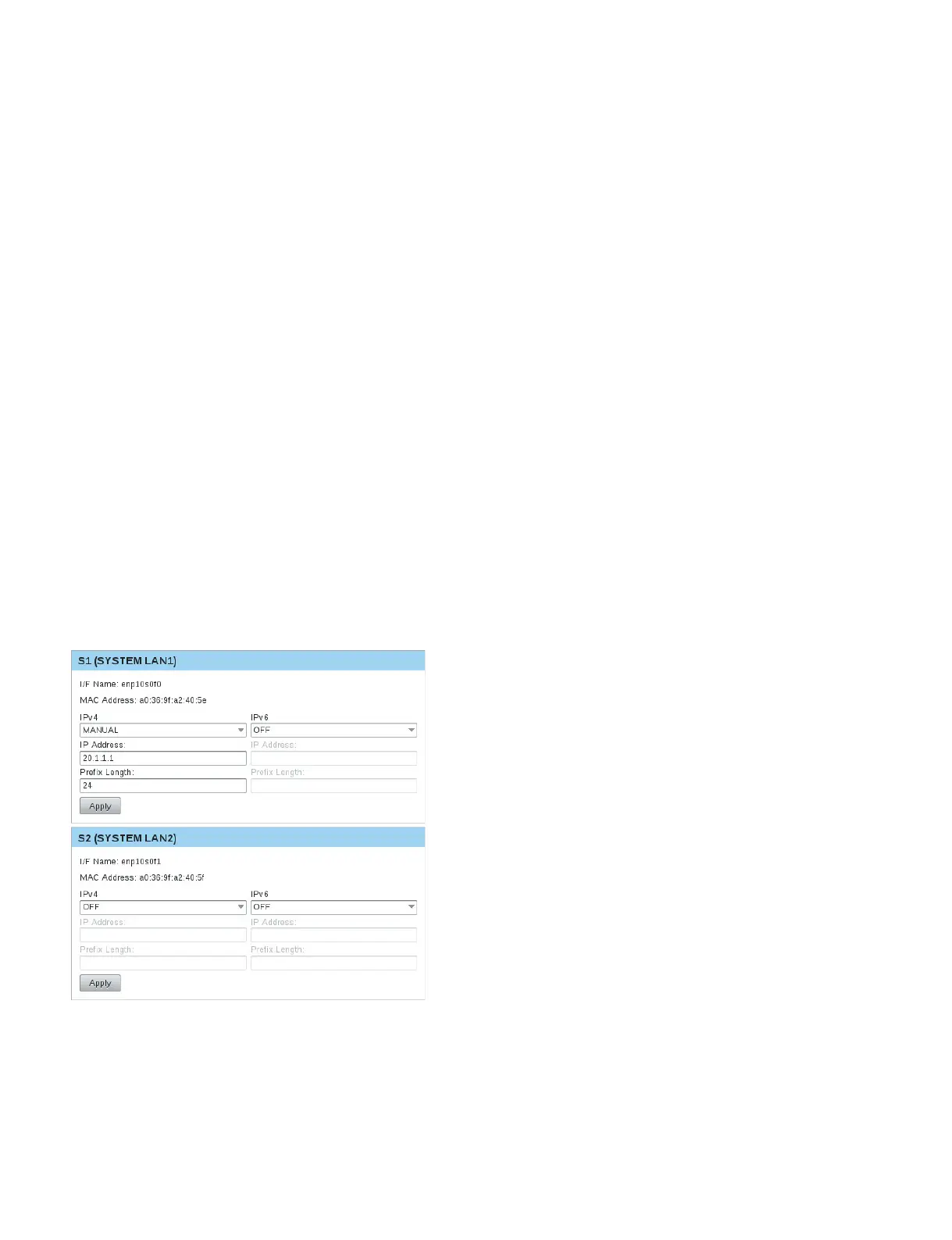

4. Make S1 (SYSTEM LAN1) and S2 (SYSTEM LAN2) settings.
t
This step is not necessary when the network card is not installed.
Set the same items for S1 (SYSTEM LAN1) and S2 (SYSTEM LAN2).
(1) Select the IPv4 connection mode.
. OFF: IPv4 is not used.
. MANUAL: Manual setting mode. IP Address and Prefix Length can be entered only in this mode.
. DHCP: DHCP server auto acquisition mode. Values acquired by the DHCP server are dis-
played in the IP Address and Prefix Length columns respectively.
When the “MANUAL” connection mode is selected, go to step (2).
When the “OFF” or “DHCP” connection mode is selected, go to step (4).
To Next Page
