ICP-X7000
2-2 (E)
Installation
t
. Each operation module is connected to the PIF-53 board with a fine-wire coaxial cable for each row. In
case a blank panel is attached to the installation location, remove all the operation modules to the left of
the installation location.
. The following describes the procedure for replacing the right-end operation module as an example. The
same replacing procedure applies to other operation modules.
1. Remove all module covers on both sides of the operation module or the blank panel.
2. Loosen four screws (with stopper) securing the operation module or the blank panel.
3. Hold and remove the two front screws on both sides of the operation module or the blank panel. (When
installing the MKS-X7031TB, refer to “Installing the trackball” described later.)
4. Disconnect the fine-wire coaxial cable from the operation module to be replaced, and then remove the
operation module.

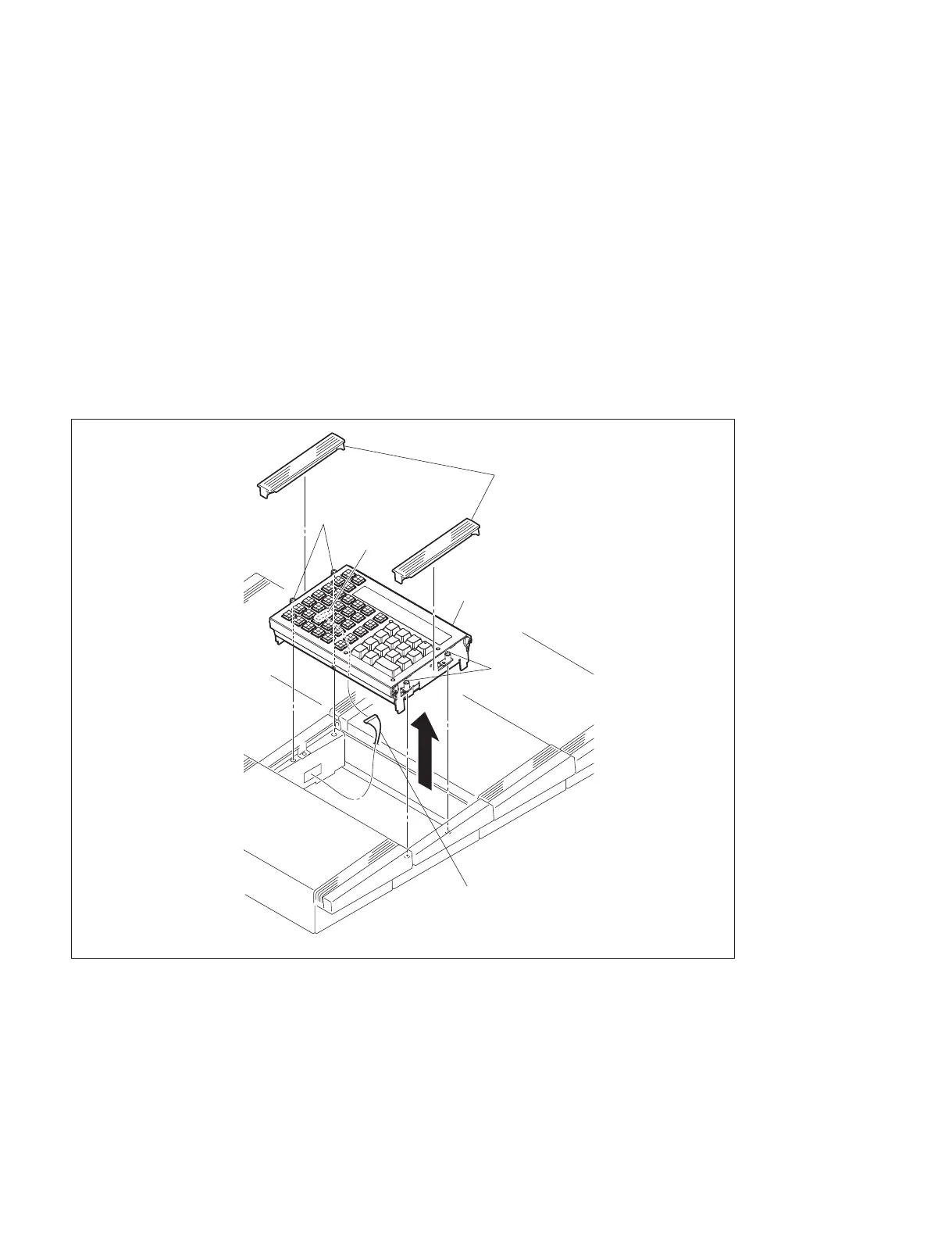

Module covers
Connector
Operation module
Screws
(with stopper)
Screws
(with stopper)
Fine-wire coaxial cable
To Next Page
