Sony PMW-EX280 - Page 27

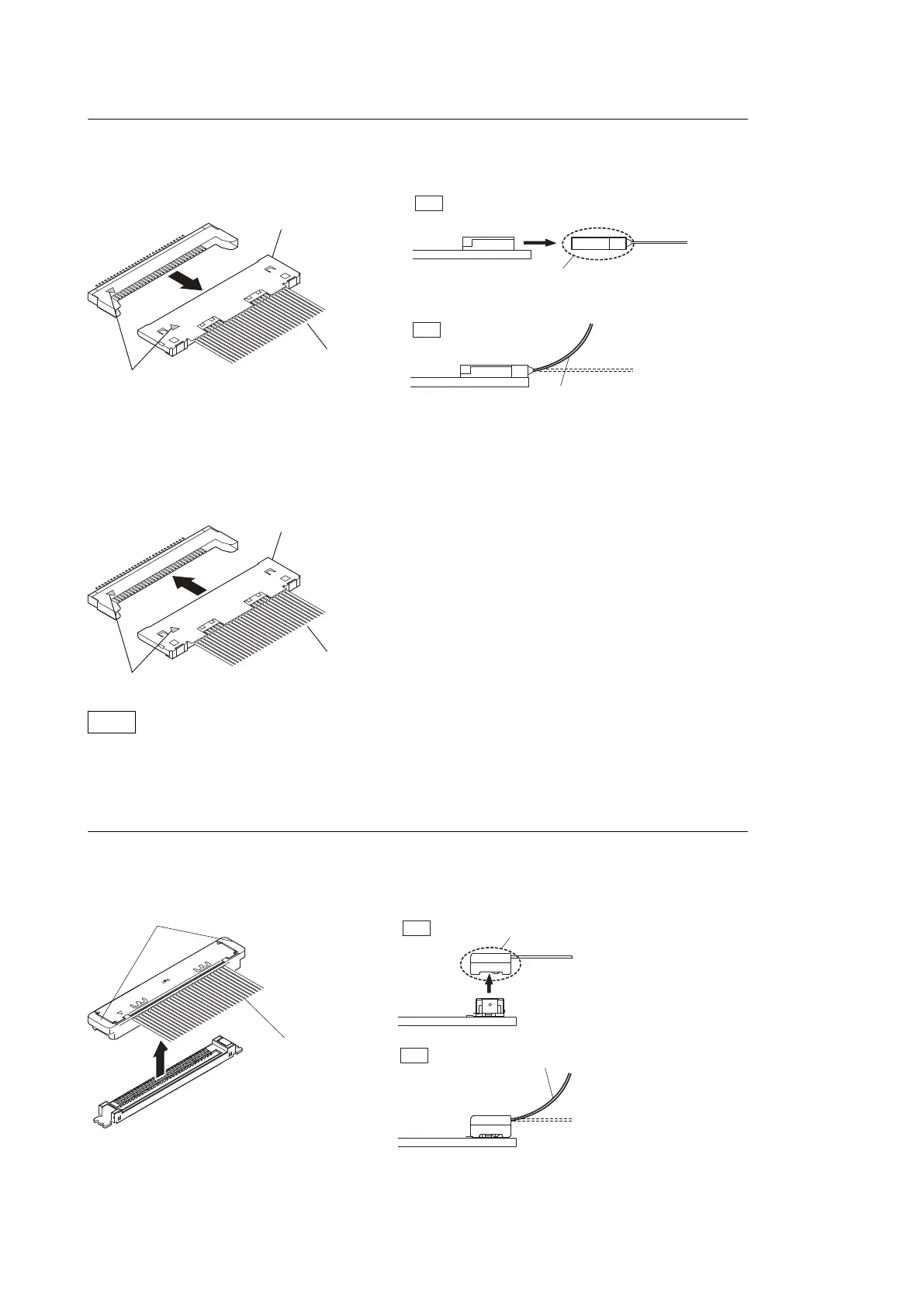

TypeA
Disconnecting
I
PX
Hold the connector to disconnect.
OK
Do not attempt to disconnect by
pulling the cable.
NG
Fine-wire coaxial cable
Connector
Polarity marks
1. Hold both sides of the fine-wire coaxial cable connector, and pull the connector straight to disconnect it.
Connecting
I
PX
Fine-wire coaxial cable
Connector
Polarity marks
Note
Firmly insert the connector straight as far as it will go.
1. Insert the connector straight matching the polarity marks.
Type B
Disconnecting
Fine-wire coaxial cable
Hold the connector to disconnect.
Do not attempt to disconnect by
pulling the cable.
OK
NG
Both sides of connector
1. Hold both sides of the fine-wire coaxial cable connector, and pull the connector straight to disconnect it.
PMW-200/PMW-EX280
1-17
