Sony PMW-EX280 - Control Switch Block (GZ92000); MIC Unit

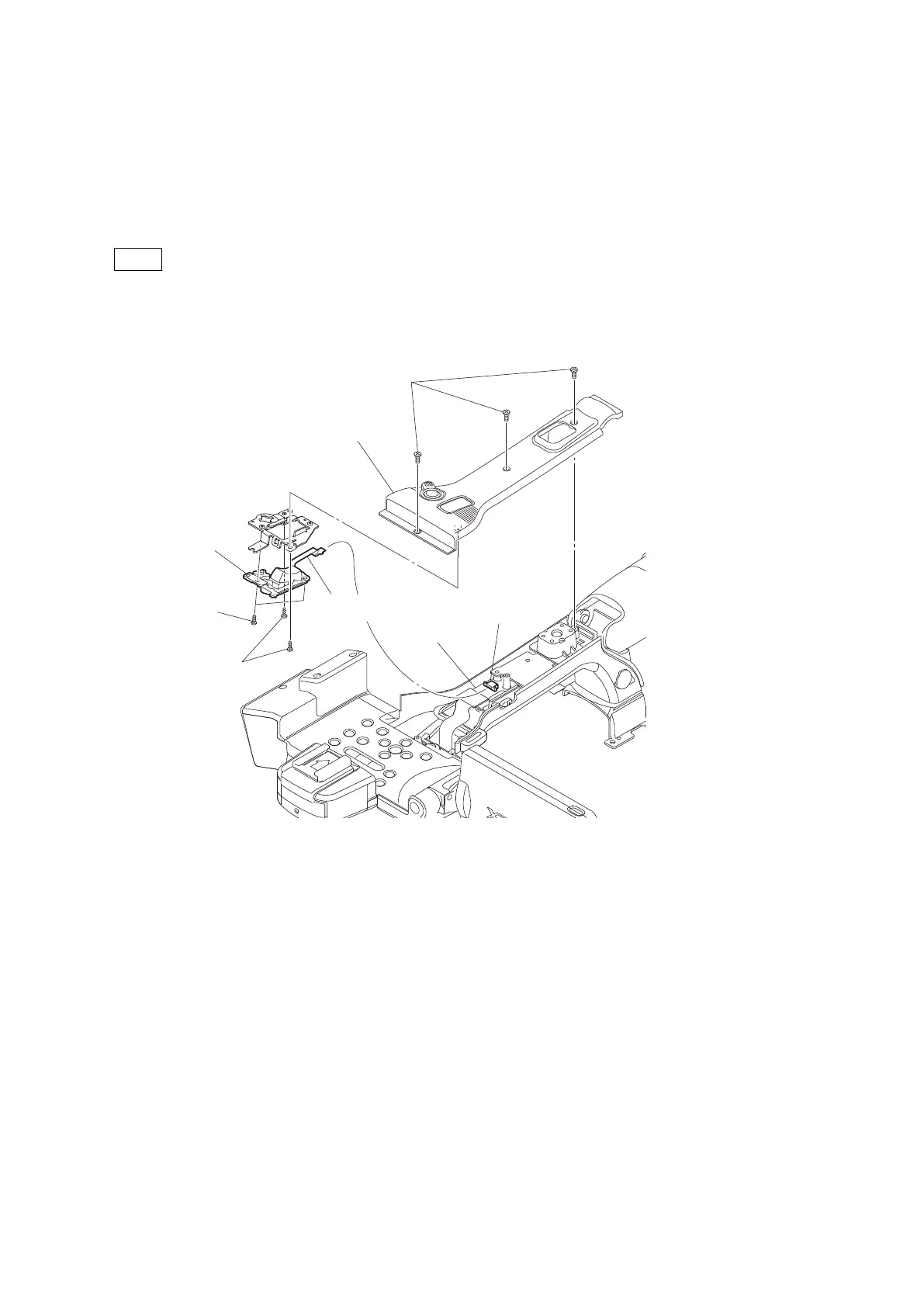

2-13-2. Control Switch Block (GZ92000)
Procedure
1. Remove the three precision screws (M2 x 5).
2. Disconnect the flexible board from the connector CN101 on the RM-238 board to detach the handle (upper) case
assembly.
Note
When connecting the flexible board, securely connect it to the connector CN101.
3. Remove the two tapping screws (2 x 5) and the two precision screws (M2 x 4) to detach the control switch block
(GZ92000).
Precision screws
(M2 x 5)
Precision screws
(M2 x 4)
Tapping screws
(2 x 5)
CN101
RM-238 board
Flexible board
Hanlde (upper) case assembly
Control switch block
(GZ92000)
4. Install the removed parts by reversing steps of removal.
2-13-3. MIC Unit
Preparation
1. Remove the handle (upper) case assembly.(Refer to “2-13-2. Control Switch Block (GZ92000)”.)
Procedure
1. Remove the two precision screws (M2 x 5) to detach the hinge (front) cover assembly.
PMW-200/PMW-EX280
2-25
